LEDUV395LA290XD6-XQ Banner Vision Accessories

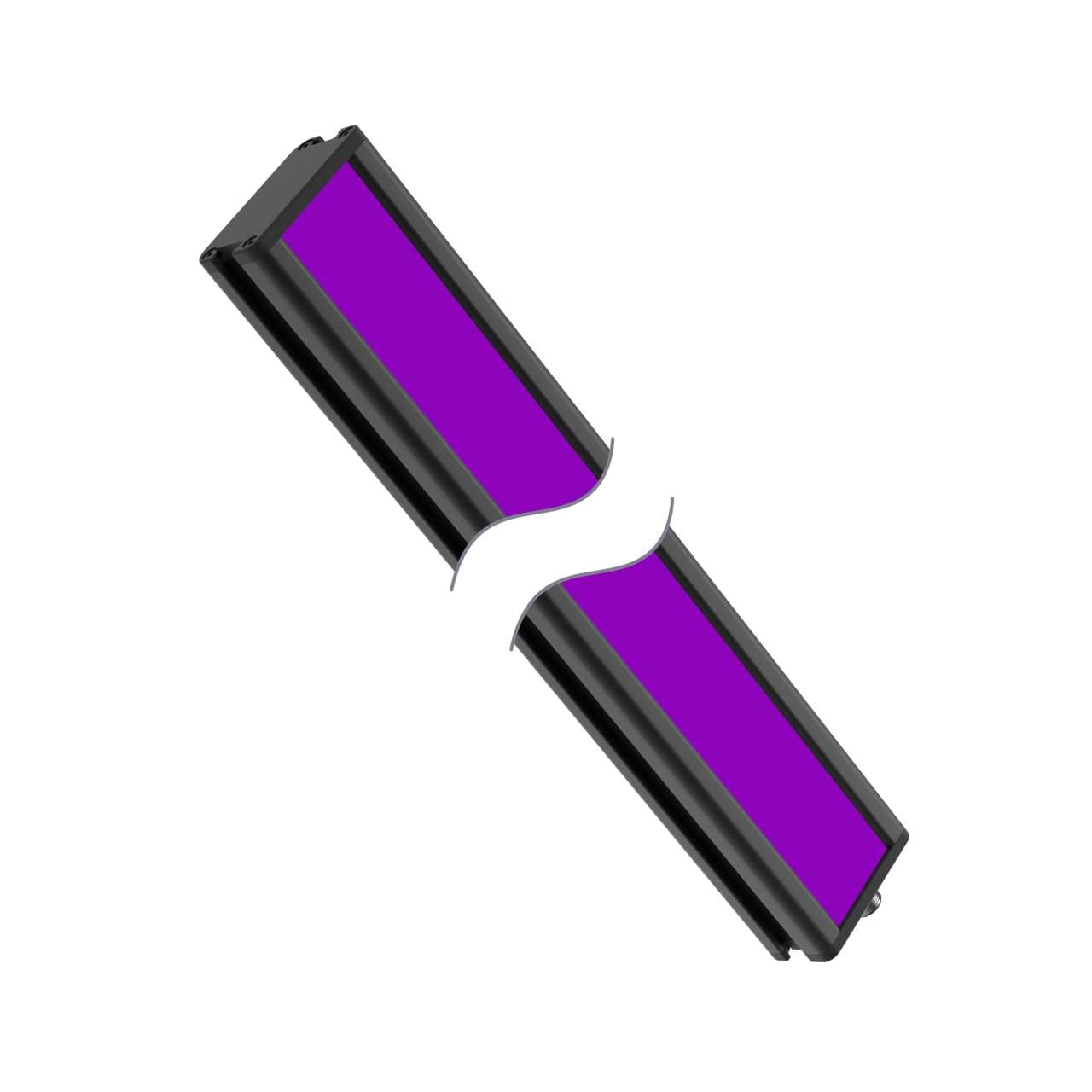

Banner LEDUV395LA290XD6-XQ Vision Light: 290 mm Linear Array - IP50; 12 High Intensity 395 nm UV LEDs - 24 V dc; Diffuse Plastic Window; 5-pin M12 QD
Banner

Part#:LEDUV395LA290XD6-XQ

Manufacturer:Banner

Alt. Part#:19922

Product Lifecycle:Active

Get a quick Quote!

Vision Light: 290 mm Linear Array - IP50; 12 High Intensity 395 nm UV LEDs - 24 V dc; Diffuse Plastic Window; 5-pin M12 QD

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDUV395LA290XD6-XQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    789.25008 g
  • Country Of Origin
    MX
  • Lens Focusing Angle (°)/Field of View
    5
  • Max Op. Temperature (°C)
    50
  • Supply Voltage
    24 V DC
  • Physical Dimensions (LxWxH or DxH mm)
    332.6 x 59.4 x 32.6
  • Color Technology
    Standard LED
  • Number of Input Pins/Conductors
    5
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Connection Type
    Integral QD
  • Window Material
    Diffuse Acrylic
  • Power
    DC
  • Max Current Color (mA)
    1000
  • Device Type
    Bar Light
  • Housing Style
    Linear Strip
  • Color
    Ultraviolet
  • Primary Housing Material
    Anodized Aluminum

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDUV395LA290XD6-XQ Description

Banner Engineering LEDUV395LA290XD6-XQ is an illumination unit designed for linear array illumination backlight applications. It features a high-intensity design with a 290mm (11.4 inches or approximately 1 foot) array length. This unit emits ultraviolet (UV) light at a wavelength of 395 nm, suitable for various industrial applications. It is constructed with a black anodized aluminum housing and a diffused acrylic window, ensuring durability and effective light diffusion. The rectangular shape is specifically designed to fit a range of settings. For connectivity, it comes pre-equipped with a 5-pin Euro-style M12 connector, facilitating easy integration into existing systems. It operates on a 24Vdc supply voltage and is rated with a degree of protection of IP50, indicating a level of protection against dust ingress.

Related documents LEDUV395LA290XD6-XQ Specs

LEDUV395LA290XD6-XQ 151466.pdf
