LEDUV395A70AG5-XQ Banner Vision Accessories

LEDUV395A70AG5-XQ on Powermatic Associates
Banner
  • LEDUV395A70AG5-XQ
  • LEDUV395A70AG5-XQ

Part#:LEDUV395A70AG5-XQ

Alt. Part#:19902

Manufacturer:Banner

Category:Vision Accessories

Product Lifecycle:Active

Product description

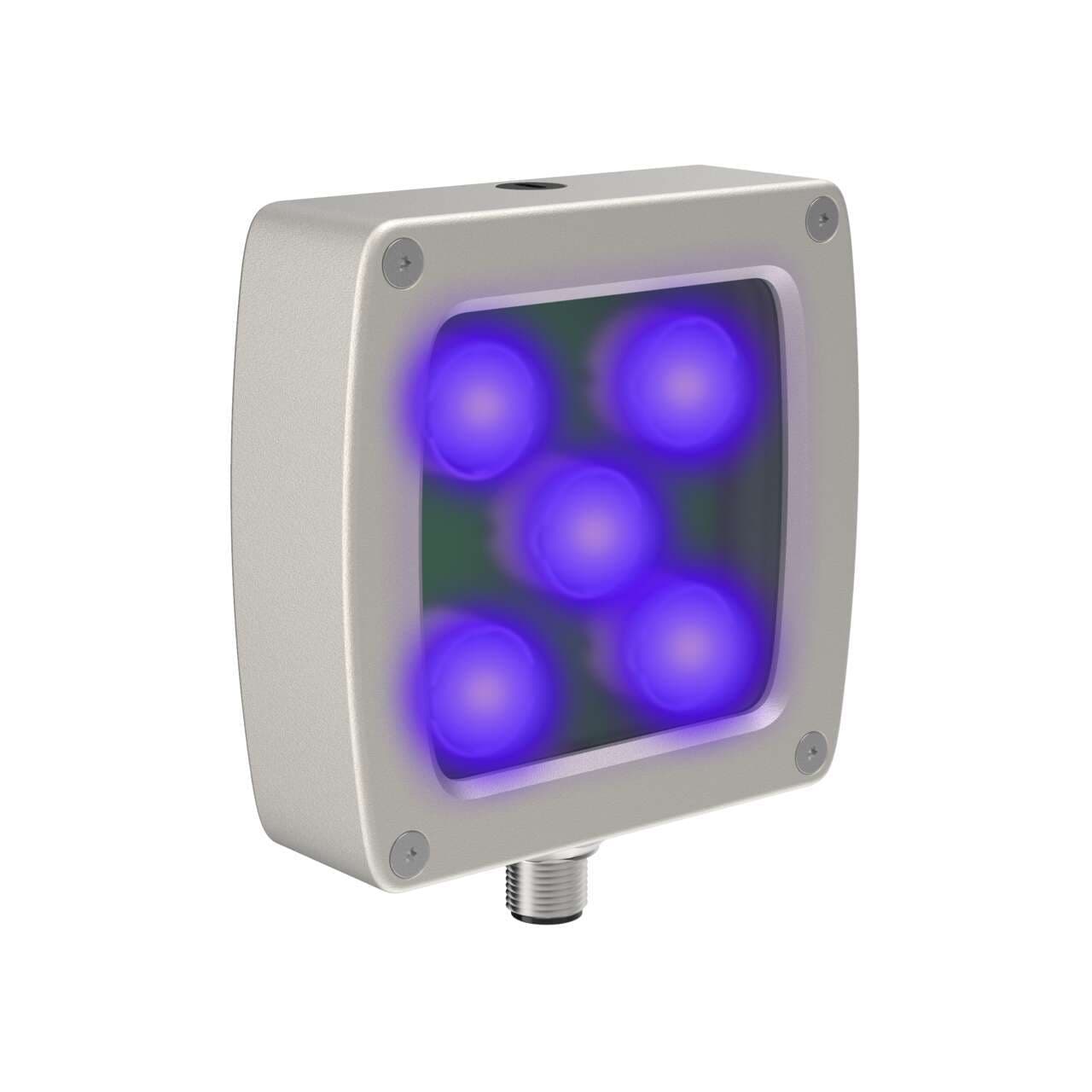

Vision Light: 70 mm Area - IP68; 5 High Intensity 395 nm UV LEDs - 24 V dc; Clear Glass Window; Requires Cable MQDC20-xxx

Product Details

  • Weight
    385.5532 g
  • Country Of Origin
    MX
  • Supply Voltage
    24 V DC
  • Max Op. Temperature (°C)
    50
  • Feature: Quick Disconnect
    Yes
  • Physical Dimensions (LxWxH or DxH mm)
    102.0 x 91.0 x 28.2
  • Max Current Color (mA)
    500
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Color Technology
    Standard LED
  • Color
    Ultraviolet
  • Connection Type
    Integral QD
  • Number of Input Pins/Conductors
    5
  • Window Material
    Glass
  • Housing Style
    Rectangular
  • Power
    DC
  • Device Type
    Area Light
  • Primary Housing Material
    Nickel-Plated Aluminum

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LEDUV395A70AG5-XQ on Powermatic Associates is $1,268.00. Order now.

About the product

Banner Engineering LEDUV395A70AG5-XQ is an illumination unit designed for area illumination with a high-intensity design. It features a square shape with dimensions of 70x70mm and emits ultraviolet (UV) light at a wavelength of 395 nm. The unit is constructed from nickel-plated aluminum housing with a glass window, ensuring durability. It comes pre-equipped with a 5-pin Euro-style M12 connector for connectivity. The LEDUV395A70AG5-XQ operates on a supply voltage of 24Vdc and is rated with a degree of protection of IP68, indicating a high level of protection against dust and water ingress.
