LEDUV395A70XD5-PQ Banner Vision Accessories

LEDUV395A70XD5-PQ on Powermatic Associates
Banner

Part#:LEDUV395A70XD5-PQ

Manufacturer:Banner

Alt. Part#:19891

Product Lifecycle:Active

Get a quick Quote!

Vision Light: 70 mm Area with Potentiometer; 5 High Intensity 395 nm UV LEDs - 24 V dc; Clear Diffusing Plastic Window; Requires Cable MQDC20-xxx

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDUV395A70XD5-PQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    281.22704 g
  • Country Of Origin
    MX
  • Max Op. Temperature (°C)
    50
  • Physical Dimensions (LxWxH or DxH mm)
    76.2 x 76.2 x 29.2
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Supply Voltage
    24 V DC
  • Color Technology
    Standard LED
  • Max Current Color (mA)
    500
  • Primary Housing Material
    Low-Carbon Steel
  • Number of Input Pins/Conductors
    5
  • Connection Type
    Integral QD
  • Intensity Adjustment
    Potentiometer
  • Device Type
    Area Light
  • Color
    Ultraviolet
  • Window Material
    Diffuse Acrylic
  • Power
    DC
  • Housing Style
    Rectangular

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDUV395A70XD5-PQ Description

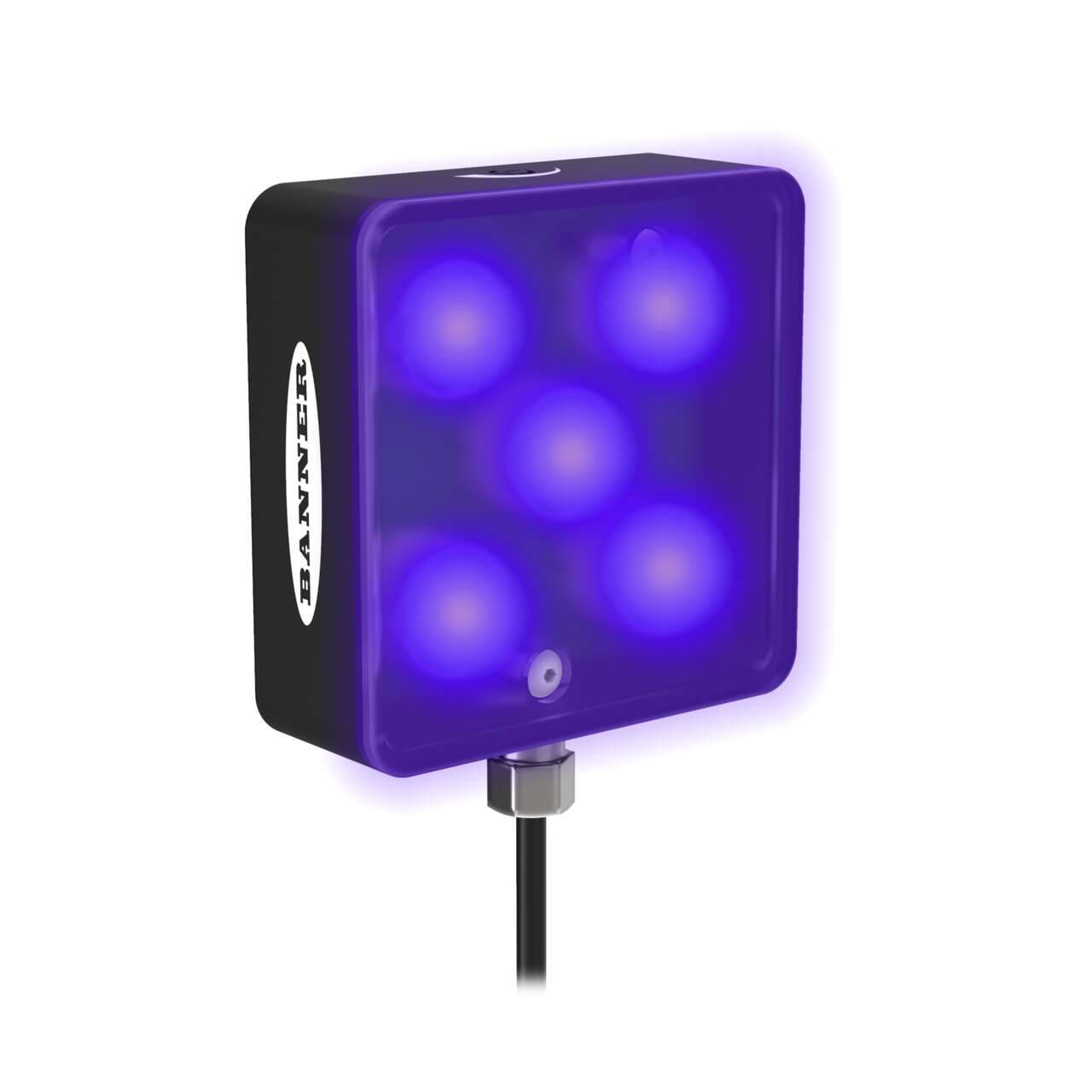

Banner Engineering LEDUV395A70XD5-PQ is an illumination unit designed for area illumination with a focus on ultraviolet light. It features intensity adjustment capabilities, allowing for dimming via a potentiometer, and emits high-intensity light at a wavelength of 395 nm. This square-shaped unit measures 70x70mm and is constructed with a low-carbon steel housing and a diffused acrylic window. It comes pre-wired with a 6-inch (150mm) pigtail that terminates with a 5-pin Euro-style M12 connector. The LEDUV395A70XD5-PQ operates on a 24Vdc supply voltage and is rated with a degree of protection of IP50, indicating a level of protection against dust.

Related documents LEDUV395A70XD5-PQ Specs

LEDUV395A70XD5-PQ 153956.pdf

Manufacturer warranty

$935.00

Request a quote, and we will send availability within minutes.
