LEDUV365LA290XG6-XQ Banner Vision Accessories

LEDUV365LA290XG6-XQ on Powermatic Associates
Banner

Part#:LEDUV365LA290XG6-XQ

Manufacturer:Banner

Alt. Part#:19909

Product Lifecycle:Active

Get a quick Quote!

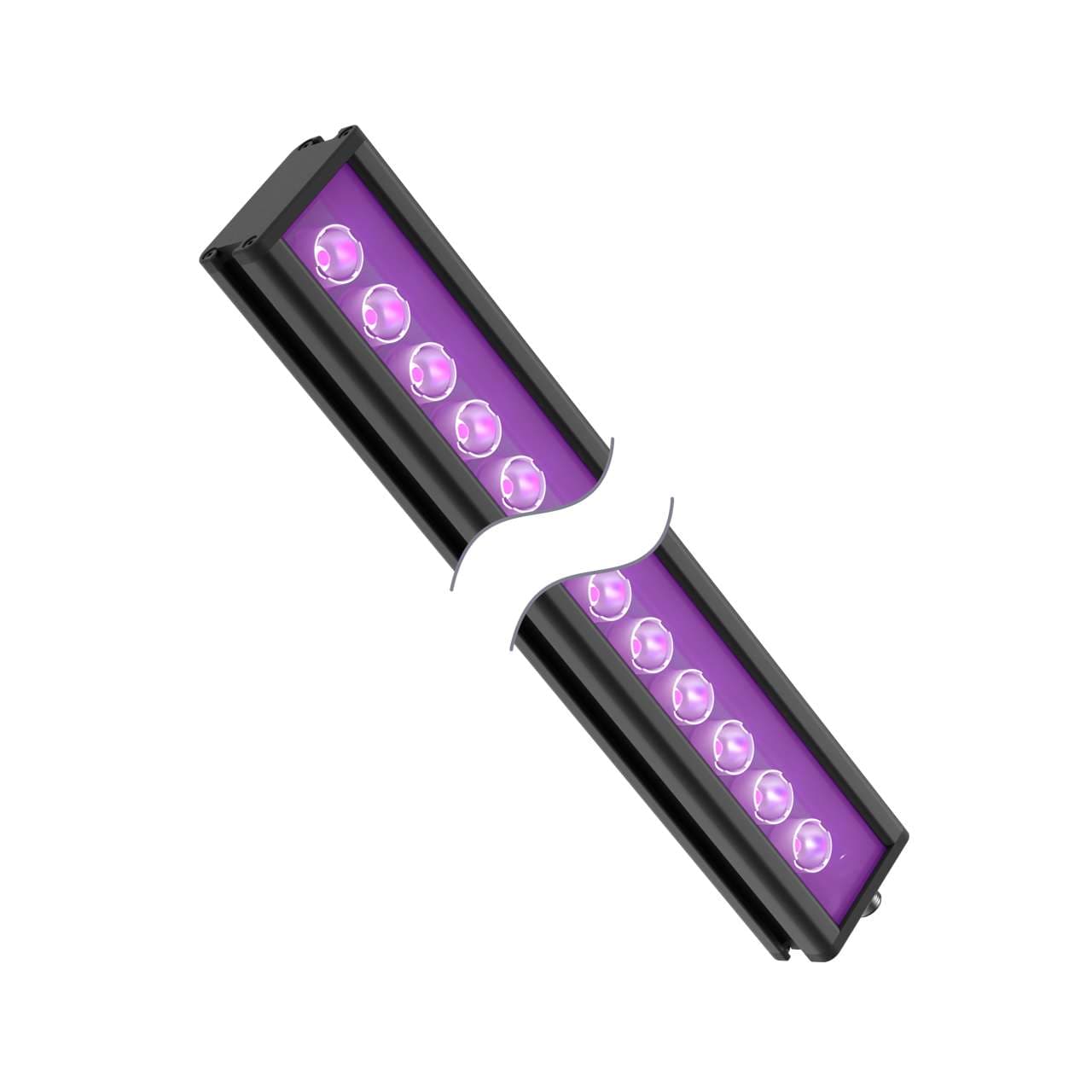

Vision Light: 290 mm Linear Array - IP50; 12 High Intensity 365 nm UV LEDs - 24 V dc; Clear Glass Window; 5-pin M12 QD

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDUV365LA290XG6-XQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    789.25008 g
  • Country Of Origin
    MX
  • Max Op. Temperature (°C)
    50
  • Supply Voltage
    24 V DC
  • Physical Dimensions (LxWxH or DxH mm)
    332.6 x 59.4 x 32.6
  • Lens Focusing Angle (°)/Field of View
    15
  • Housing Style
    Linear Strip
  • Power
    DC
  • Number of Input Pins/Conductors
    5
  • Primary Housing Material
    Anodized Aluminum
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Color Technology
    Standard LED
  • Max Current Color (mA)
    1000
  • Feature: Quick Disconnect
    Yes
  • Color
    Ultraviolet
  • Device Type
    Bar Light
  • Window Material
    Glass
  • Connection Type
    Integral QD

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDUV365LA290XG6-XQ Description

Banner Engineering LEDUV365LA290XG6-XQ is an illumination unit designed for linear array illumination backlight applications. It features a high-intensity design with a 290mm (11.4 inches or approximately 1 foot) array length. The unit emits ultraviolet (UV) light with a wavelength of 365 nm, suitable for various applications requiring UV illumination. It is constructed with a black anodized aluminum housing and a glass window, ensuring durability and protection for the internal components. The LEDUV365LA290XG6-XQ is pre-equipped with a 5-pin Euro-style M12 connector for easy and secure connection. It operates on a 24Vdc supply voltage and has an IP50 degree of protection, indicating that it is protected against dust ingress.

Related documents LEDUV365LA290XG6-XQ Specs

LEDUV365LA290XG6-XQ 151466.pdf

Manufacturer warranty

$2,581.00

Request a quote, and we will send availability within minutes.

Select Qty:

$2,581.00

$2,581.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
