Powermatic Associates Logo

LEDUV365LA145XG6-XQ Banner Vision Accessories

LEDUV365LA145XG6-XQ on Powermatic Associates
Banner
  • LEDUV365LA145XG6-XQ
  • LEDUV365LA145XG6-XQ

Part#:LEDUV365LA145XG6-XQ

Alt. Part#:19908

Manufacturer:Banner

Category:Vision Accessories

Product Lifecycle:Active

Product description

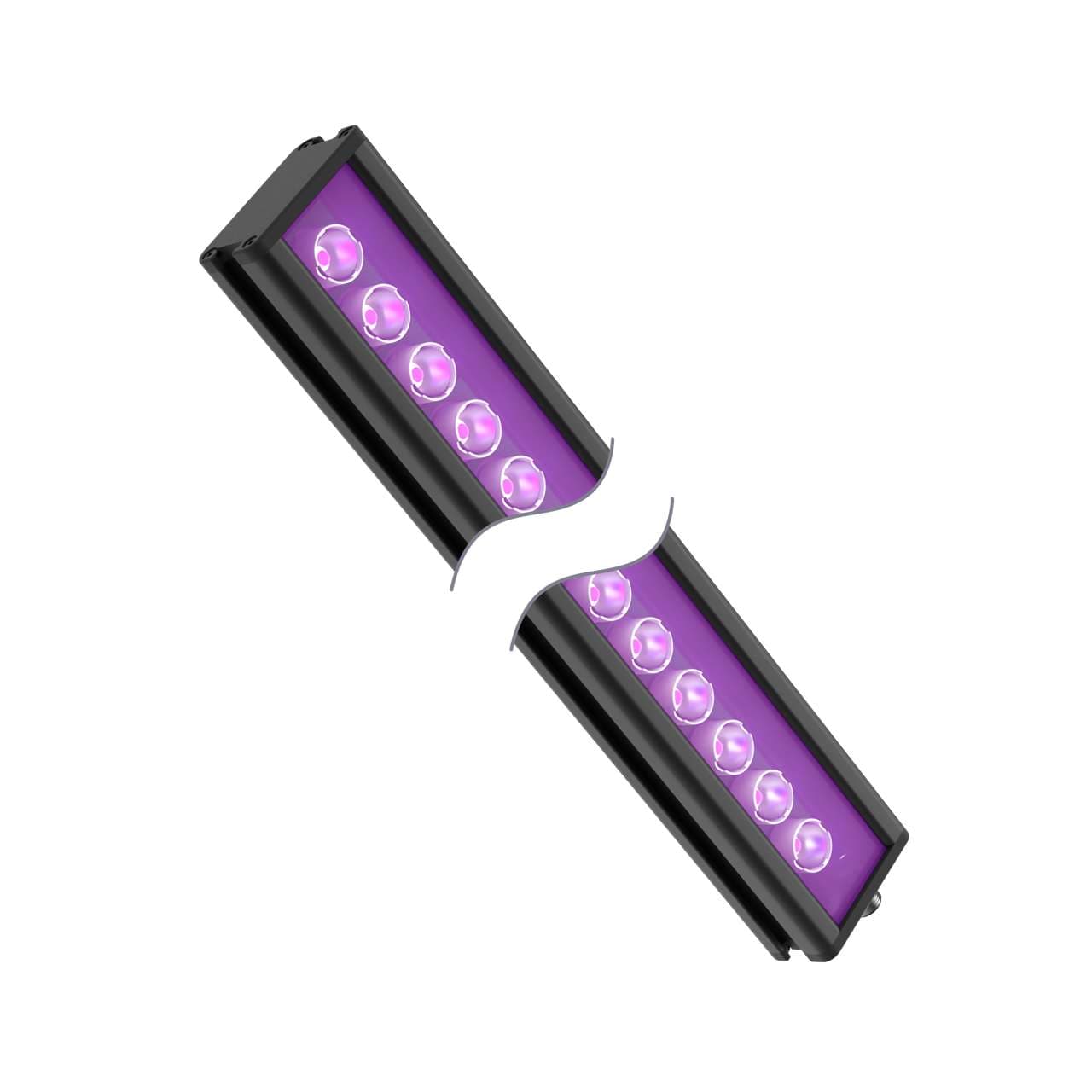

Vision Light: 145 mm Linear Array - IP50; 6 High Intensity 365 nm UV LEDs - 24 V dc; Clear Glass Window; 5-pin M12 QD

Product Details

  • Weight
    458.12792 g
  • Country Of Origin
    MX
  • Lens Focusing Angle (°)/Field of View
    15
  • Color
    Ultraviolet
  • Housing Style
    Linear Strip
  • Supply Voltage
    24 V DC
  • Max Current Color (mA)
    500
  • Color Technology
    Standard LED
  • Physical Dimensions (LxWxH or DxH mm)
    187.1 x 59.4 x 32.6
  • Max Op. Temperature (°C)
    50
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Primary Housing Material
    Anodized Aluminum
  • Number of Input Pins/Conductors
    5
  • Connection Type
    Integral QD
  • Window Material
    Glass
  • Power
    DC
  • Device Type
    Bar Light

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LEDUV365LA145XG6-XQ on Powermatic Associates is $1,404.00. Order now.

About the product

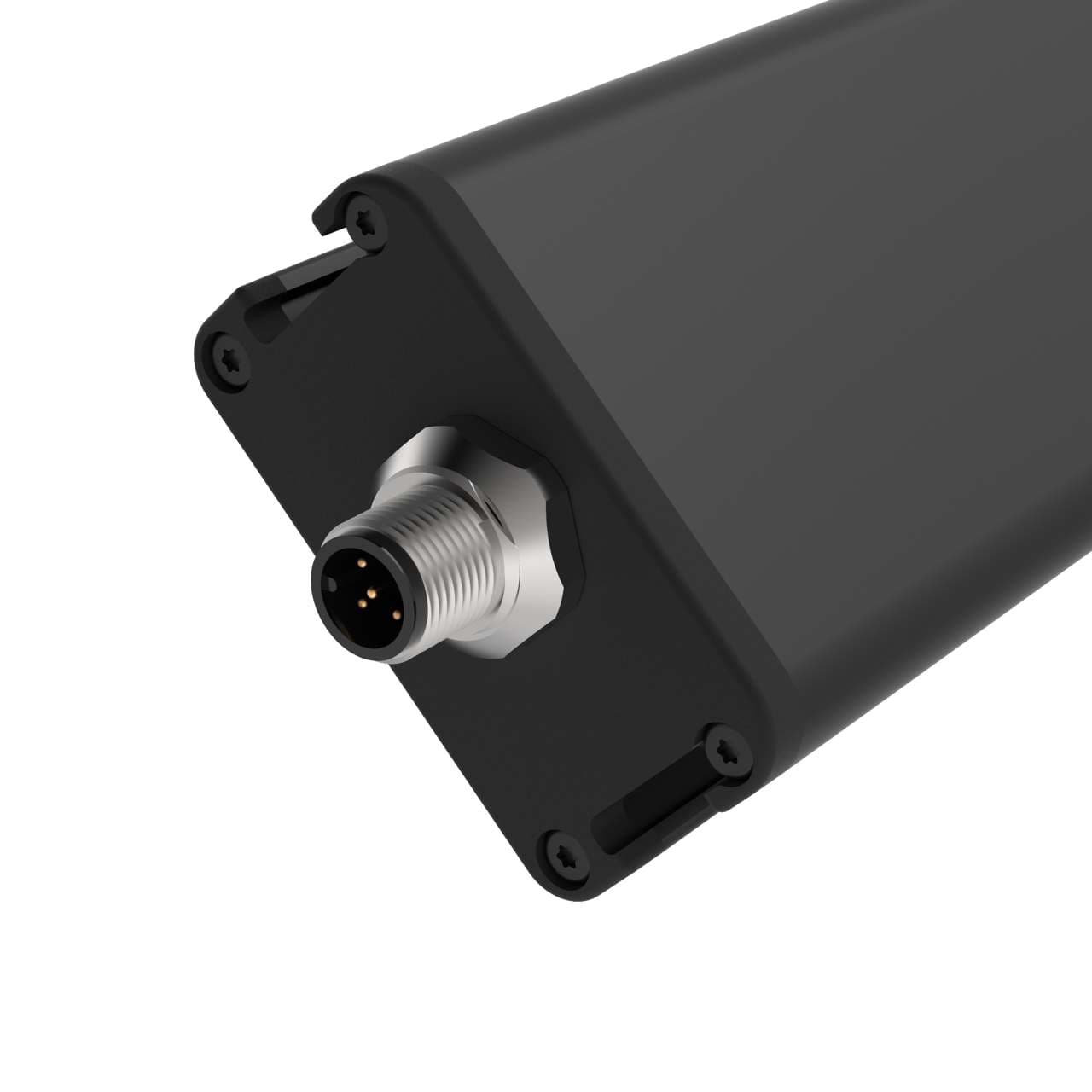

Banner Engineering LEDUV365LA145XG6-XQ is an illumination unit designed for linear array illumination backlight applications. It features a high-intensity design with a 145mm / 5.7" array length, emitting ultraviolet (UV) light at a wavelength of 365 nm. The unit is housed in black anodized aluminum with a glass window, ensuring durability and protection for the internal components. It comes pre-equipped with a 5-pin Euro-style M12 connector for easy integration into existing systems. Operating on a supply voltage of 24Vdc, this rectangular-shaped illumination unit is rated with a degree of protection of IP50, indicating a level of protection against dust ingress.

LEDUV365LA145XG6-XQ Related Documents

151466.pdf
