LEDRR62X62M Banner Vision Accessories

Name: LEDRR62X62M
Brand: Banner
Price: 340 USD
Availability: BackOrder

Banner LEDRR62X62M PresencePLUS 62 x 62 mm Ring Light; Visible Red LED 24 V dc; 0.3 m (1 ft) cable with 3-pin male Connector; Connects to P4

Part#:LEDRR62X62M

Manufacturer:Banner

Alt. Part#:75370

Product Lifecycle:Active

Get a quick Quote!

PresencePLUS 62 x 62 mm Ring Light; Visible Red LED 24 V dc; 0.3 m (1 ft) cable with 3-pin male Connector; Connects to P4

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDRR62X62M Banner price in the box on the right side or send a quick quote.

Product Details

Weight
127.00576 g
Country Of Origin
MX
Supply Voltage
24 V dc
Physical Dimensions (LxWxH or DxH mm)
66.7 x 66.7 x 104.1
Max Current Color (mA)
130
Color Technology
Standard LED
Max Op. Temperature (°C)
50
Primary Housing Material
Low-Carbon Steel
Number of Input Pins/Conductors
3
Connection Type
Pigtail QD
Window Material
Acrylic
Power
DC
Color
Red
Device Type
Ring Light
Housing Style
Rectangular
QD Type/Cable Length
2 m; M8 (Pico)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDRR62X62M Description

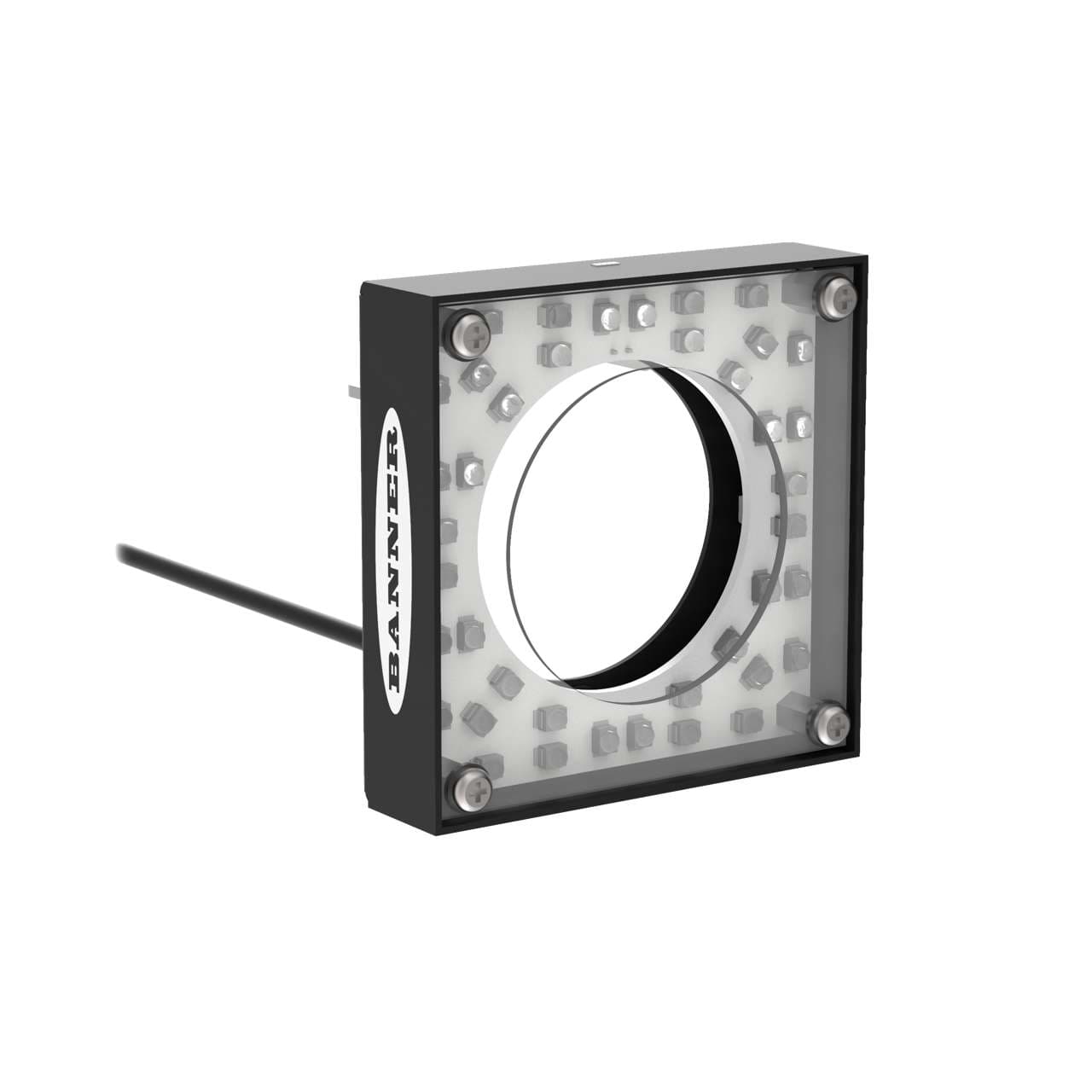

Banner Engineering LEDRR62X62M is an illumination unit designed for ring illumination light applications. It features dimensions of 62x62mm and emits visible red light. The unit has a rectangular shape with a ring passage, constructed from low-carbon steel housing and an acrylic window for durability and clear light transmission. It comes pre-wired with a 6ft / 2m pigtail that terminates with a 3-pin Pico-style M8 connector for easy installation. The LEDRR62X62M operates on a 24Vdc supply voltage, making it suitable for a variety of industrial automation tasks requiring precise and targeted illumination.

$340.00

Request a quote, and we will send availability within minutes.

Select Qty:

$340.00

$340.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
