LEDRLB290XW6-XQ Banner Vision Accessories

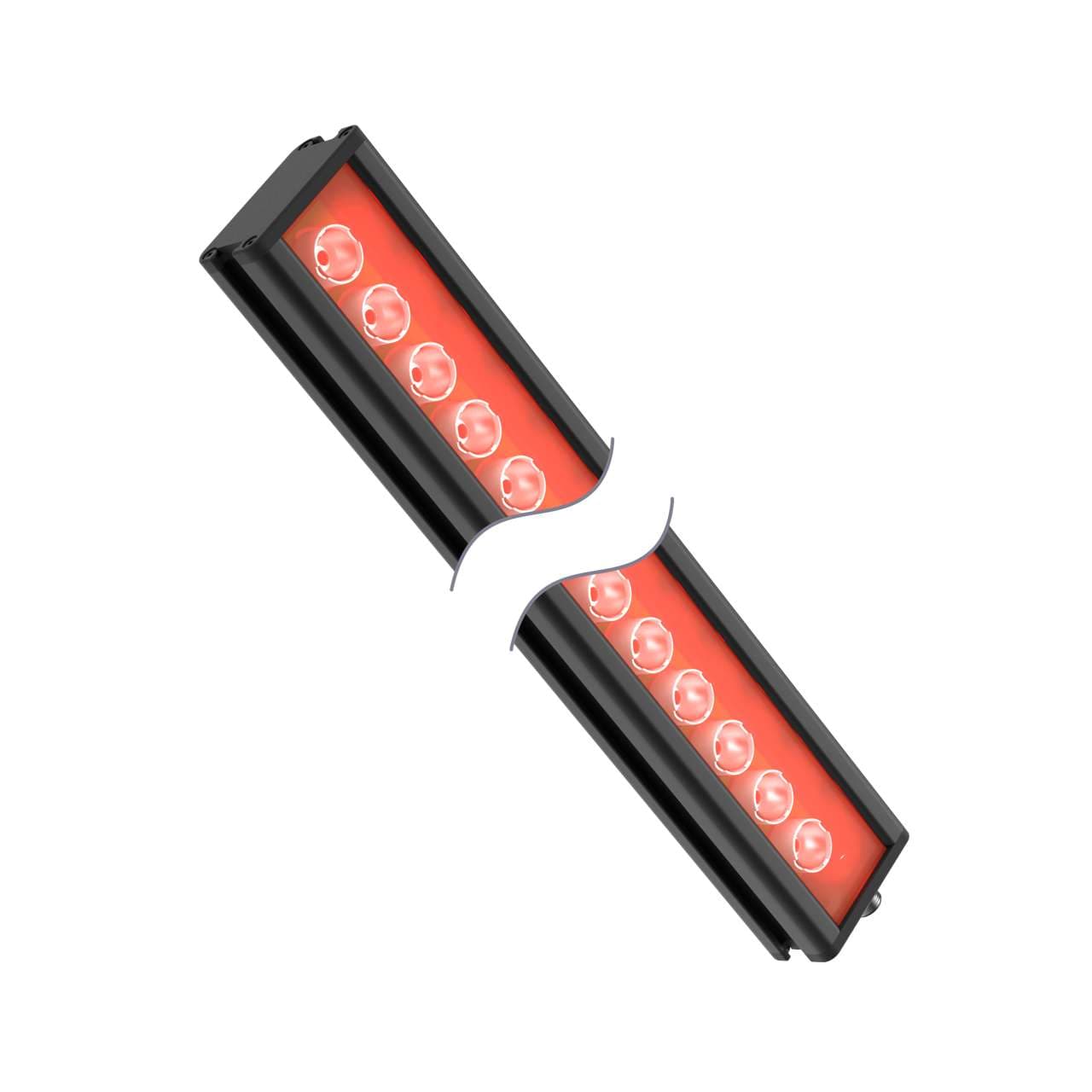

Banner LEDRLB290XW6-XQ Vision Light-Linear Back Light 290 mm; Voltage: 24 V dc; Environmental Rating: IP50 Color: Red; 5-pin M12 QD
Banner

Part#:LEDRLB290XW6-XQ

Manufacturer:Banner

Alt. Part#:29660

Product Lifecycle:Active

Get a quick Quote!

Vision Light-Linear Back Light 290 mm; Voltage: 24 V dc; Environmental Rating: IP50 Color: Red; 5-pin M12 QD

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDRLB290XW6-XQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    775.64232 g
  • Country Of Origin
    MX
  • Max Current Color (mA)
    1000
  • Max Op. Temperature (°C)
    50
  • Physical Dimensions (LxWxH or DxH mm)
    332.6 x 59.4 x 32.6
  • Color Technology
    Standard LED
  • Supply Voltage
    24 V DC
  • Power
    DC
  • Device Type
    Linear Array Backlight
  • Housing Style
    Linear Strip
  • Number of Input Pins/Conductors
    5
  • Primary Housing Material
    Anodized Aluminum
  • Color
    Red
  • Connection Type
    Integral QD
  • Window Material
    Acrylic
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDRLB290XW6-XQ Description

Banner Engineering LEDRLB290XW6-XQ is an illumination unit designed for linear array backlight applications. It features a high-intensity design suitable for various lighting needs. The unit measures 290mm in length, equivalent to 11.4 inches or approximately 1 foot, and emits visible red light. Its rectangular shape is encased in a black anodized aluminum housing with a white acrylic window, ensuring durability and a clear light output. This model is pre-equipped with a 5-pin Euro-style M12 connector for straightforward connectivity. It operates on a 24Vdc supply voltage and is rated with a degree of protection of IP50, indicating a level of protection against dust ingress.
