LEDRLB145XW6-XQ Banner Vision Accessories

LEDRLB145XW6-XQ on Powermatic Associates
Banner

Part#:LEDRLB145XW6-XQ

Manufacturer:Banner

Alt. Part#:29637

Product Lifecycle:Active

Get a quick Quote!

Vision Light-Linear Back Light 145 mm; Voltage: 24 V dc; Environmental Rating: IP50 Color: Red; 5-pin M12 QD

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDRLB145XW6-XQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    453.592 g
  • Country Of Origin
    MX
  • Feature: Quick Disconnect
    Yes
  • Physical Dimensions (LxWxH or DxH mm)
    187.1 x 59.4 x 32.6
  • Max Op. Temperature (°C)
    50
  • Max Current Color (mA)
    500
  • Color Technology
    Standard LED
  • Supply Voltage
    24 V DC
  • Number of Input Pins/Conductors
    5
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Connection Type
    Integral QD
  • Window Material
    Acrylic
  • Color
    Red
  • Primary Housing Material
    Anodized Aluminum
  • Power
    DC
  • Device Type
    Linear Array Backlight
  • Housing Style
    Linear Strip

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDRLB145XW6-XQ Description

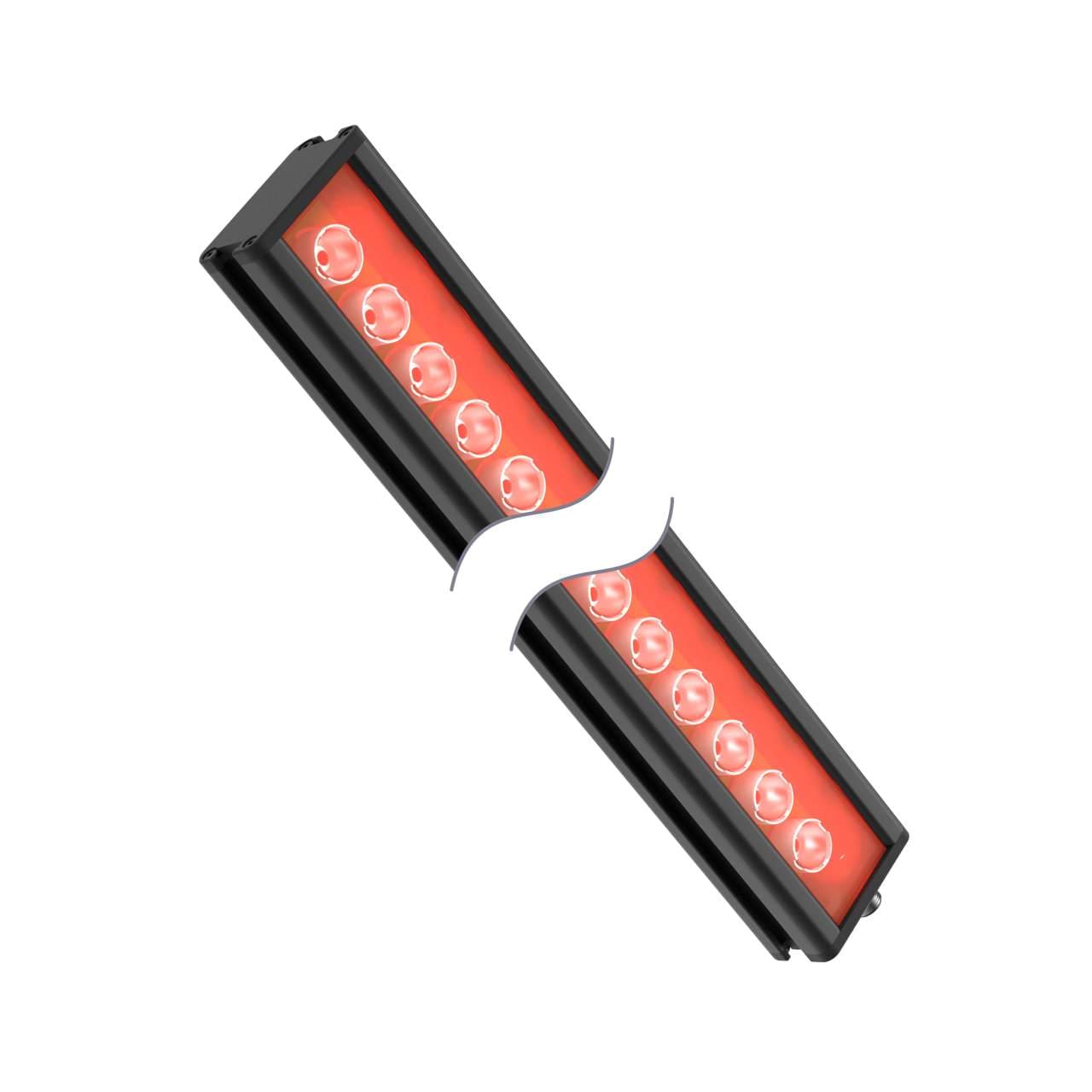

Banner Engineering LEDRLB145XW6-XQ is an illumination unit designed for linear array illumination backlight applications. It features a high-intensity design with a 145mm / 5.7" array length, emitting visible red light. The unit is housed in black anodized aluminum with a white acrylic window, shaped in a rectangular form. It comes pre-equipped with a 5-pin Euro-style M12 connector for connectivity. The LEDRLB145XW6-XQ operates on a 24Vdc supply voltage and is rated with a degree of protection of IP50.

Related documents LEDRLB145XW6-XQ Specs

LEDRLB145XW6-XQ 166314.pdf

Manufacturer warranty

$567.00

Request a quote, and we will send availability within minutes.

Select Qty:

$567.00

$567.00 each
