LEDRLA145XD6-XQ Banner Vision Accessories

LEDRLA145XD6-XQ on Powermatic Associates
Banner
  • LEDRLA145XD6-XQ
  • LEDRLA145XD6-XQ

Part#:LEDRLA145XD6-XQ

Alt. Part#:17094

Manufacturer:Banner

Category:Vision Accessories

Product Lifecycle:Active

Product description

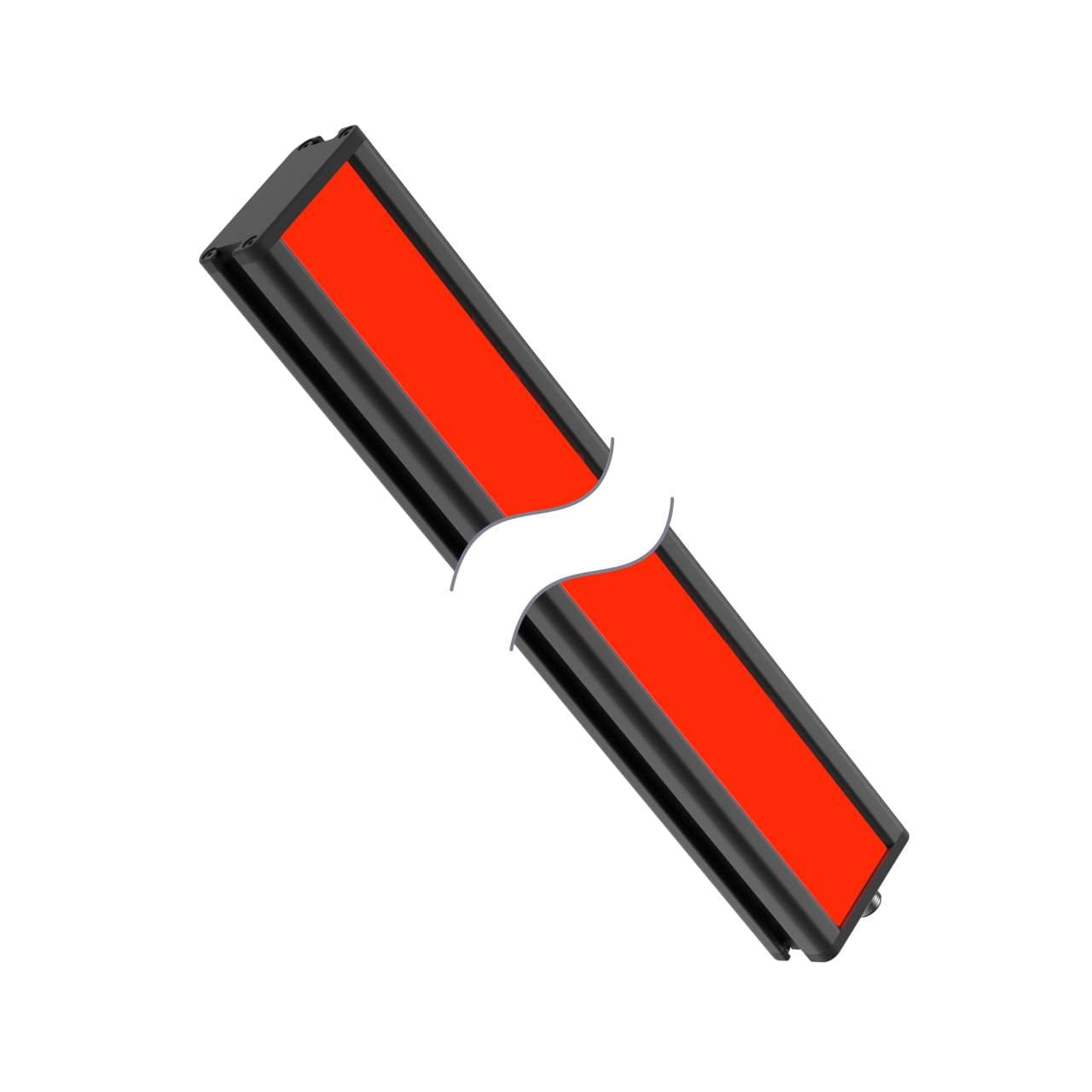

Vision Light - 145 mm Linear Array - IP50; 6 High Intensity Red LEDs - 24 V dc; Diffusing Plastic Window; Requires Cable MQDC20-xxx

Product Details

  • Weight
    467.19976 g
  • Country Of Origin
    MX
  • Lens Focusing Angle (°)/Field of View
    6.5
  • Physical Dimensions (LxWxH or DxH mm)
    187.1 x 59.4 x 32.6
  • Max Op. Temperature (°C)
    50
  • Supply Voltage
    24 V DC
  • Color Technology
    Standard LED
  • Max Current Color (mA)
    500
  • Connection Type
    Integral QD
  • Power
    DC
  • Primary Housing Material
    Anodized Aluminum
  • Number of Input Pins/Conductors
    5
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Housing Style
    Linear Strip
  • Window Material
    Diffuse Acrylic
  • Color
    Red
  • Device Type
    Bar Light

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LEDRLA145XD6-XQ on Powermatic Associates is $568.00. Order now.

About the product

Banner Engineering LEDRLA145XD6-XQ is an illumination unit designed for linear array illumination backlight applications. It features a high-intensity design with a 145mm / 5.7" array length, emitting visible red light. The unit is housed in black anodized aluminum with a diffused acrylic window, shaped in a rectangular form. It comes pre-equipped with a 5-pin Euro-style M12 connector for connectivity. The supply voltage required for operation is 24Vdc. This model is rated with a degree of protection of IP50.

LEDRLA145XD6-XQ Related Documents

151466.pdf
