LEDRA70XD5-PQ Banner Vision Accessories

LEDRA70XD5-PQ on Powermatic Associates
Banner

Part#:LEDRA70XD5-PQ

Manufacturer:Banner

Alt. Part#:15738

Product Lifecycle:Active

Get a quick Quote!

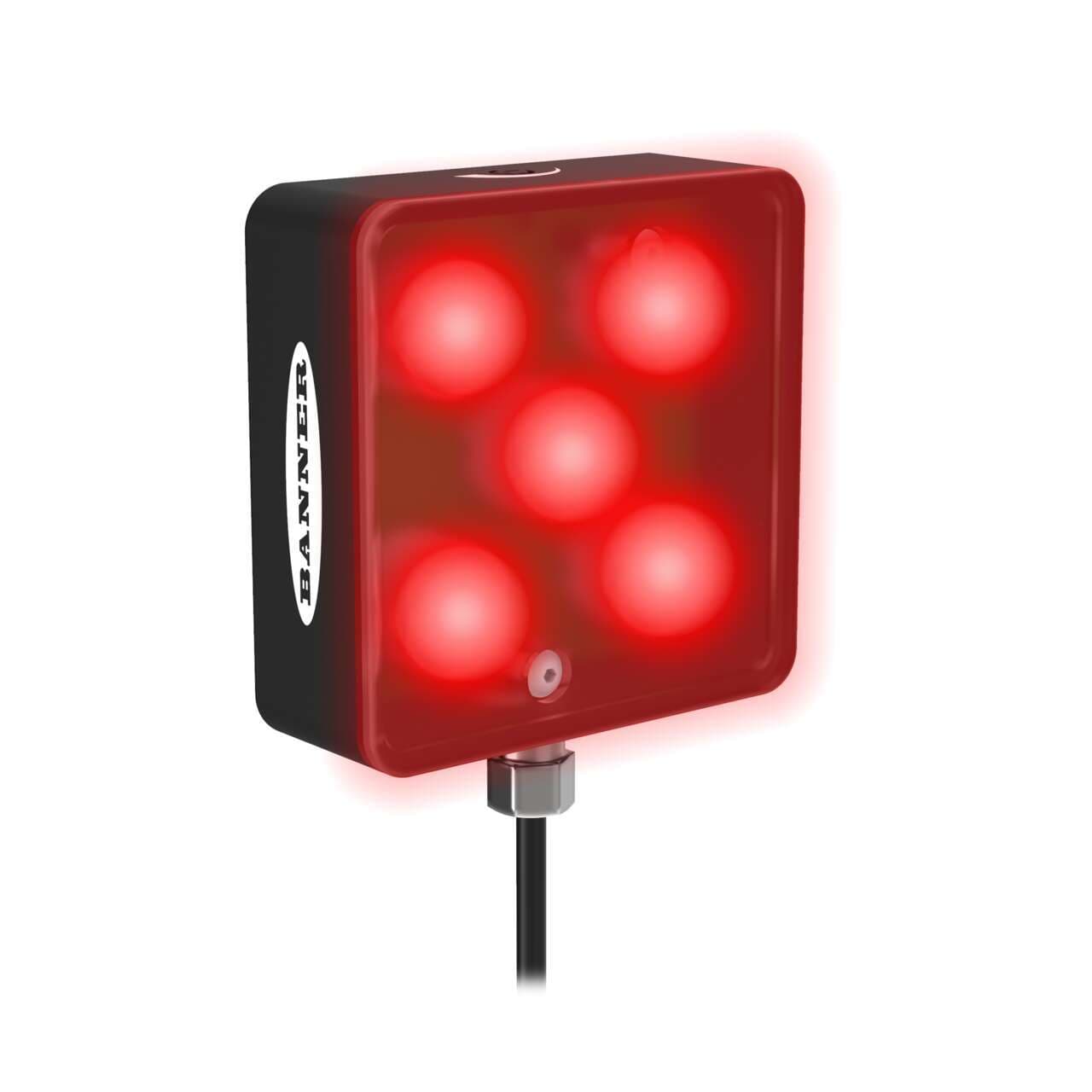

Vision Light - 70 mm Area with Potentiometer; 5 High Intensity Red LEDs - 24 V dc; Clear Diffusing Plastic Window; Requires Cable MQDC20-xxx

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDRA70XD5-PQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    282.587816 g
  • Country Of Origin
    MX
  • Max Op. Temperature (°C)
    50
  • Color Technology
    Standard LED
  • Max Current Color (mA)
    500
  • Supply Voltage
    24 V DC
  • Physical Dimensions (LxWxH or DxH mm)
    76.2 x 76.2 x 29.2
  • Color
    Red
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Intensity Adjustment
    Potentiometer
  • Window Material
    Diffuse Acrylic
  • Connection Type
    Integral QD
  • Primary Housing Material
    Low-Carbon Steel
  • Housing Style
    Rectangular
  • Number of Input Pins/Conductors
    5
  • Device Type
    Area Light
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDRA70XD5-PQ Description

Banner Engineering LEDRA70XD5-PQ is an illumination unit designed for area lighting applications. It features intensity adjustment capabilities, allowing for dimming via a potentiometer to achieve high-intensity lighting as needed. This unit has a square shape, measuring 70x70mm, and emits visible red light. It is constructed with a low-carbon steel housing and a diffused acrylic window for durability and effective light diffusion. The LEDRA70XD5-PQ is pre-wired with a 6-inch (150mm) pigtail that terminates with a 5-pin Euro-style M12 connector for easy installation. It operates on a 24Vdc supply voltage and is rated with a degree of protection of IP50, indicating a level of protection against dust ingress.

Related documents LEDRA70XD5-PQ Specs

LEDRA70XD5-PQ 153956.pdf

Manufacturer warranty

$812.00

Request a quote, and we will send availability within minutes.

Select Qty:

$812.00

$812.00 each
