LEDRA70AD5-XQ Banner Vision Accessories

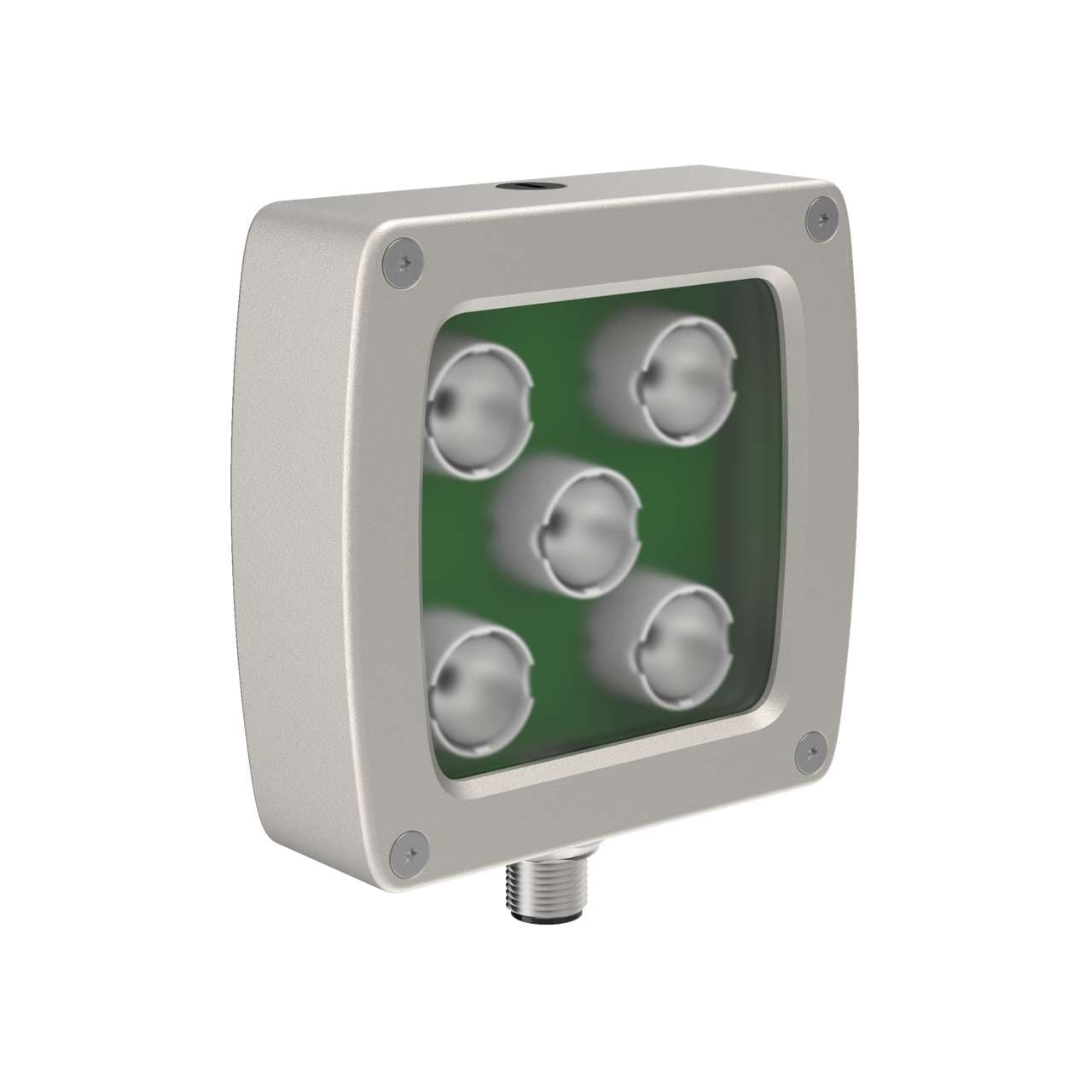

Banner LEDRA70AD5-XQ Vision Light - 70 mm Area - IP68; 5 High Intensity Red LEDs - 24 V dc; Clear Diffusing Plastic Window; Requires Cable MQDC20-xxx
Banner

Part#:LEDRA70AD5-XQ

Manufacturer:Banner

Alt. Part#:16135

Product Lifecycle:Active

Get a quick Quote!

Vision Light - 70 mm Area - IP68; 5 High Intensity Red LEDs - 24 V dc; Clear Diffusing Plastic Window; Requires Cable MQDC20-xxx

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDRA70AD5-XQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    38.55532 g
  • Country Of Origin
    MX
  • Color Technology
    Standard LED
  • Physical Dimensions (LxWxH or DxH mm)
    102.0 x 91.0 x 28.2
  • Number of Input Pins/Conductors
    5
  • Window Material
    Diffuse Acrylic
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Housing Style
    Rectangular
  • Feature: Quick Disconnect
    Yes
  • Max Op. Temperature (°C)
    50
  • Supply Voltage
    24 V DC
  • Max Current Color (mA)
    500
  • Connection Type
    Integral QD
  • Device Type
    Area Light
  • Color
    Red
  • Power
    DC
  • Primary Housing Material
    Nickel-Plated Aluminum

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDRA70AD5-XQ Description

Banner Engineering LEDRA70AD5-XQ is an illumination unit designed for area illumination with a high-intensity light output. This unit features a square shape, measuring 70x70mm, and emits visible red light. It is constructed with a nickel-plated aluminum housing and a diffused acrylic window for durability and effective light diffusion. The LEDRA70AD5-XQ is pre-equipped with a 5-pin Euro-style M12 connector for easy integration into existing systems. It operates on a 24Vdc supply voltage and is rated with a degree of protection of IP68, indicating a high level of protection against dust and water ingress.

Related documents LEDRA70AD5-XQ Specs

LEDRA70AD5-XQ 153957.pdf
