LEDILA1160XD6-XQ Banner Vision Accessories

LEDILA1160XD6-XQ on Powermatic Associates
Banner

Part#:LEDILA1160XD6-XQ

Manufacturer:Banner

Alt. Part#:14985

Product Lifecycle:Active

Get a quick Quote!

Vision Light - 1160 mm Linear Array - IP50; 48 High Intensity IR LEDs - 24 V dc; Diffusing Plastic Window; Requires Cable MQDC20-xxx

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDILA1160XD6-XQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    2562.7948 g
  • Country Of Origin
    MX
  • Physical Dimensions (LxWxH or DxH mm)
    1205.6 x 59.4 x 32.6
  • Supply Voltage
    24 V DC
  • Max Op. Temperature (°C)
    50
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Number of Input Pins/Conductors
    5
  • Max Current Color (mA)
    4000
  • Color Technology
    Standard LED
  • Primary Housing Material
    Anodized Aluminum
  • Window Material
    Diffuse Acrylic
  • Power
    DC
  • Housing Style
    Linear Strip
  • Color
    Infrared
  • Device Type
    Bar Light
  • Lens Focusing Angle (°)/Field of View
    6.5
  • Connection Type
    Integral QD

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDILA1160XD6-XQ Description

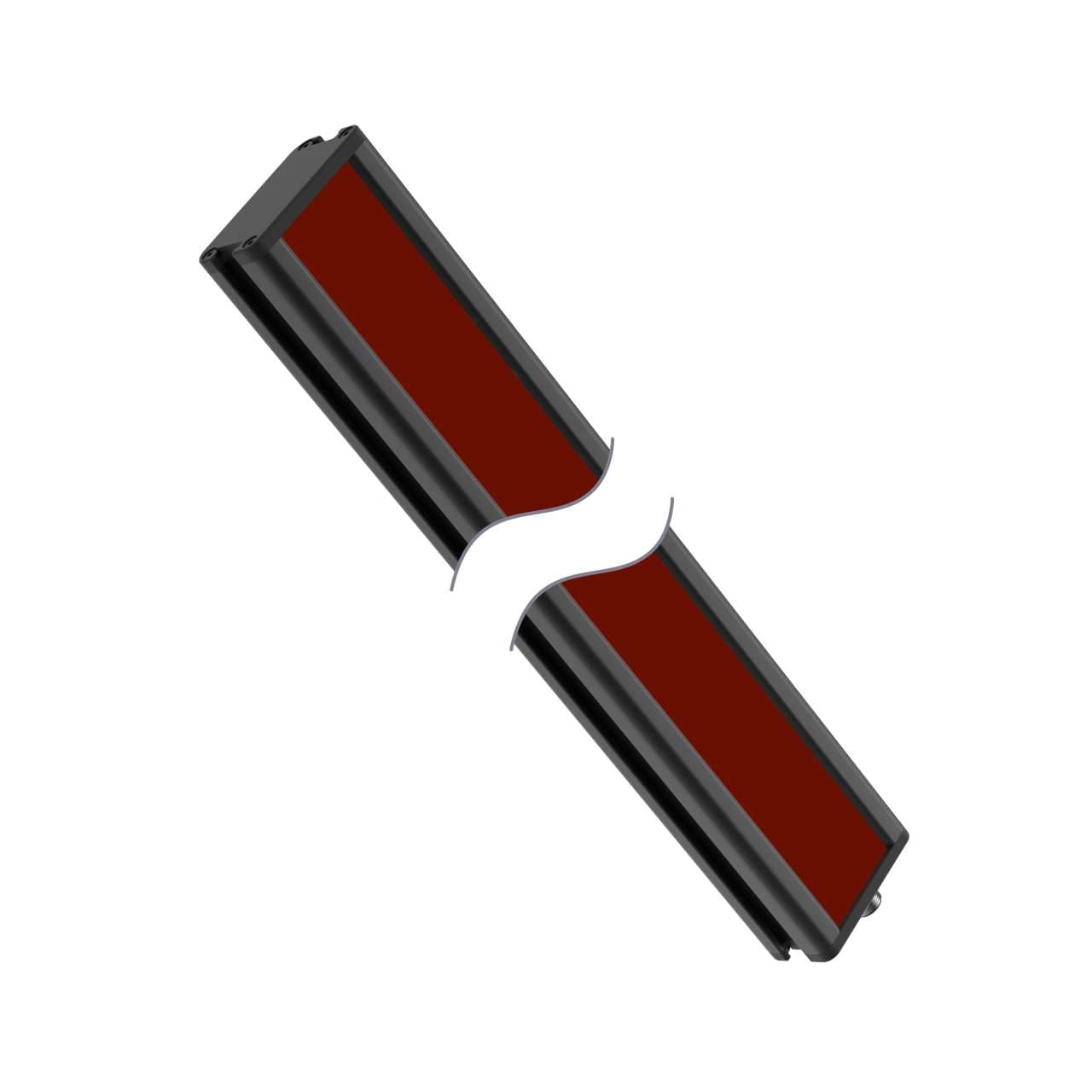

Banner Engineering LEDILA1160XD6-XQ is an illumination unit designed for linear array illumination backlight applications. It features a high-intensity design with a rectangular shape, measuring 1160mm (45.6 inches or approximately 4 feet) in array length. The unit emits light in the infrared (IR) spectrum and is constructed with a black anodized aluminum housing and a diffused acrylic window. It comes pre-equipped with a 5-pin Euro-style M12 connector for connectivity. The LEDILA1160XD6-XQ operates on a 24Vdc supply voltage and is rated with a degree of protection of IP50.

Related documents LEDILA1160XD6-XQ Specs

LEDILA1160XD6-XQ 151466.pdf
