LEDIB85X220M Banner Vision Accessories

Banner LEDIB85X220M PresencePLUS 85 x 220 mm Backlight; Infrared LED 24 V dc; 2 m (6.5 ft) cable with 3-pin male Connector; Connects to P4
Banner

Part#:LEDIB85X220M

Manufacturer:Banner

Alt. Part#:73272

Product Lifecycle:Active

Get a quick Quote!

PresencePLUS 85 x 220 mm Backlight; Infrared LED 24 V dc; 2 m (6.5 ft) cable with 3-pin male Connector; Connects to P4

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDIB85X220M Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    916.25584 g
  • Country Of Origin
    MX
  • Physical Dimensions (LxWxH or DxH mm)
    260.8 x 107.6 x 25.0
  • Max Op. Temperature (°C)
    50
  • Supply Voltage
    24 V dc
  • Color Technology
    Standard LED
  • Power
    DC
  • Max Current Color (mA)
    500
  • Color
    Infrared
  • Number of Input Pins/Conductors
    3
  • Housing Style
    Rectangular
  • QD Type/Cable Length
    2 m; M8 (Pico)
  • Device Type
    Backlight
  • Window Material
    Acrylic
  • Connection Type
    Pigtail QD
  • Primary Housing Material
    Low-Carbon Steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDIB85X220M Description

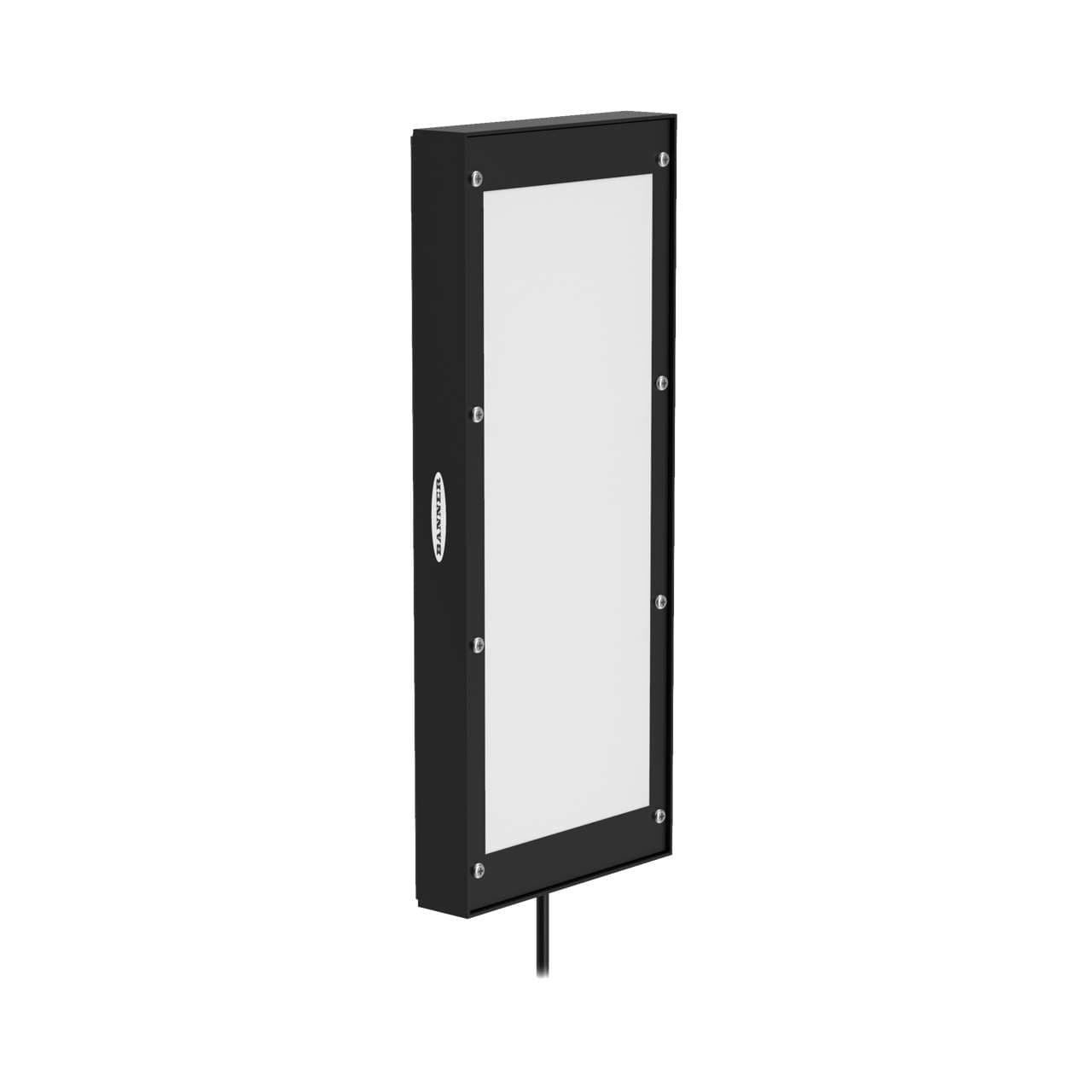

Banner Engineering LEDIB85X220M is an illumination unit designed for backlighting applications. This unit features dimensions of 85x220mm and emits light in the infrared (IR) spectrum. It has a rectangular shape and is constructed with a low-carbon steel housing and an acrylic window, ensuring durability. The unit is pre-wired with a 6.5ft / 2m polyurethane (PUR) cable that terminates with bare end flying leads for easy installation. It operates on a supply voltage of 24Vdc.

Related documents LEDIB85X220M Specs

LEDIB85X220M 116947.pdf
