LEDGS50L20 Banner Vision Accessories

LEDGS50L20 on Powermatic Associates
Banner

Part#:LEDGS50L20

Manufacturer:Banner

Alt. Part#:19032

Product Lifecycle:Active

Get a quick Quote!

Vision Light-50 mm Spot Light; Voltage: 12-30 V dc; Environmental Rating: IP67; Color: Green; 20 Deg Lens; 2 m (6.5 ft) Cable

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDGS50L20 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    272.1552 g
  • Country Of Origin
    US
  • Supply Voltage
    12-30 V dc
  • Feature: Quick Disconnect
    No
  • Max Op. Temperature (°C)
    50
  • Min Op. Temperature (°C)
    -40
  • Feature: Washdown Rated
    Yes
  • Lens Focusing Angle (°)/Field of View
    20
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 49.3
  • Max Current Color (mA)
    400
  • Color Technology
    Standard LED
  • Primary Housing Material
    Anodized Aluminum
  • Power
    DC
  • Connection Type
    Cable
  • Number of Input Pins/Conductors
    5
  • QD Type/Cable Length
    2 m
  • Color
    Green
  • Window Material
    Acrylic
  • Device Type
    Spot Light
  • Housing Style
    Circular Spot

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

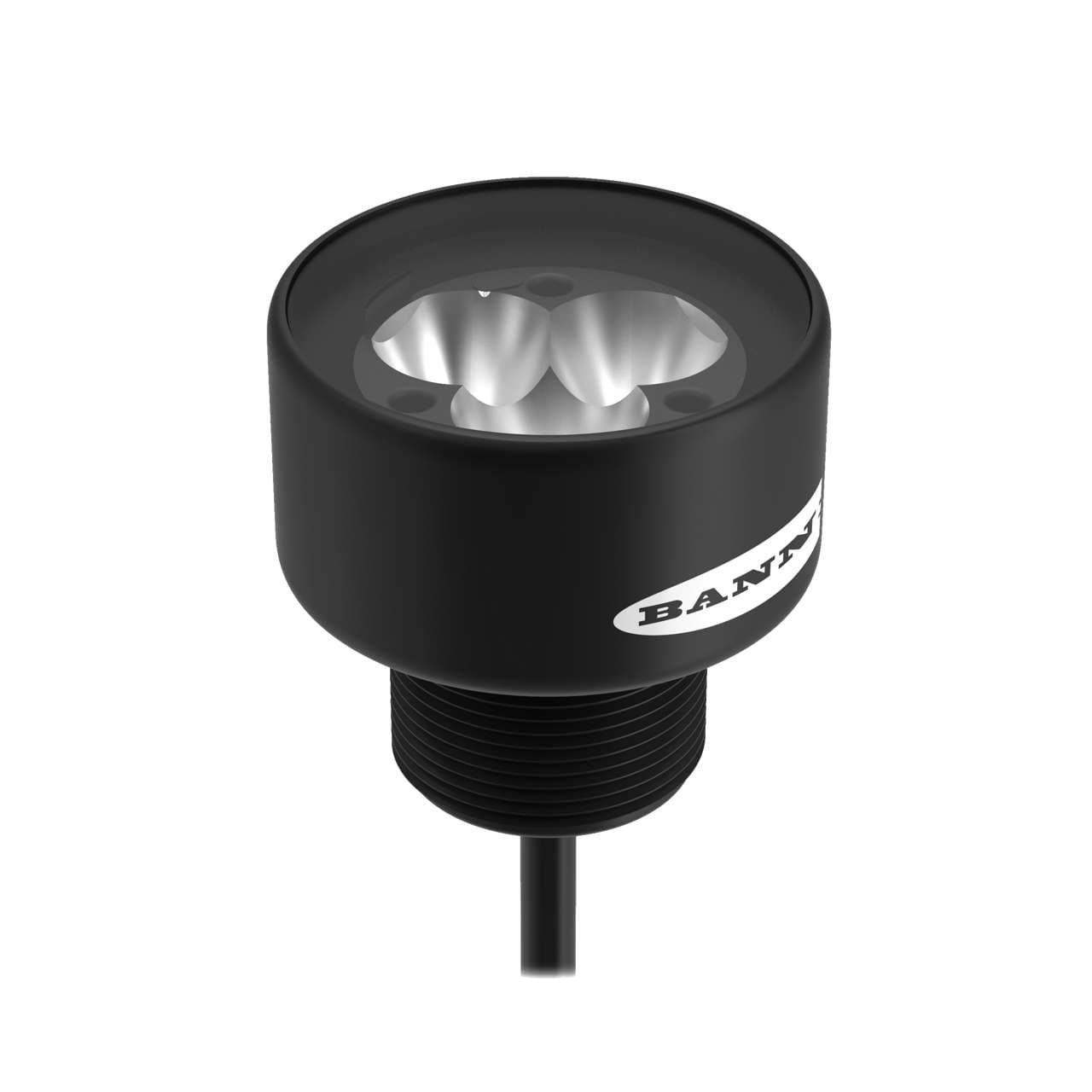

LEDGS50L20 Description

Banner Engineering LEDGS50L20 is an illumination unit designed for spotlighting applications. This unit emits a visible green light in a circular spot shape. It is constructed with a black anodized aluminum housing and an acrylic window for durability. The LEDGS50L20 is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads for easy connection. It operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. This model features an M30 threaded mount for secure installation and has a 50mm ring diameter. It is designed to withstand harsh environments with a degree of protection rated at IP67 and IP69K. The light intensity produced by the LEDGS50L20 is 190 lumens.

Related documents LEDGS50L20 Specs

LEDGS50L20 158249.pdf

Manufacturer warranty

$239.00
