LEDGRV62X62M Banner Vision Accessories

LEDGRV62X62M on Powermatic Associates
Banner

Part#:LEDGRV62X62M

Manufacturer:Banner

Alt. Part#:97382

Product Lifecycle:Active

Get a quick Quote!

VE Series 62 x 62 mm Ring Light; Visible Green LED; 24 V dc; 0.3 m (1 ft) Cable with 3-pin male Connector; Connects to VE Smart Camera

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDGRV62X62M Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    136.0776 g
  • Country Of Origin
    MX
  • Max Op. Temperature (°C)
    50
  • Supply Voltage
    24 V dc
  • Feature: Quick Disconnect
    Yes
  • Max Current Color (mA)
    130
  • Physical Dimensions (LxWxH or DxH mm)
    66.7 x 66.7 x 104.1
  • Number of Input Pins/Conductors
    3
  • Color Technology
    Standard LED
  • Window Material
    Acrylic
  • QD Type/Cable Length
    300 mm; M8 (Pico)
  • Connection Type
    Pigtail QD
  • Primary Housing Material
    Aluminum
  • Color
    Green
  • Device Type
    Ring Light
  • Housing Style
    Rectangular
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDGRV62X62M Description

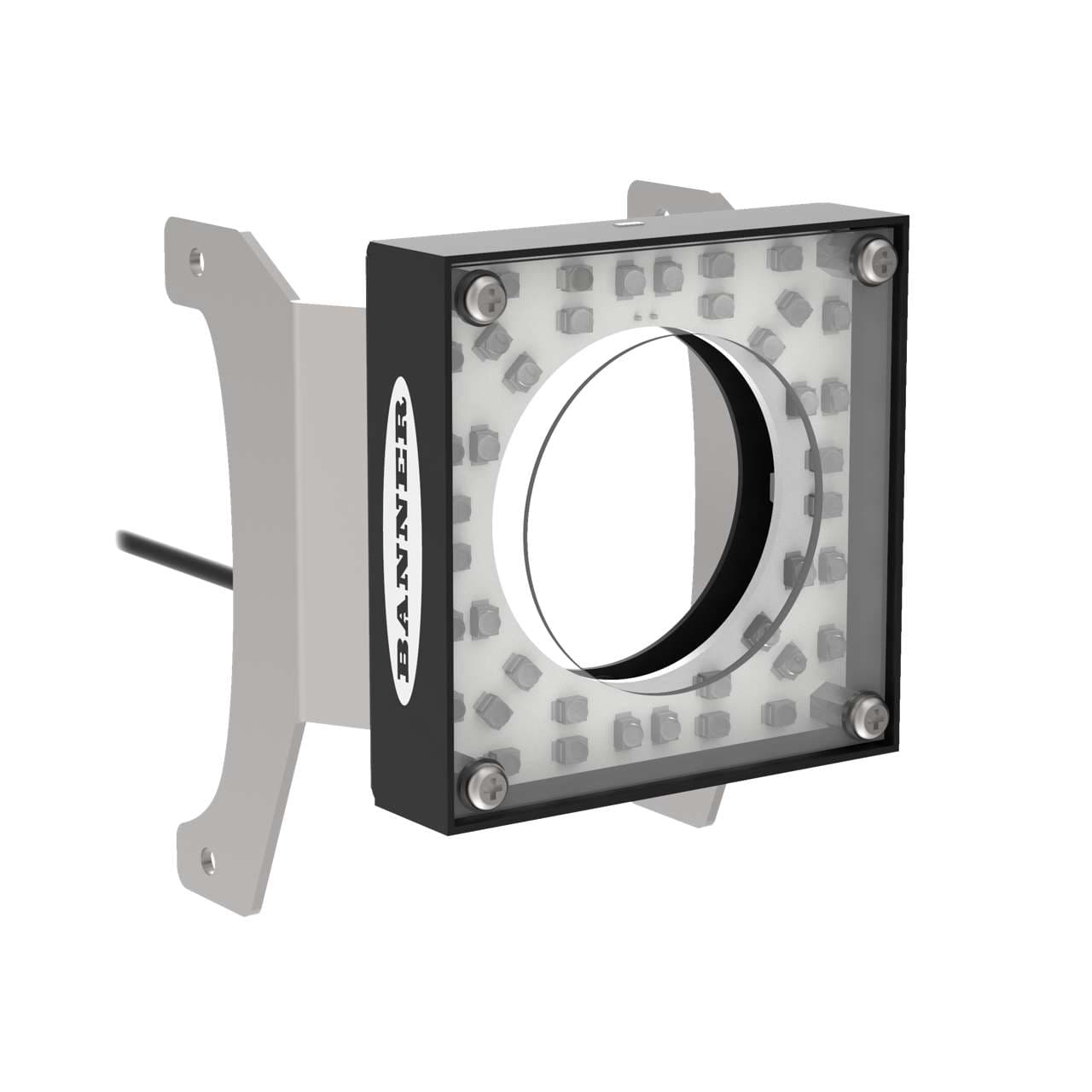

Banner Engineering LEDGRV62X62M is an illumination unit designed for ring illumination light applications. It features dimensions of 62x62mm and emits visible green light. The unit has a rectangular shape with a ring passage, constructed from an aluminum housing and an acrylic window for durability and clear light transmission. It comes pre-wired with a 12" / 300mm pigtail that terminates with a 3-pin Pico-style M8 connector for easy installation. The LEDGRV62X62M operates on a 24Vdc supply voltage.

Related documents LEDGRV62X62M Specs

LEDGRV62X62M 192656.pdf

Manufacturer warranty

$352.00

Request a quote, and we will send availability within minutes.
