LEDGLB145XW6-XQ Banner Vision Accessories

LEDGLB145XW6-XQ on Powermatic Associates
Banner

Part#:LEDGLB145XW6-XQ

Manufacturer:Banner

Alt. Part#:29658

Product Lifecycle:Active

Get a quick Quote!

Vision Light-Linear Back Light 145 mm; Voltage: 24 V dc; Environmental Rating: IP50 Color: Green; 5-pin M12 QD

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDGLB145XW6-XQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    44.905608 g
  • Country Of Origin
    US
  • Physical Dimensions (LxWxH or DxH mm)
    187.1 x 59.4 x 32.6
  • Max Op. Temperature (°C)
    50
  • Color Technology
    Standard LED
  • Supply Voltage
    24 V DC
  • Max Current Color (mA)
    500
  • Window Material
    Acrylic
  • Number of Input Pins/Conductors
    5
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Connection Type
    Integral QD
  • Color
    Green
  • Primary Housing Material
    Anodized Aluminum
  • Device Type
    Linear Array Backlight
  • Housing Style
    Linear Strip
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDGLB145XW6-XQ Description

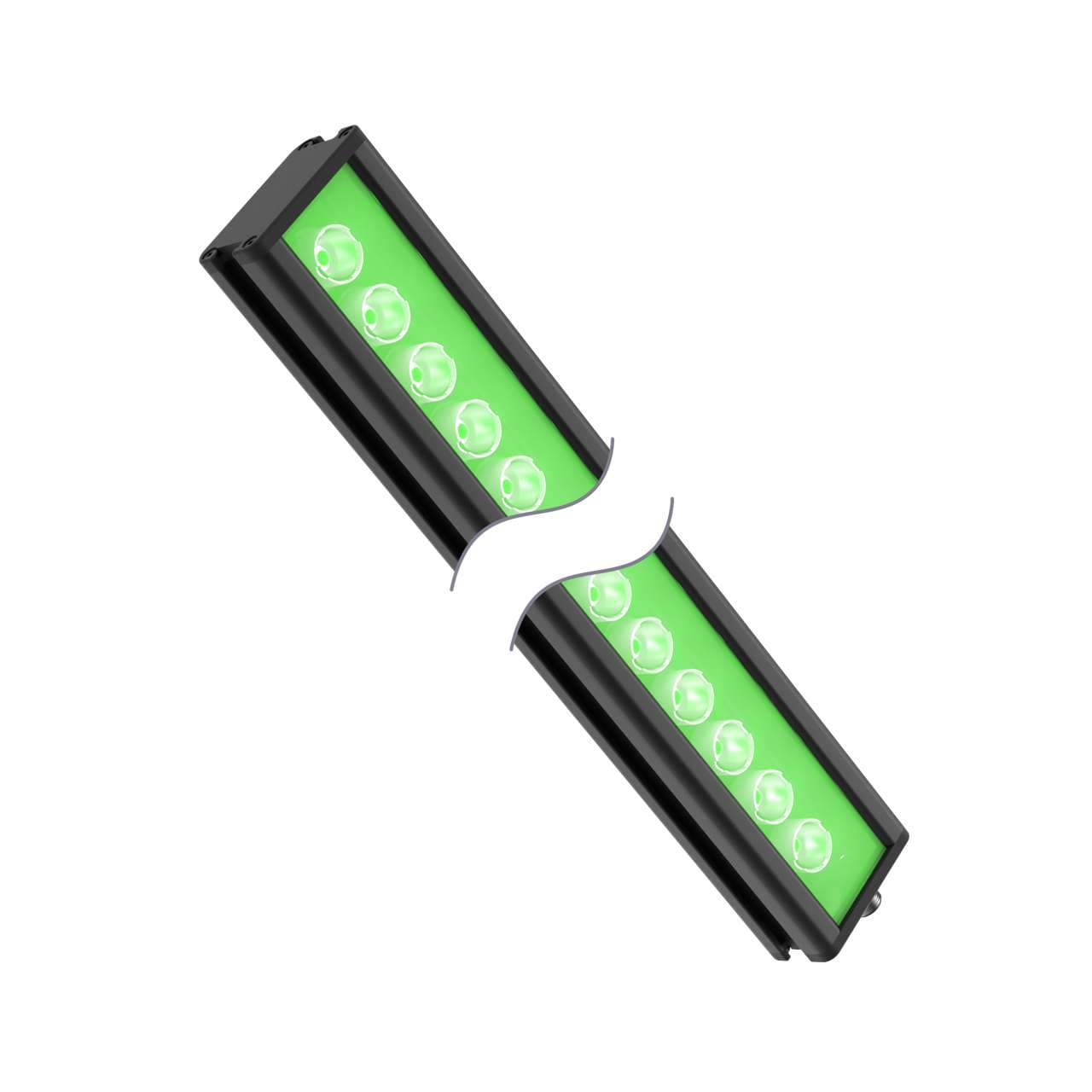

Banner Engineering LEDGLB145XW6-XQ is an illumination unit designed for linear array illumination backlight applications. It features a high-intensity design with a 145mm / 5.7" array length, emitting visible green light. The unit has a rectangular shape and is constructed with a black anodized aluminum housing and a white acrylic window. It comes pre-equipped with a 5-pin Euro-style M12 connector for connectivity. The supply voltage required for operation is 24Vdc, and it has a degree of protection rated at IP50.

Related documents LEDGLB145XW6-XQ Specs

LEDGLB145XW6-XQ 166314.pdf
