LEDBRV62X62M Banner Vision Accessories

LEDBRV62X62M on Powermatic Associates
Banner

Part#:LEDBRV62X62M

Manufacturer:Banner

Alt. Part#:97381

Product Lifecycle:Active

Get a quick Quote!

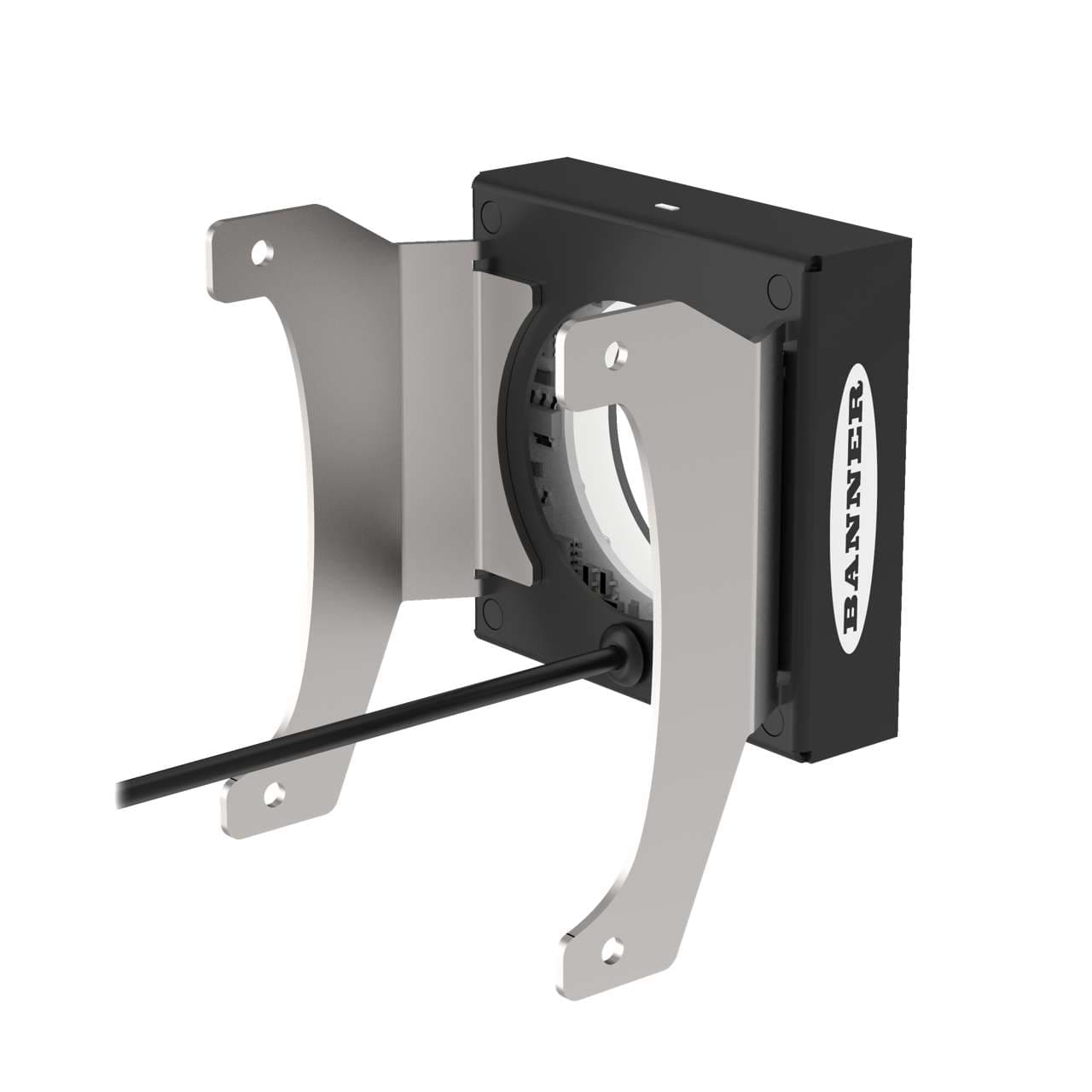

VE Series 62 x 62 mm Ring Light; Visible Blue LED; 24 V dc; 0.3 m (1 ft) Cable with 3-pin male Connector; Connects to VE Smart Camera

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDBRV62X62M Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    136.0776 g
  • Country Of Origin
    MX
  • Feature: Quick Disconnect
    Yes
  • Max Op. Temperature (°C)
    50
  • Supply Voltage
    24 V dc
  • Physical Dimensions (LxWxH or DxH mm)
    66.7 x 66.7 x 104.1
  • Max Current Color (mA)
    130
  • Color
    Blue
  • Number of Input Pins/Conductors
    3
  • QD Type/Cable Length
    300 mm; M8 (Pico)
  • Connection Type
    Pigtail QD
  • Color Technology
    Standard LED
  • Primary Housing Material
    Aluminum
  • Window Material
    Acrylic
  • Device Type
    Ring Light
  • Housing Style
    Rectangular
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDBRV62X62M Description

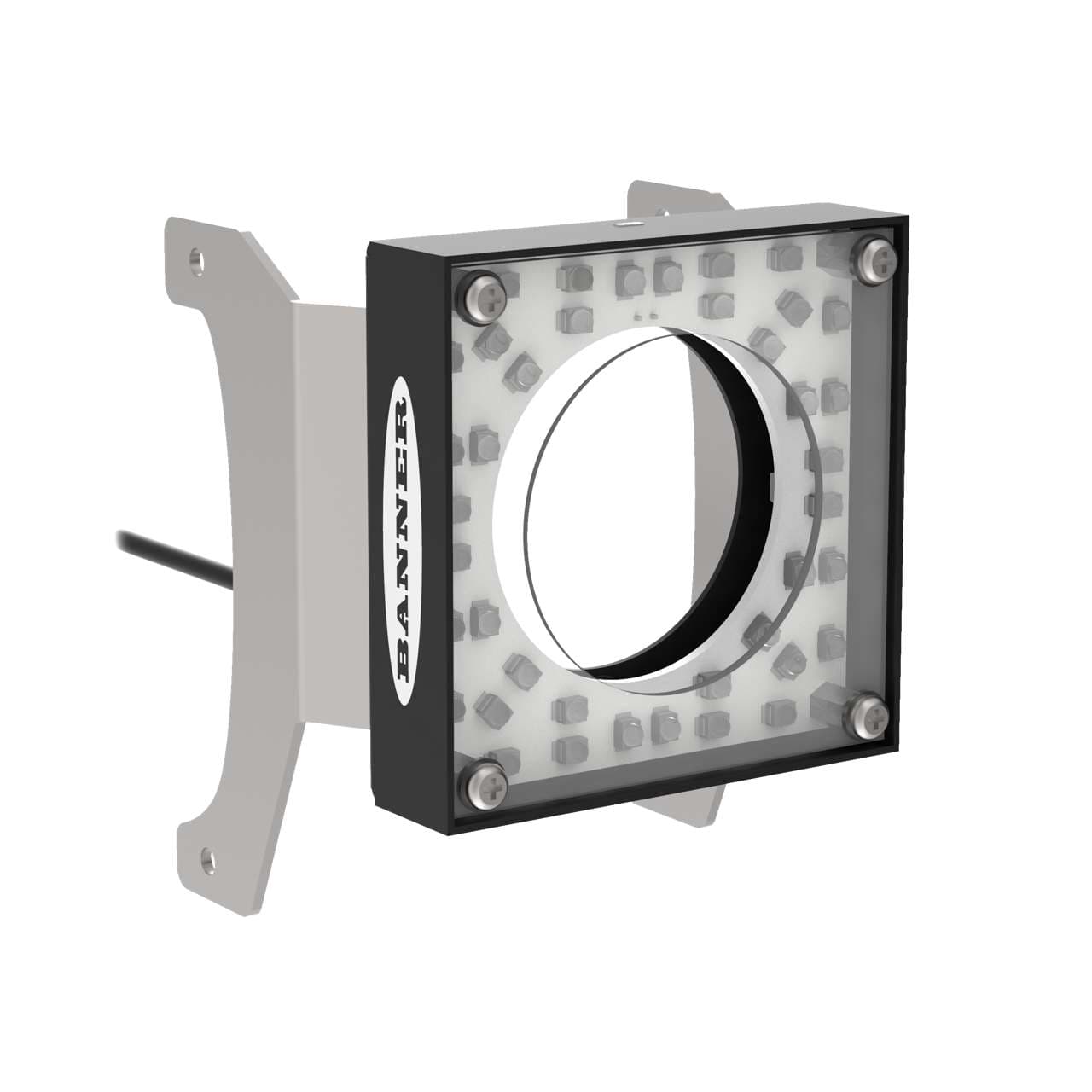

Banner Engineering LEDBRV62X62M is an illumination unit designed for ring illumination light applications. It features a rectangular shape with a ring passage, dimensions of 62x62mm, and emits visible blue light. The unit is constructed with an aluminium housing and an acrylic window for durability. It comes pre-wired with a 12" / 300mm pigtail that is terminated with a 3-pin Pico-style M8 connector, facilitating easy installation. The LEDBRV62X62M operates on a 24Vdc supply voltage.

Related documents LEDBRV62X62M Specs

LEDBRV62X62M 192656.pdf
