LEDBLB435XW6-XQ Banner Vision Accessories

LEDBLB435XW6-XQ on Powermatic Associates
Banner

Part#:LEDBLB435XW6-XQ

Manufacturer:Banner

Alt. Part#:29680

Product Lifecycle:Active

Get a quick Quote!

Vision Light-Linear Back Light 435 mm; Voltage: 24 V dc; Environmental Rating: IP50 Color: Blue; 5-pin M12 QD

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDBLB435XW6-XQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    1133.98 g
  • Country Of Origin
    MX
  • Max Op. Temperature (°C)
    50
  • Physical Dimensions (LxWxH or DxH mm)
    478.1 x 59.4 x 32.6
  • Supply Voltage
    24 V DC
  • Max Current Color (mA)
    1500
  • Number of Input Pins/Conductors
    5
  • Color
    Blue
  • Primary Housing Material
    Anodized Aluminum
  • Connection Type
    Integral QD
  • Color Technology
    Standard LED
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Housing Style
    Linear Strip
  • Device Type
    Linear Array Backlight
  • Power
    DC
  • Window Material
    Acrylic
  • Feature: Quick Disconnect
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDBLB435XW6-XQ Description

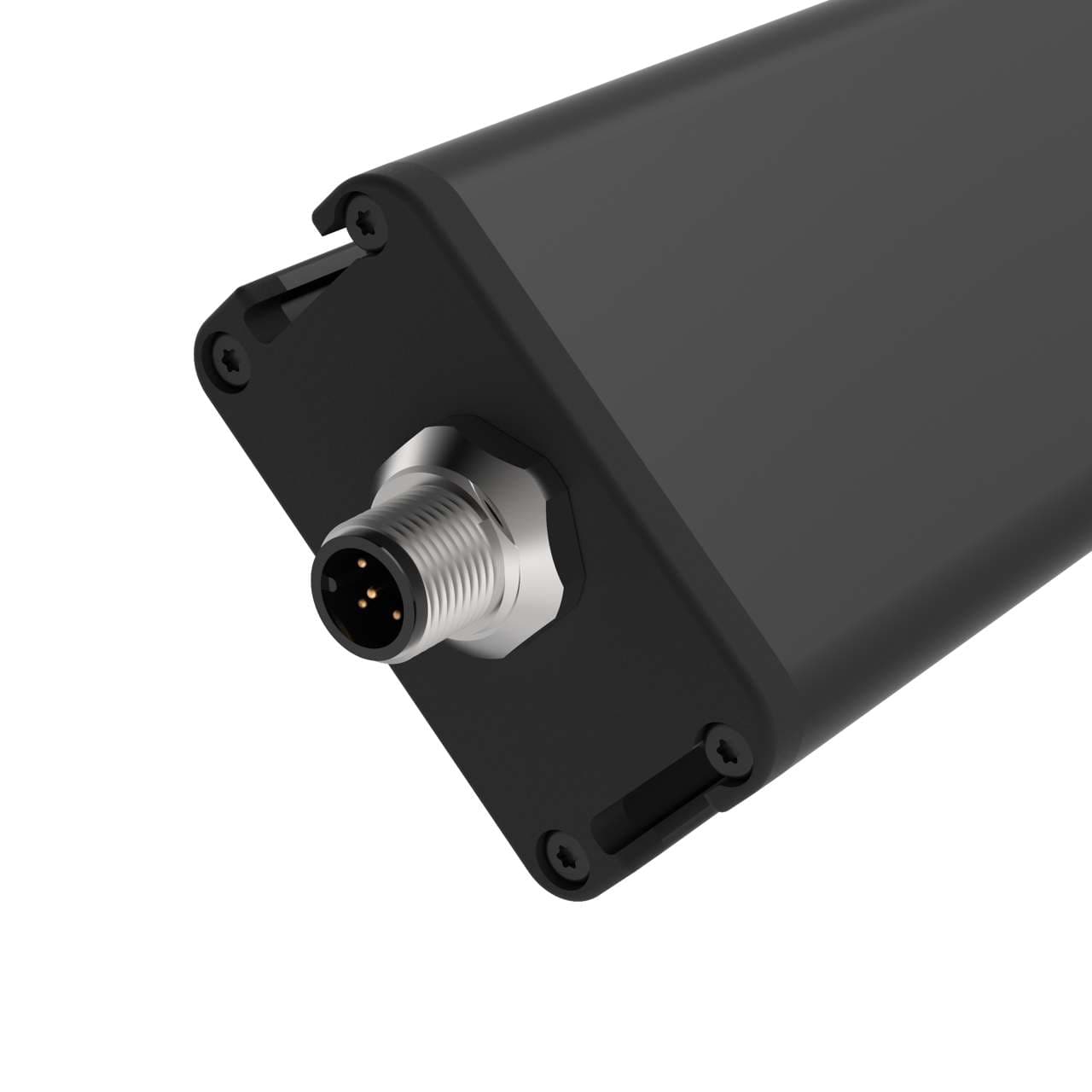

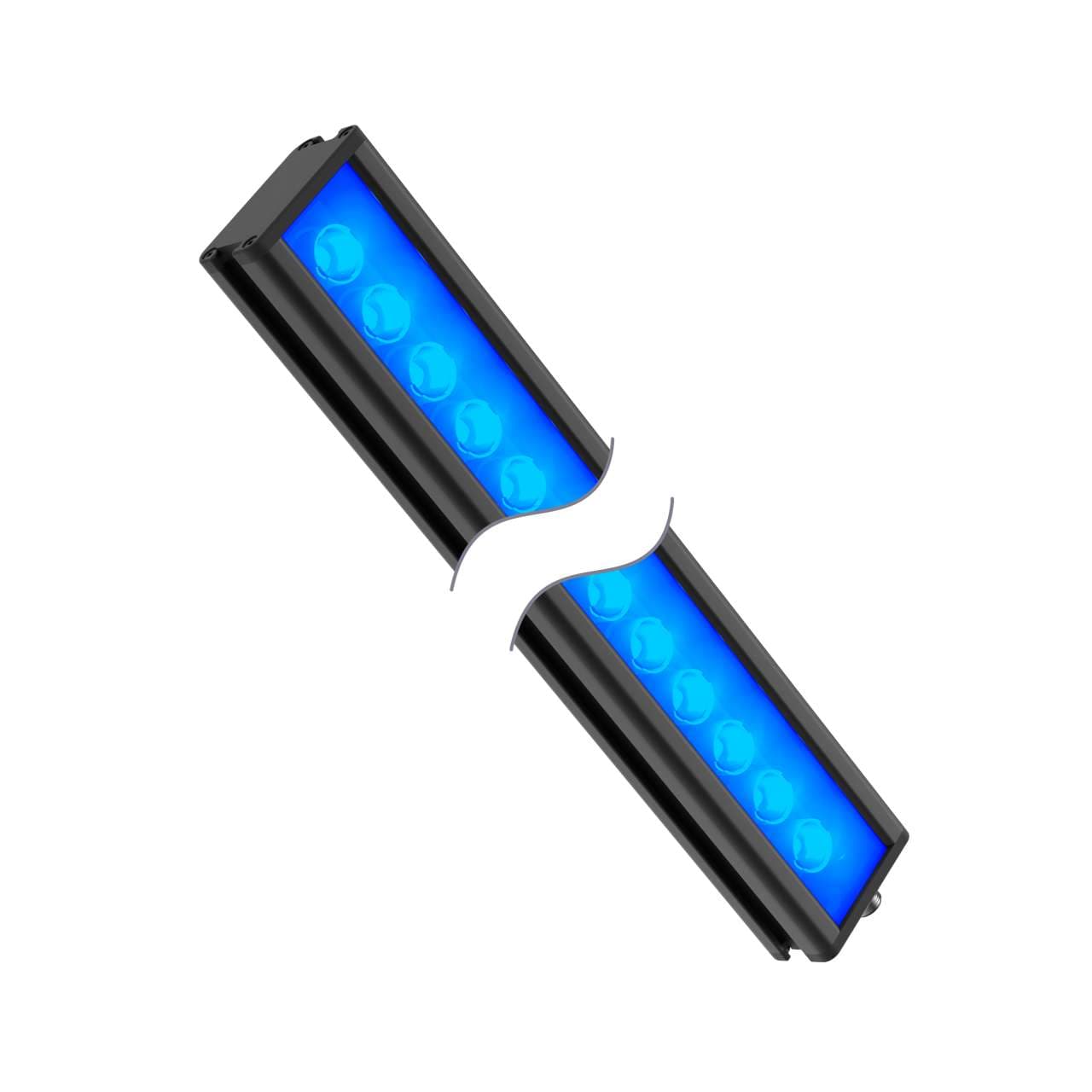

Banner Engineering LEDBLB435XW6-XQ is an illumination unit designed as a linear array illumination backlight. It features a high-intensity design suitable for various applications requiring visible blue light. The unit measures 435mm in array length, equivalent to 18 inches or 1.5 feet, and has a rectangular shape. It is constructed with a black anodized aluminum housing and a white acrylic window for durability and optimal light diffusion. This model is pre-equipped with a 5-pin Euro-style M12 connector for easy integration into existing systems. It operates on a 24Vdc supply voltage and offers a degree of protection rated at IP50, indicating a level of protection against dust ingress.

Related documents LEDBLB435XW6-XQ Specs

LEDBLB435XW6-XQ 166314.pdf

Manufacturer warranty

$1,323.00

Request a quote, and we will send availability within minutes.

Select Qty:

$1,323.00

$1,323.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
