LEDBLA870XP6-XQ Banner Vision Accessories

LEDBLA870XP6-XQ on Powermatic Associates
Banner

Part#:LEDBLA870XP6-XQ

Manufacturer:Banner

Alt. Part#:13537

Product Lifecycle:Active

Get a quick Quote!

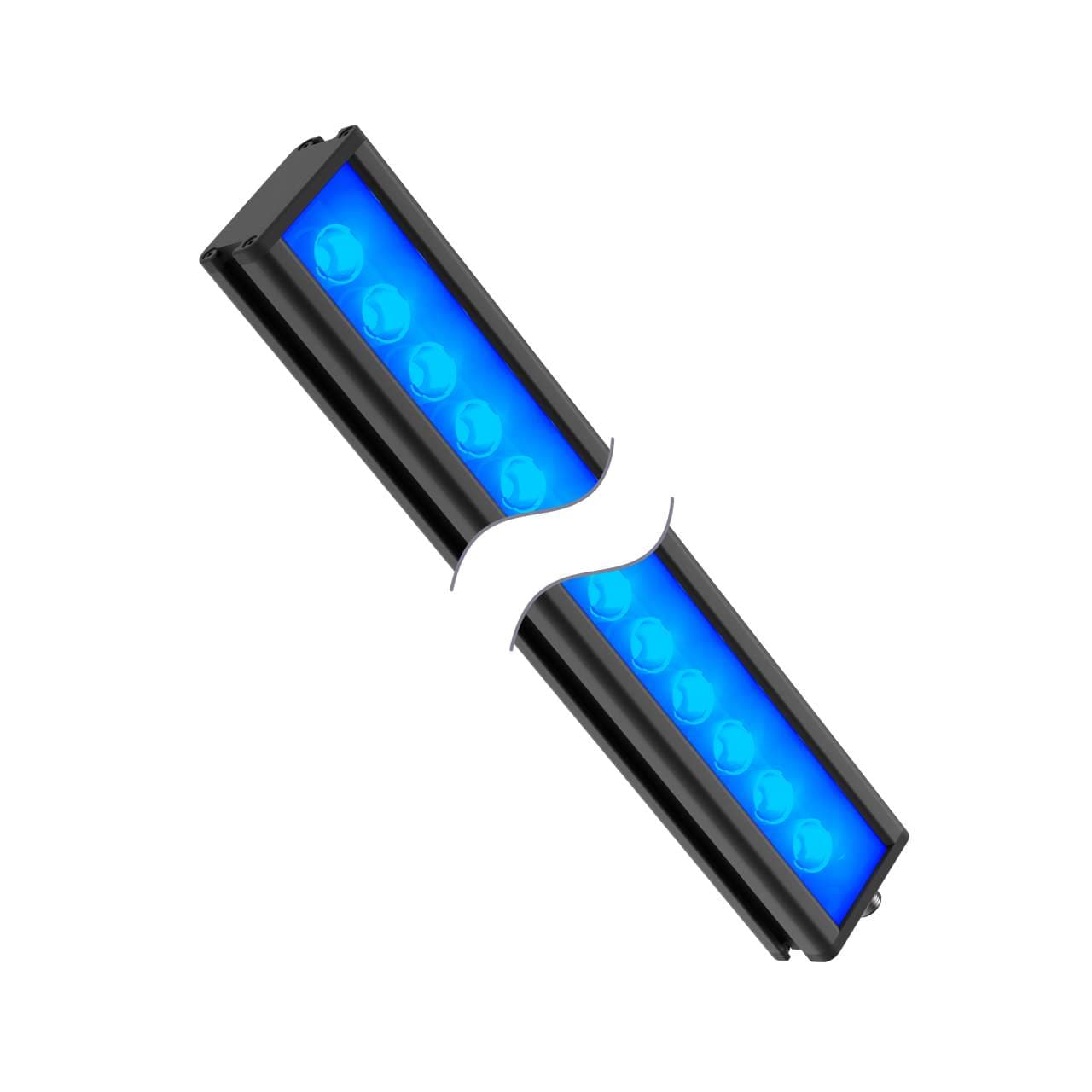

Vision Light - 870 mm Linear Array - IP50; 36 High Intensity Blue LEDs - 24 V dc; Clear Plastic Window; Requires Cable MQDC20-xxx

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDBLA870XP6-XQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    2066.11156 g
  • Country Of Origin
    US
  • Lens Focusing Angle (°)/Field of View
    6.5
  • Physical Dimensions (LxWxH or DxH mm)
    914.6 x 59.4 x 32.6
  • Supply Voltage
    24 V DC
  • Max Op. Temperature (°C)
    50
  • Max Current Color (mA)
    3000
  • Color Technology
    Standard LED
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Device Type
    Bar Light
  • Window Material
    Acrylic
  • Number of Input Pins/Conductors
    5
  • Connection Type
    Integral QD
  • Primary Housing Material
    Anodized Aluminum
  • Color
    Blue
  • Housing Style
    Linear Strip
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDBLA870XP6-XQ Description

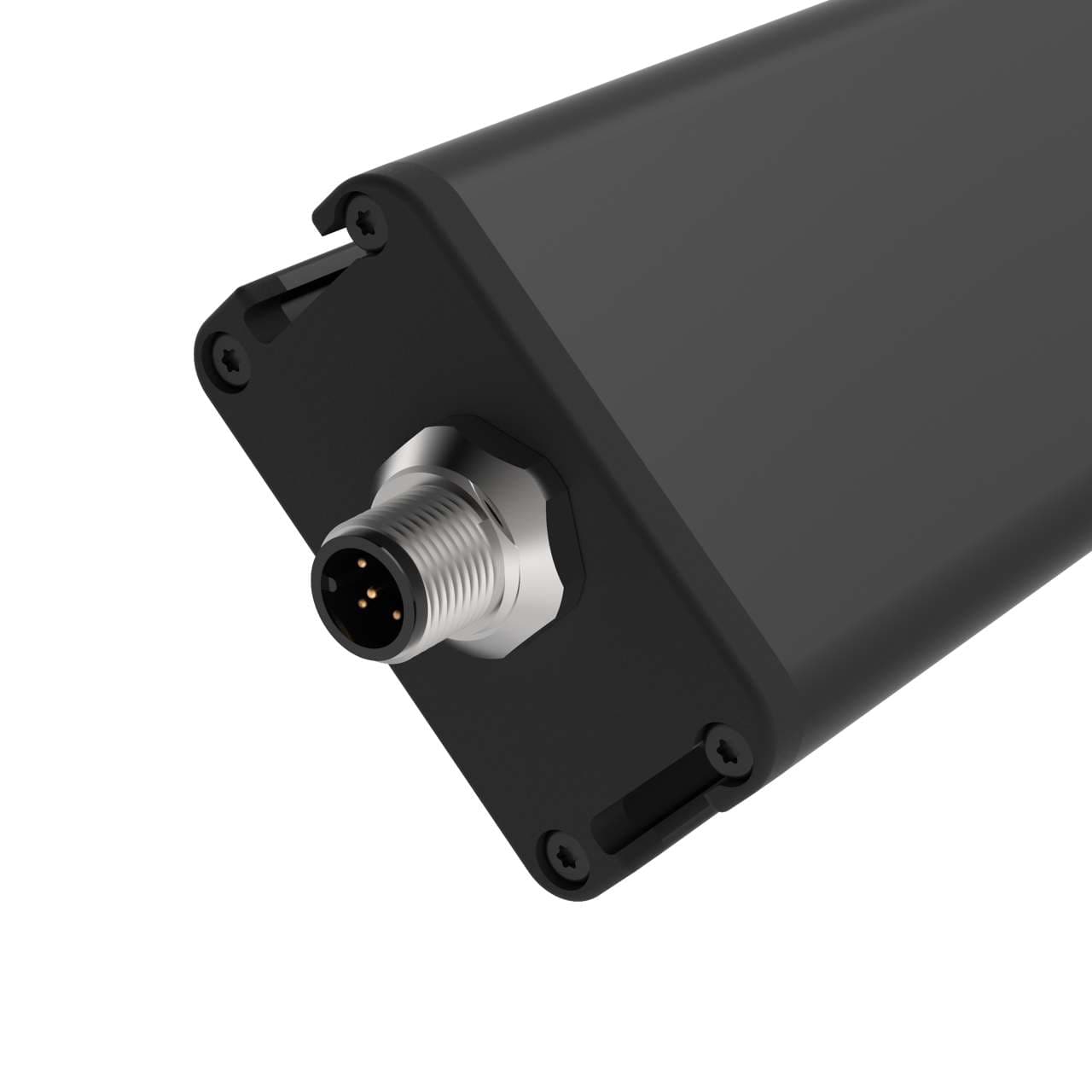

Banner Engineering LEDBLA870XP6-XQ is an illumination unit designed for linear array illumination backlight applications. It features a high-intensity design with a visible blue light output. The unit measures 870mm in length, equivalent to 34.2 inches or approximately 3 feet, and has a rectangular shape. Constructed with a black anodized aluminum housing and an acrylic window, it ensures durability and clarity. This model is pre-equipped with a 5-pin Euro-style M12 connector for easy integration into existing systems. It operates on a 24Vdc supply voltage and is rated with a degree of protection of IP50, indicating a level of protection against dust ingress.

Related documents LEDBLA870XP6-XQ Specs

LEDBLA870XP6-XQ 151466.pdf

Manufacturer warranty

$2,782.00

Request a quote, and we will send availability within minutes.

Select Qty:

$2,782.00

$2,782.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty
