LEDBLA290XG6-XQ Banner Vision Accessories

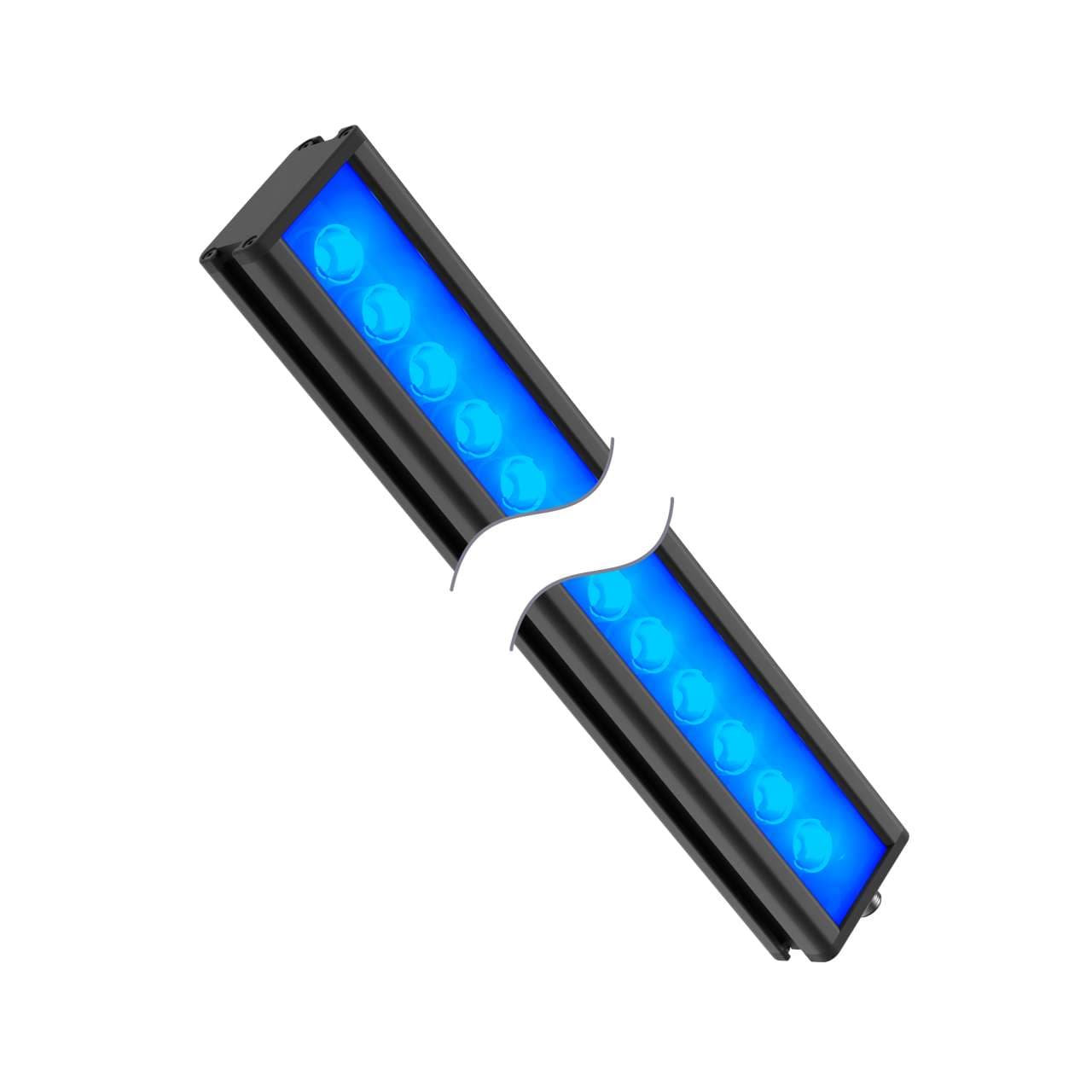

Banner LEDBLA290XG6-XQ Vision Light - 290 mm Linear Array - IP50; 12 High Intensity Blue LEDs - 24 V dc; Clear Glass Window; Requires Cable MQDC20-xxx
Banner

Part#:LEDBLA290XG6-XQ

Manufacturer:Banner

Alt. Part#:13527

Product Lifecycle:Active

Get a quick Quote!

Vision Light - 290 mm Linear Array - IP50; 12 High Intensity Blue LEDs - 24 V dc; Clear Glass Window; Requires Cable MQDC20-xxx

About the manufacturer: Banner is one of the manufacturers that offers Vision Accessories that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LEDBLA290XG6-XQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    861.8248 g
  • Country Of Origin
    US
  • Lens Focusing Angle (°)/Field of View
    6.5
  • Max Op. Temperature (°C)
    50
  • Physical Dimensions (LxWxH or DxH mm)
    332.6 x 59.4 x 32.6
  • Max Current Color (mA)
    1000
  • Power
    DC
  • Supply Voltage
    24 V DC
  • Color Technology
    Standard LED
  • Color
    Blue
  • Primary Housing Material
    Anodized Aluminum
  • Window Material
    Glass
  • Housing Style
    Linear Strip
  • Number of Input Pins/Conductors
    5
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Device Type
    Bar Light
  • Connection Type
    Integral QD

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LEDBLA290XG6-XQ Description

Banner Engineering LEDBLA290XG6-XQ is an illumination unit designed for linear array illumination backlight applications. It features a high-intensity design with a 290mm (11.4 inches or approximately 1 foot) array length. The unit emits visible blue light and has a rectangular shape. It is constructed with a black anodized aluminum housing and a glass window for durability. This model is pre-equipped with a 5-pin Euro-style M12 connector for connectivity. It operates on a 24Vdc supply voltage and has an IP50 degree of protection.

Related documents LEDBLA290XG6-XQ Specs

LEDBLA290XG6-XQ 151466.pdf
