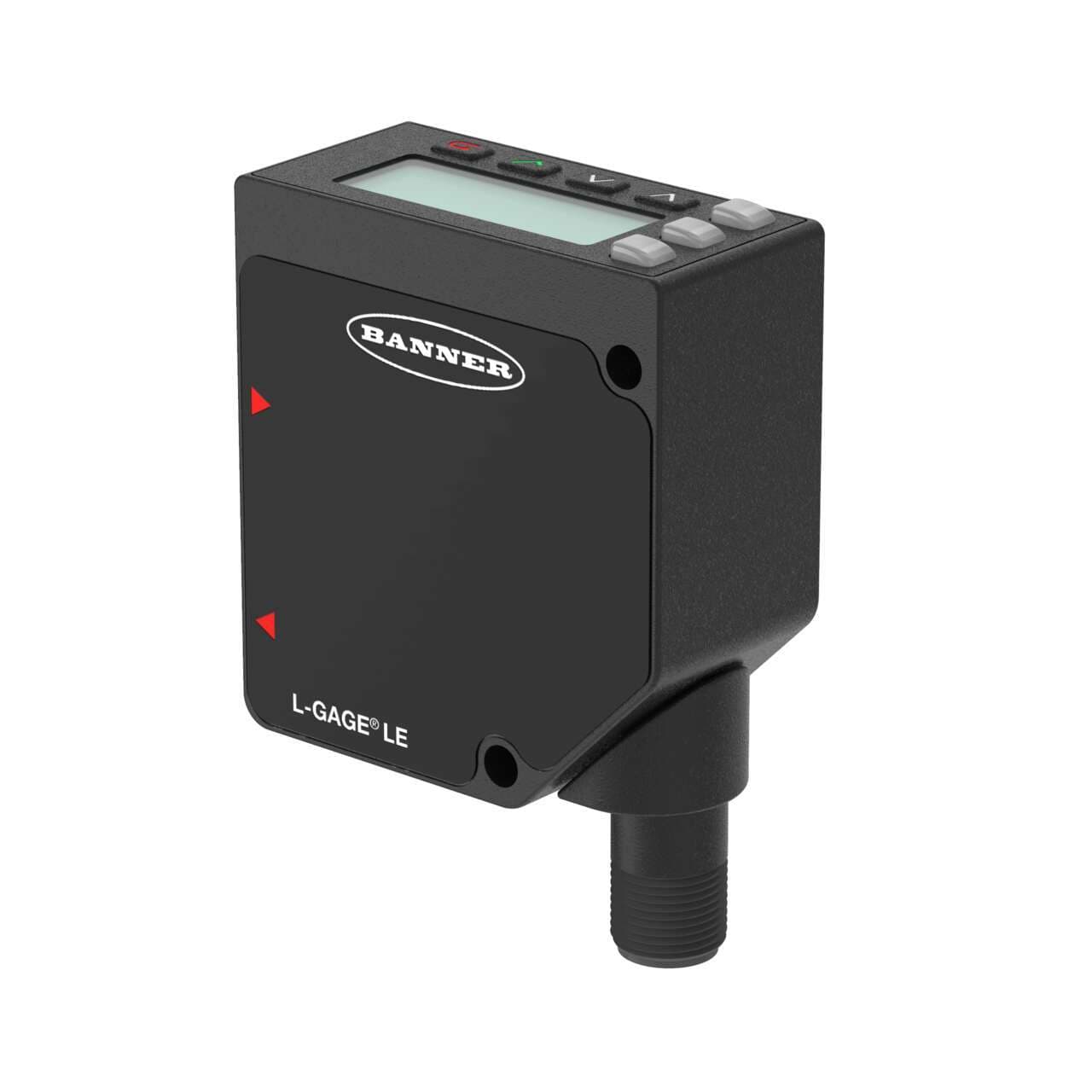

LE550KC1Q Banner Measurement Sensors

Product Details

• Weight
  90.7184 g
• Country Of Origin
  US
• RS-422
  No
• Profibus
  No
• 1-wire Serial Interface
  No
• Wireless
  No
• RS-485
  No
• SSI
  No
• IO Link
  Yes
• RS-232
  No
• Feature: Remote Teach
  Yes
• PROFINET
  No
• Feature: Health/ Marginal Signal Output
  Yes
• Common Ethernet Protocol
  No
• Feature: Chemical Resistant
  No
• Discrete Output Hysteresis (mm)
  Automatically adjusted
• Power/Current Consumption (exclusive of load)
  70 mA @ 24 V dc
• Feature: Timing (Hold/Delay)
  Yes
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
• Remote Teach and Laser Control Input Impedence
  10 kΩ min.
Max Off-state Leakage Current (µA)
PNP: <50 @ 30 V dc; Push/Pull: N/A
Max Ambient Light (Lux)
5000
Alarm Output (mA)
100
Laser Control
Yes
Spot Size (@ Reference Distance)
4.9 mm x 12.1 mm @ 1 m
Minimum Window Size (mm)
10
Warm-up Time (minutes)
10
Minimum Response Time (ms)
2
Window Material
Acrylic
Max Op. Relative Humidity Non-Condensing (%)
90 at 55°C
Min Operating Temperature (°C)
-20
IP Rating
IP67
Max Operating Temperature (°C)
55
Storage Temperature (°C)
-30 to 65
NEMA Rating
NEMA 6
Output Protection
Protected against continuous overload and short circuit
Discrete (Switched) Outputs
1 NPN/PNP Configurable; 1 PNP
Max Discrete (Switched) Output (mA)
100
Temperature Effect (mm/°C)
+/- 0.25 mm/°C from 100 to 600 mm, +/- 0.5 mm/°C at 1000 mm
Adjustments
Push Button; Remote Teach
Output Saturation Voltage PNP Outputs
<2 V
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Vibration
MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Sensing Beam Wavelength (nm)
650
Delay at Power-up (ms)
3000
Number of Pins
5
Power Supply
12-30 V dc
Max Sensing Distance (mm)
1000
Minimum Sensing Distance (mm)
100
Analog Resolution/Discrete Repeatability
100 mm to 600 mm: < 0.5; 600 mm to 1000 mm: < 1
Quick Disconnect Type
M12 (Euro)
Connection
Integral QD
Laser Classification
Class 1
Indicator
LCD; LED(s)
Input/Output
Discrete
Primary Housing Material
Zinc Alloy Die-Cast
Housing Style
Rectangular
PC Configurable
No
Sensing Mode (Detailed)
Triangulation
Max Measurement Range
>500 mm - <=1000 mm
Sensing Mode (General)
Proximity
Device Type
Sensor
Power
DC
Sensing Beam
Visible Red Laser
Main function
Sensor (Displacement)
Display
LCD 2 lines x 8 characters
Primary brand
Banner Engineering
Design
triangulation system LCD display teach mode
Shape
Rectangular
Degree of protection
IP67 NEMA 6
Order code / Manufacturer SKU
97765
Product series / family name
L-GAGE series
Supply voltage (DC)
12Vdc-30Vdc (24Vdc nom.)
Sensing distance
10cm...1m
Communication protocol
IO-Link
Material
Die-cast Zinc alloy housing Acrylic window
Protection functions
Overload Short-circuit
Sub-range name
LE
Light Color
Visible class 1 red Laser
Ambient air temperature for operation
-20...+55 °C
Functions
Triangulation class 1 Laser displacement sensor green LED (power ON) yellow LED (analog output ON) yellow LED (discrete output ON)
Digital outputs
1 x digital output (PNP/NPN transistor)
Wavelength
650 nm
Connection type
Pre-equipped with 5-pin Euro-style M12 connector
Compliant with standard(s)
cULus CE
