LE550I W-30 Banner Sensors & Transducers

Name: LE550I W-30
Brand: Banner

Part#:LE550I W-30

Manufacturer:Banner

Category:Sensors & Transducers

Product Lifecycle:Active

Get a quick Quote!

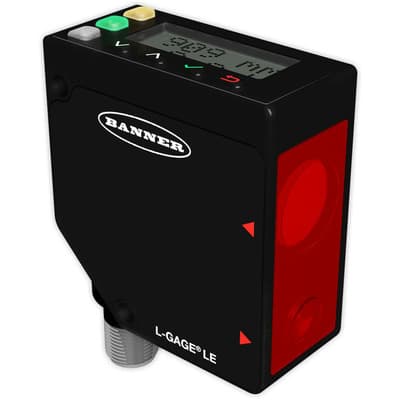

Triangulation class 2 Laser displacement sensor/transmitter with triangulation system + LCD display + teach mode - Banner Engineering (L-GAGE series - LE) - Part #86749 - Sensing range 10cm...1m - Visible class 2 red Laser light (650nm) - 1 x digital outp

About the manufacturer: Banner is one of the manufacturers that offers Sensors & Transducers that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the LE550I W-30 Banner price in the box on the right side or send a quick quote.

Product Details

Main function
Sensor (Displacement)
Design
triangulation system LCD display teach mode
Shape
Rectangular
Digital outputs
1 x digital output (PNP/NPN transistor)
Equivalent to
LE550IW30
Primary brand
Banner Engineering
Display
LCD 2 lines x 8 characters
Functions
Triangulation class 2 Laser displacement sensor/transmitter green LED (power ON) yellow LED (analog output ON) yellow LED (discrete output ON)
Light Color
Visible class 2 red Laser
Degree of protection
IP67 NEMA 6
Product series / family name
L-GAGE series
Sub-range name
LE
Supply voltage (DC)
12Vdc-30Vdc (24Vdc nom.)
Sensing distance
10cm...1m
Wavelength
650 nm
Analog outputs
1 x analog output (4-20mA)
Material
Die-cast Zinc alloy housing Acrylic window
Ambient air temperature for operation
-20...+55 °C
Connection type
Pre-wired with 30ft / 9m cable terminated with bare end flying leads
Compliant with standard(s)
cULus CE

Protection functions

Overload Short-circuit

Order code / Manufacturer SKU

86749

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Relevant products

LE550IC1 W/30

Verified stock: 0

Banner Engineering LE550IC1 W/30 is a Class 1 laser displacement sensor/transmitter belonging to the LE series. It features a triangulation system with an LCD display and TEACH mode for easy setup. The sensor emits a visible class 1 red laser with a wavelength of 650 nm for displacement measurement. It is designed with a rectangular shape and constructed from a die-cast zinc alloy housing with an acrylic window. This model is pre-wired with a 30ft / 9m cable terminated with bare end flying leads for connectivity. It offers protection against overload and short-circuit issues. The sensor operates on a supply voltage of 12Vdc to 30Vdc, with 24Vdc as the nominal voltage. It can function within an ambient air temperature range of -20 to +55 °C. The LE550IC1 W/30 is equipped with one analog output (4-20mA) and one digital output (PNP/NPN transistor), supporting a sensing distance from 10cm to 1m. It is rated with a degree of protection of IP67 and NEMA 6, indicating a high level of protection against dust and water ingress.

Banner

LE550UQ

Verified stock: 5

Laser Displacement Sensor; Range: 100-1000 mm; Input: 12-30 V dc; Output: Analog: 0-10 V; Discrete: NPN/PNP Configurable; M12 Integral QD

Banner

LE550IQ-93235

Verified stock: 0

Laser Displacement Sensor; Range: 100-1000 mm; Input: 12-30 V dc; Output: Analog: 4-20 mA; Discrete:NPN/PNP Configurable; M12 Integral QD; SPRF 26205

Banner

LE550IC1QP

Verified stock: 0

Laser Displacement Sensor; Range: 100-1000 mm; Input: 12-30 V dc; Output: Analog: 4-20 mA; Discrete: NPN/PNP Configurable; Class 1 Laser; 150 mm (6 in) M12 Pigtail QD

Banner
