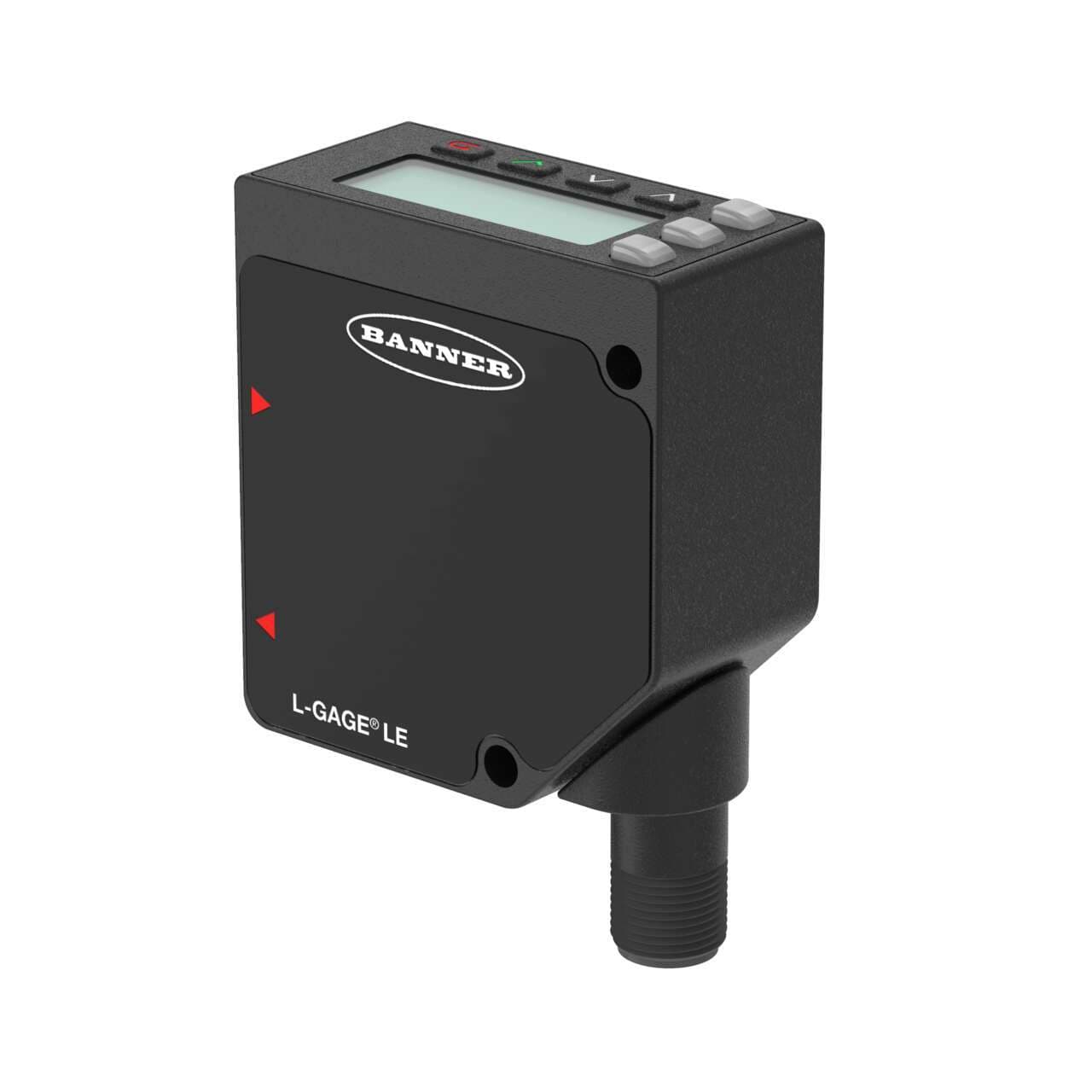

LE550IC1Q Banner Measurement Sensors

Product Details

• Weight
  204.1164 g
• Country Of Origin
  US
• SSI
  No
• Profibus
  No
• 1-wire Serial Interface
  No
• RS-422
  No
• RS-232
  No
• PROFINET
  No
• Feature: Health/ Marginal Signal Output
  Yes
• Common Ethernet Protocol
  No
• Feature: Timing (Hold/Delay)
  Yes
• Feature: Chemical Resistant
  No
• Feature: Remote Teach
  Yes
• Max Off-state Leakage Current (µA)
  NPN: < 200 at 30 V dc; PNP: < 10 at 30 V dc
• Power/Current Consumption (exclusive of load)
  70 mA @ 24 V dc
• Max Ambient Light (Lux)
  5000
• Alarm Output (mA)
  100
• Discrete Output Hysteresis (mm)
  Automatically adjusted
• Minimum Window Size (mm)
  10
• Spot Size (@ Reference Distance)
  4.9 mm x 12.1 mm @ 1 m
Analog Linearity (mm)
Linearity is the lesser of Accuracy or 0.5% of full scale range (± 4.5 mm) at any given distance
Minimum Response Time (ms)
2
Remote Teach and Laser Control Input Impedence
18 kΩ min. (65 kΩ min at 5 V dc)
Max Op. Relative Humidity Non-Condensing (%)
90 at 55°C
IP Rating
IP67
Output Protection
Protected against continuous overload and short circuit
Max Operating Temperature (°C)
55
Discrete (Switched) Outputs
1 NPN/PNP Configurable
Max Discrete (Switched) Output (mA)
100
Wireless
No
RS-485
No
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
IO Link
No
Laser Control
Yes
Warm-up Time (minutes)
10
Window Material
Acrylic
Min Operating Temperature (°C)
-20
Storage Temperature (°C)
-30 to 65
NEMA Rating
NEMA 6
Output Saturation Voltage PNP Outputs
< 3 V at 100 mA
Number of Pins
5
Analog Current Output Rating
1 kΩ max @24 V dc, max load resistance = [(Vcc-4.5 V)/0.02 A] Ω
Vibration
MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Output Saturation Voltage NPN Outputs
< 1.6 V at 100 mA
Temperature Effect (mm/°C)
+/- 0.25 mm/°C from 100 to 600 mm, +/- 0.5 mm/°C at 1000 mm
Adjustments
Push Button; Remote Teach
Sensing Beam Wavelength (nm)
650
Delay at Power-up (ms)
2000
Connection
Integral QD
Max Sensing Distance (mm)
1000
Power Supply
12-30 V dc
Minimum Sensing Distance (mm)
100
Analog Resolution/Discrete Repeatability
100 mm to 600 mm: < 0.5; 600 mm to 1000 mm: < 1
Analog Output Configuration
4-20 mA
Quick Disconnect Type
M12 (Euro)
Indicator
LCD; LED(s)
Input/Output
Analog & Discrete
Device Type
Sensor
Housing Style
Rectangular
Sensing Mode (General)
Proximity
Laser Classification
Class 1
Sensing Mode (Detailed)
Triangulation
Primary Housing Material
Zinc Alloy Die-Cast
PC Configurable
No
Max Measurement Range
>500 mm - <=1000 mm
Sensing Beam
Visible Red Laser
Power
DC
Sub-range name
LE
Main function
Sensor (Displacement)
Primary brand
Banner Engineering
Supply voltage (DC)
12Vdc-30Vdc (24Vdc nom.)
Shape
Rectangular
Digital outputs
1 x digital output (PNP/NPN transistor)
Compliant with standard(s)
cULus CE
Display
LCD 2 lines x 8 characters
Wavelength
650 nm
Protection functions
Overload Short-circuit
Product series / family name
L-GAGE series
Light Color
Visible class 1 red Laser
Ambient air temperature for operation
-20...+55 °C
Sensing distance
10cm...1m
Analog outputs
1 x analog output (4-20mA)
Degree of protection
IP67 NEMA 6
Design
triangulation system LCD display teach mode
Connection type
Pre-equipped with 5-pin Euro-style M12 connector
Order code / Manufacturer SKU
95373
Functions
Triangulation class 1 Laser displacement sensor/transmitter green LED (power ON) yellow LED (analog output ON) yellow LED (discrete output ON)
Material
Die-cast Zinc alloy housing Acrylic window
