K90PLRGB7QP Banner Signal Beacons

Name: K90PLRGB7QP
Brand: Banner

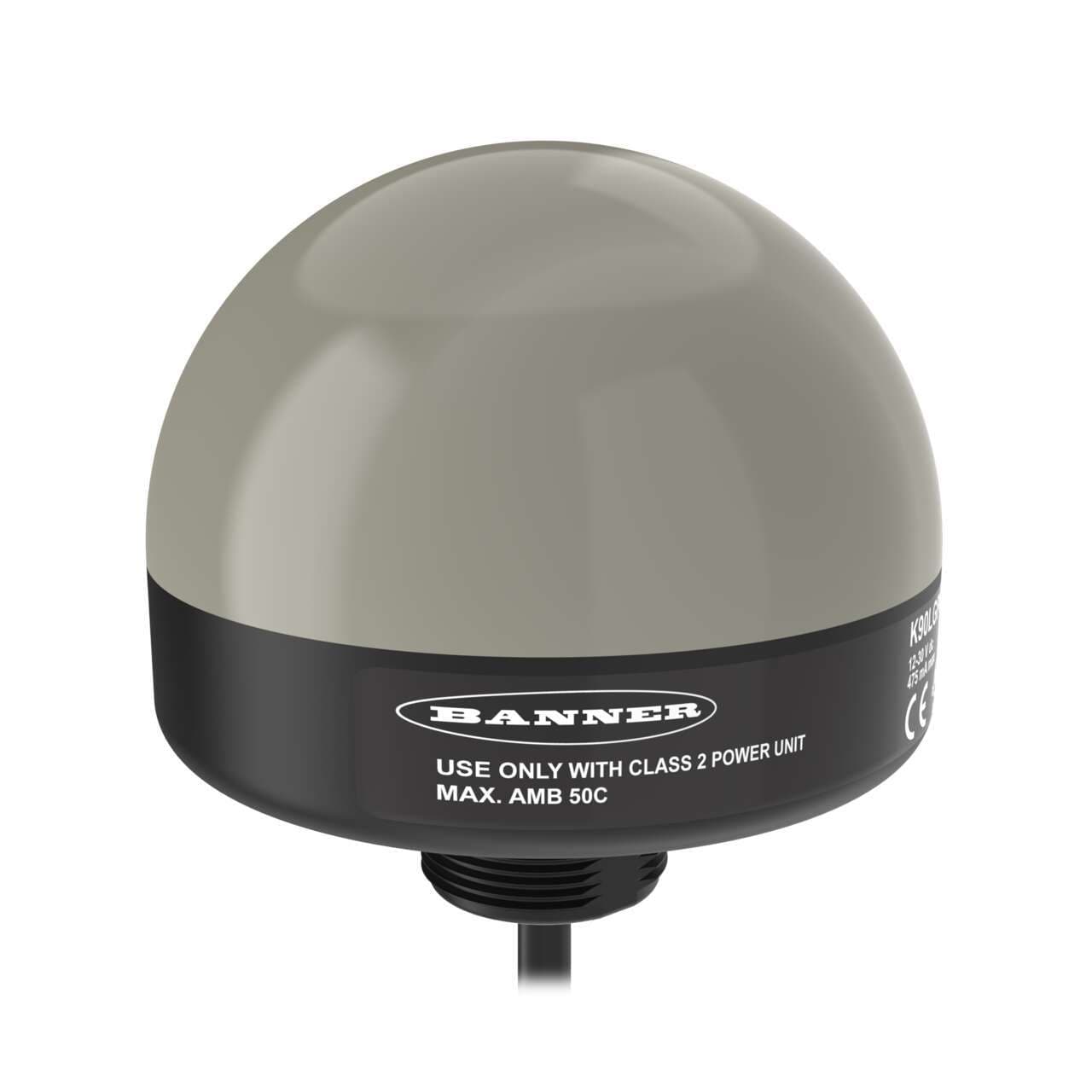

Banner K90PLRGB7QP K90 Pro Series: 7-color RGB Indicator; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67; Input: Bimodal; Colors: Multicolor; 150 mm (6 in) 5-pin M12 PVC Pigtail QD

Part#:K90PLRGB7QP

Manufacturer:Banner

Alt. Part#:810862

Product Lifecycle:Active

Get a quick Quote!

K90 Pro Series: 7-color RGB Indicator; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67; Input: Bimodal; Colors: Multicolor; 150 mm (6 in) 5-pin M12 PVC Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the K90PLRGB7QP Banner price in the box on the right side or send a quick quote.

Product Details

Weight
217.72416 g
Country Of Origin
MX
Modbus RTU
No
IO Link
No
USB
No
Feature: Quick Disconnect
Yes
Feature: Chemical Resistant
No
Min Op. Temperature (°C)
-40
Primary Housing Color
Black
Max Op. Temperature (°C)
50
Physical Dimensions (LxWxH or DxH mm)
90.0 x 87.0
Pro-Editor Compatible (Discrete)
Yes
Multi-Color Device
Single Color On
Wireless
No
Feature: Audible
No
Feature: Hazardous Area
No
Storage Temp (°C)
-40 to 70
Primary Window Material
Polycarbonate Diffused
NEMA Type and UL Type Rating
NEMA and UL 4X, 13
Environmental Rating
IP67

Supply Voltage

10-30 V dc

Input Type

Bimodal (PNP/NPN)

Max Op. Relative Humidity Non-Condensing (%)

90% @ 50°C

Max Input Response Time (ms)

250

Wire Selectable Function

Multi-Function

Lumens Color 7

93.0

Number of Input Pins/Conductors

Color Option 7

Cyan

Max Current Color (mA)

415

Color 7 - Wavelength/Color Temp/Coordinates

0.164, 0.343

Color Option 6

Magenta

Color 6 - Wavelength/Color Temp/Coordinates

0.404, 0.186

Lumens Color 6

49.9

Lumens Color 5

107.9

Color Option 5

White

Lumens Color 3

14.0

Color 5 - Wavelength/Color Temp/Coordinates

5950K

Color 4 - Wavelength/Color Temp/Coordinates

0.477, 0.466

Lumens Color 4

98.7

Color 3 - Wavelength/Color Temp/Coordinates

470 nm

Color Option 4

Yellow

Color Option 3

Blue

Lumens Color 2

81.2

Color 2 - Wavelength/Color Temp/Coordinates

530 nm

Lumens Color 1

39.2

Connection

Pigtail QD

Color Option 2

Green

Quick Disconnect Type

M12 (Euro)

Color Option 1

Red

Color Technology

RGB Configurable

Color 1 - Wavelength/Color Temp/Coordinates

625 nm

Housing Style

Base Mount - Dome Window

Primary Housing Material

Polycarbonate

Indication

Yes

Mounting Thread

M30 x 1.5

Power

Power Source

Number of Colors / Segments

Product Size (mm)

Color Input Control

Multiple (One or more wires/color, enables more colors than input wires)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

K90PLRGB7QP Description

Banner Engineering K90PLRGB7QP is a programmable LED pilot light indicator featuring flashing input control and 7-color RGB multicolor LED illumination. It comes in a black housing with a dome window shape. The materials used include a polycarbonate (PC) diffused window and a polycarbonate (PC) base. This part is pre-equipped with a 5-pin M12 Euro-style QD connector for connectivity. It operates on a supply voltage range of 10Vdc-30Vdc (12Vdc-24Vdc nom.) and can be mounted via surface, base, or pole flush in a 30mm hole with an M30 thread. The dome diameter measures 90mm / 3-1/2". It is designed to operate in ambient air temperatures ranging from -40°C to +50°C. The K90PLRGB7QP offers a degree of protection rated at IP67, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. It has a current consumption of 415mA and includes 3 x digital inputs (10-30Vdc; NPN/PNP) for color control and 1 x digital input (10-30Vdc; NPN/PNP) for flash control.
