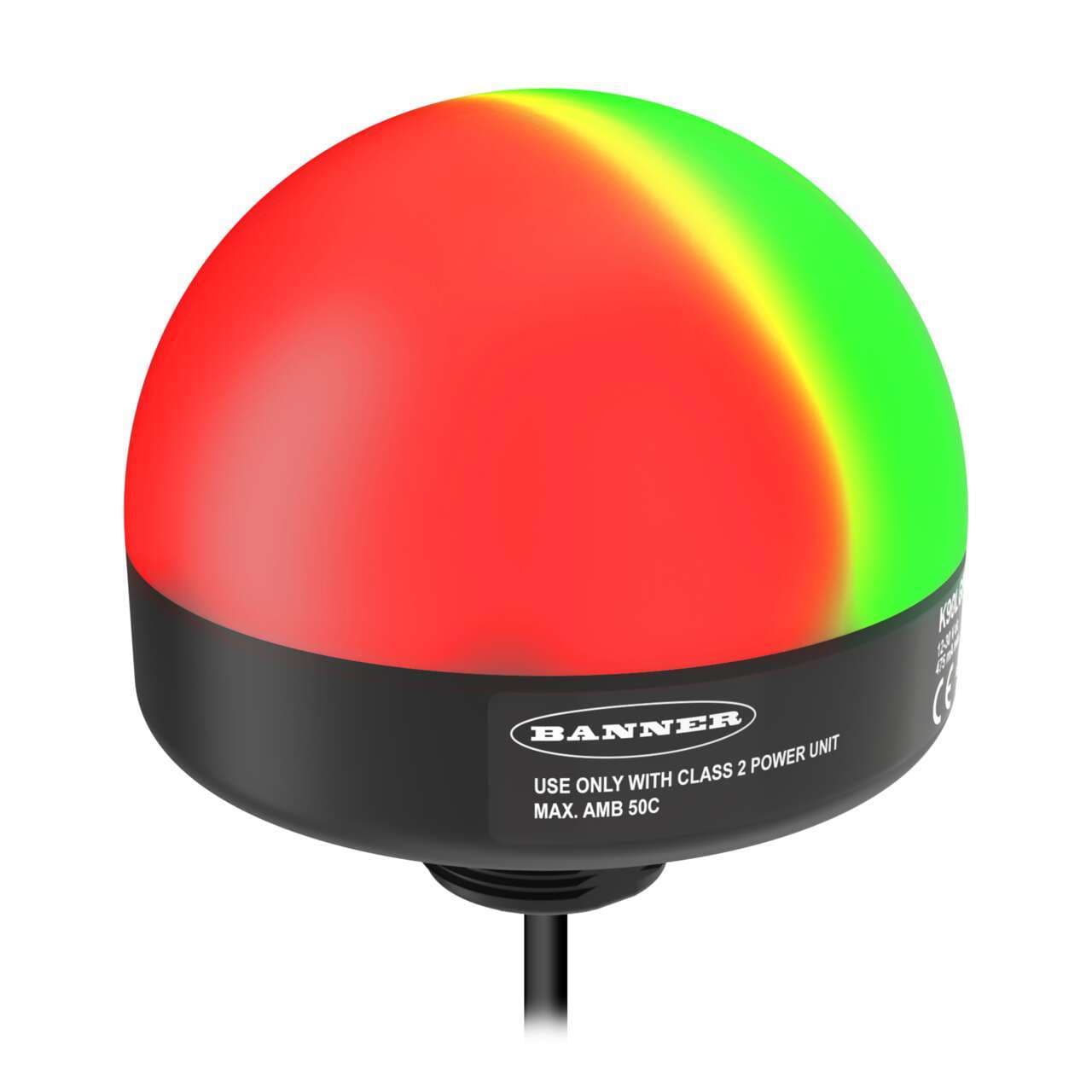

K90PLRGB7 Banner Signal Beacons

Product Details

• Weight
  340.194 g
• Country Of Origin
  MX
• Pro-Editor Compatible (Discrete)
  Yes
• USB
  No
• IO Link
  No
• Feature: Audible
  No
• Feature: Quick Disconnect
  No
• Multi-Color Device
  Single Color On
• Feature: Chemical Resistant
  No
• Primary Window Material
  Polycarbonate Diffused
• Primary Housing Color
  Black
• Min Op. Temperature (°C)
  -40
• Max Op. Temperature (°C)
  50
• Environmental Rating
  IP67
• Supply Voltage
  10-30 V dc
• NEMA Type and UL Type Rating
  NEMA and UL 4X, 13
• Physical Dimensions (LxWxH or DxH mm)
  90.0 x 87.0
• Modbus RTU
  No
• Wireless
  No
• Feature: Hazardous Area
  No
Storage Temp (°C)
-40 to 70
Max Op. Relative Humidity Non-Condensing (%)
90% @ 50°C
Max Input Response Time (ms)
250
Input Type
Bimodal (PNP/NPN)
Number of Input Pins/Conductors
5
Wire Selectable Function
Multi-Function
Max Current Color (mA)
415
Lumens Color 7
93.0
Color 7 - Wavelength/Color Temp/Coordinates
0.164, 0.343
Color Option 7
Cyan
Lumens Color 6
49.9
Color Option 6
Magenta
Color 6 - Wavelength/Color Temp/Coordinates
0.404, 0.186
Color 5 - Wavelength/Color Temp/Coordinates
5950K
Lumens Color 5
107.9
Color Option 5
White
Color 4 - Wavelength/Color Temp/Coordinates
0.477, 0.466
Lumens Color 4
98.7
Color Option 4
Yellow
Color Option 3
Blue
Color 2 - Wavelength/Color Temp/Coordinates
530 nm
Lumens Color 3
14.0
Color 3 - Wavelength/Color Temp/Coordinates
470 nm
Lumens Color 2
81.2
Connection
Cable
Color Option 2
Green
Quick Disconnect Type
No QD
Lumens Color 1
39.2
Color 1 - Wavelength/Color Temp/Coordinates
625 nm
Color Option 1
Red
Color Technology
RGB Configurable
Product Size (mm)
50
Mounting Thread
M30 x 1.5
Power
DC
Color Input Control
Multiple (One or more wires/color, enables more colors than input wires)
Number of Colors / Segments
7
Housing Style
Base Mount - Dome Window
Primary Housing Material
Polycarbonate
Indication
Yes
Power Source
DC
Cable Length (m)
2

Related documents K90PLRGB7 Specs
