K50FLYXXPQPMA Banner Pick-to-Light Sensors

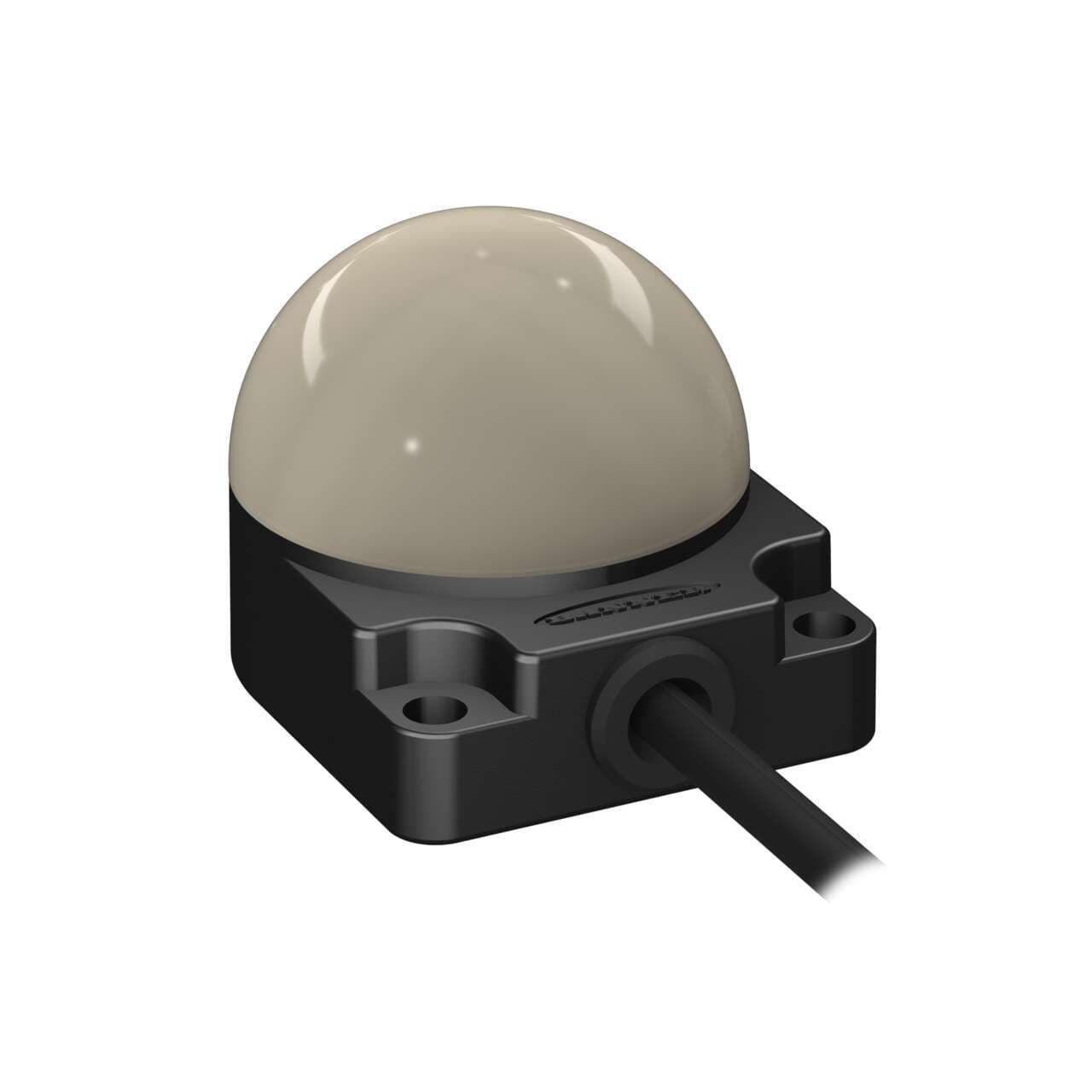

Banner K50FLYXXPQPMA K50 Series EZ-LIGHT: 1-Color General Purpose Flat Pack Indicator; Voltage: 18-30 V dc; Environmental Rating: IP67; Input: PNP; Color: Yellow; 150 mm (6 in) 4-pin M12 PUR Pigtail QD
Banner

Part#:K50FLYXXPQPMA

Manufacturer:Banner

Alt. Part#:11786

Product Lifecycle:Active

Get a quick Quote!

K50 Series EZ-LIGHT: 1-Color General Purpose Flat Pack Indicator; Voltage: 18-30 V dc; Environmental Rating: IP67; Input: PNP; Color: Yellow; 150 mm (6 in) 4-pin M12 PUR Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the K50FLYXXPQPMA Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    45.3592 g
  • Country Of Origin
    MX
  • Feature: Quick Disconnect
    Yes
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • Modbus RTU
    No
  • IO Link
    No
  • Multi-Color Device
    Single Color On
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Feature: Washdown Rated
    Yes
  • Primary Window Material
    Polycarbonate Diffused
  • Min Op. Temperature (°C)
    -40
  • Max Op. Temperature (°C)
    50
  • Primary Housing Color
    Black
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 76.0 x 44.6
  • Max Op. Relative Humidity Non-Condensing (%)
    95% @ 50°C
  • Environmental Rating
    IP67; IP69
  • Max Input Response Time (ms)
    1
  • Input Type
    PNP
  • Supply Voltage
    18-30 V dc
  • Max Current Color (mA)
    40
  • Number of Input Pins/Conductors
    4
  • Connection
    Pigtail PUR QD
  • Color Technology
    Standard LED
  • Color Option 1
    Yellow
  • Product Size (mm)
    50
  • Quick Disconnect Type
    M12 (Euro)
  • Animation Option 1
    Solid On
  • Mounting Thread
    No Thread
  • Number of Colors / Segments
    1
  • Cable Length (m)
    0.15
  • Primary Housing Material
    Polycarbonate
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Housing Style
    Flat Mount - Dome Window
  • Indication
    Yes
  • Power Source
    DC
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

K50FLYXXPQPMA Description

Banner Engineering K50FLYXXPQPMA is a pilot light from the EZ-LIGHT Flat-mount series designed as a flat-pack LED pilot light indicator. It features a phot-electric sensor emulator with a 2-color yellow/blue LED illumination pattern. The unit has a black housing with a dome window on a flat-pack body, constructed from polycarbonate for both the diffused window and the base. It is pre-equipped with a 4-pin M12 Euro-style quick disconnect (QD) connector for easy installation. The pilot light operates on a supply voltage of 18Vdc to 30Vdc, with a nominal voltage of 24Vdc, and can be mounted on surfaces or walls. The dome has a diameter of 50mm (approximately 2 inches), and the device is designed to operate in ambient air temperatures ranging from -40°C to +50°C. It offers a high degree of protection with ratings of IP67 and IP69K, ensuring durability in harsh environments. The current consumption is 40mA, and it includes 2 digital inputs (18-30Vdc; PNP) for color control.

Related documents K50FLYXXPQPMA Specs

K50FLYXXPQPMA 203619.pdf
