K50APTGBC Banner Pick-to-Light Sensors
Part#:K50APTGBC
Manufacturer:Banner
Alt. Part#:86405
Product Lifecycle:Active
Get a quick Quote!
K50 Series EZ-LIGHT: 2-Color Touch Sensor; Touch Light Overrides Job Light; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Input: PNP (NO); Colors: Green Blue; 2 m (6.5 in) PVC Cable
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K50APTGBC Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 226.796 g
- Country Of Origin MX
- Job Light Green
- Pro-Editor Compatible (Discrete) No
- Multi-Color Device Single Color On
- Wireless No
- Feature: Chemical Resistant No
- Modbus RTU No
- IO Link No
- Feature: Audible No
- Feature: Hazardous Area No
- Feature: Washdown Rated Yes
- Primary Window Material Polycarbonate Diffused
- Button Operation Momentary
- Primary Housing Color Black
- Storage Temp (°C) -40 to 70
- Min Op. Temperature (°C) -40
- Max Op. Temperature (°C) 50
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Input Type PNP
- Environmental Rating IP67; IP69
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 55.0
- Max Output Response Time (ms) 50
- Output Type PNP
- Pick-to-Light Function C
- Acknowledge (Sense) Light Blue
- Supply Voltage 12-30 V dc
- Operation Normally Open
- Max Current Color (mA) 75
- Number of Input Pins/Conductors 4
- Color Option 2 Blue
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Lumens Color 1 29.0
- Animation Option 1 Solid On
- Color Option 1 Green
- Connection Cable
- Color Technology Standard LED
- Product Size (mm) 50
- Housing Style Base Mount - Dome Window
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Number of Colors / Segments 2
- Mounting Thread M30 x 1.5
- Actuation Yes
- Activation Function Capacitive Touch
- Power Source DC
- Primary Housing Material Polycarbonate
- Power DC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
K50APTGBC Description

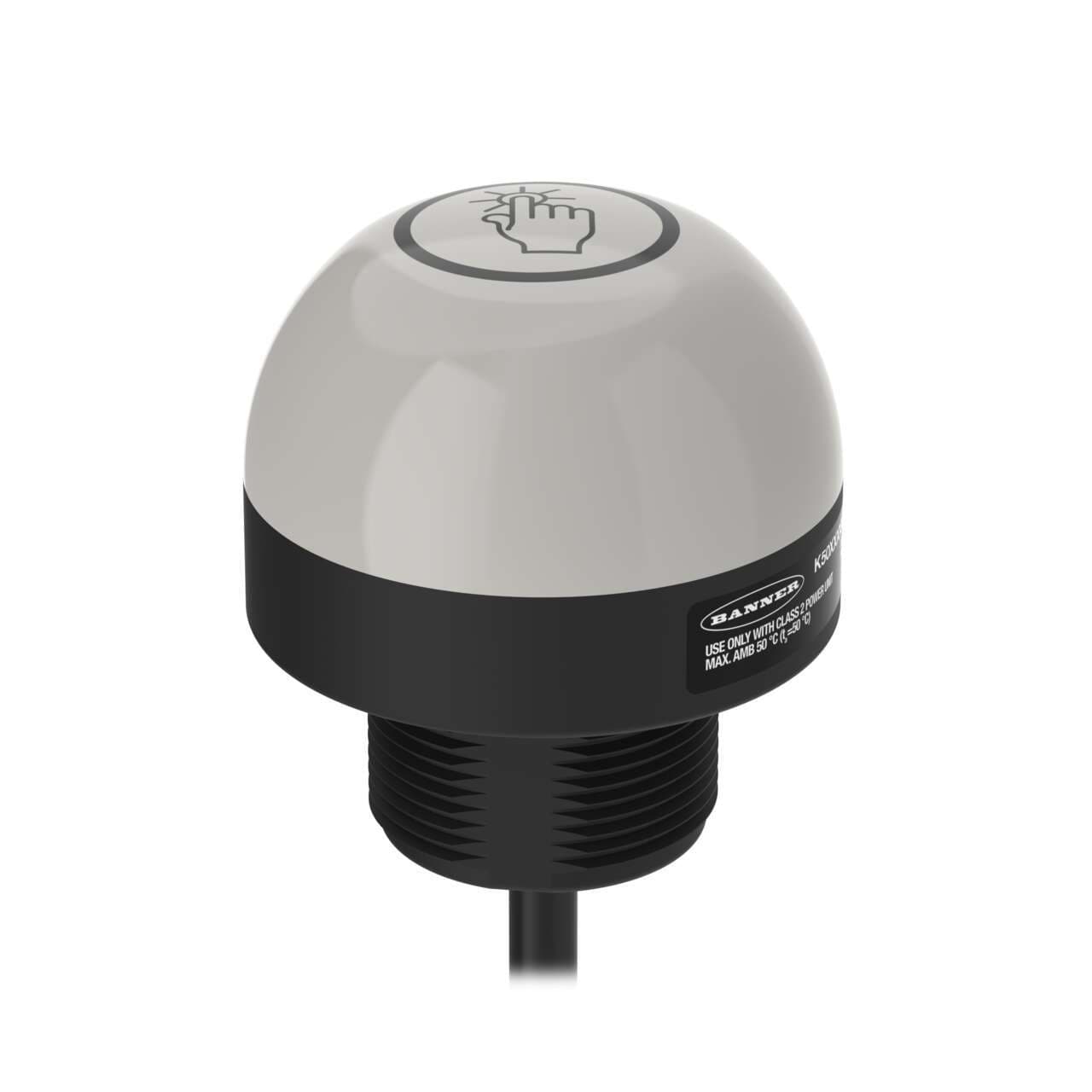

Banner Engineering K50APTGBC, part of the EZ-LIGHT series, is a capacitive touch-sensitive pick-to-light device designed with LED illumination in a black housing. It features a dome window shape made from polycarbonate (PC) for both the diffused window and the base. This part is pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. It operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc nominal, and supports surface or base pole mounting with an M30 thread. The dome diameter is 50mm / 2 inches. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and offers a degree of protection rated at IP67 and IP69K. The operating mode includes a momentary job light (B; Blue) that remains ON when the input is active, and touch activates the output only with a Normally Open (NO) touch output. The current consumption is 75mA. It also features 1 x digital input (12-30Vdc; PNP) for JOB color control and 1 x digital output (12-30Vdc; PNP) for touch.
Related documents K50APTGBC Specs
