K50APT2GRYF2QP Banner Pick-to-Light Sensors

K50APT2GRYF2QP on Powermatic Associates
Banner

Part#:K50APT2GRYF2QP

Manufacturer:Banner

Alt. Part#:96772

Product Lifecycle:Active

Get a quick Quote!

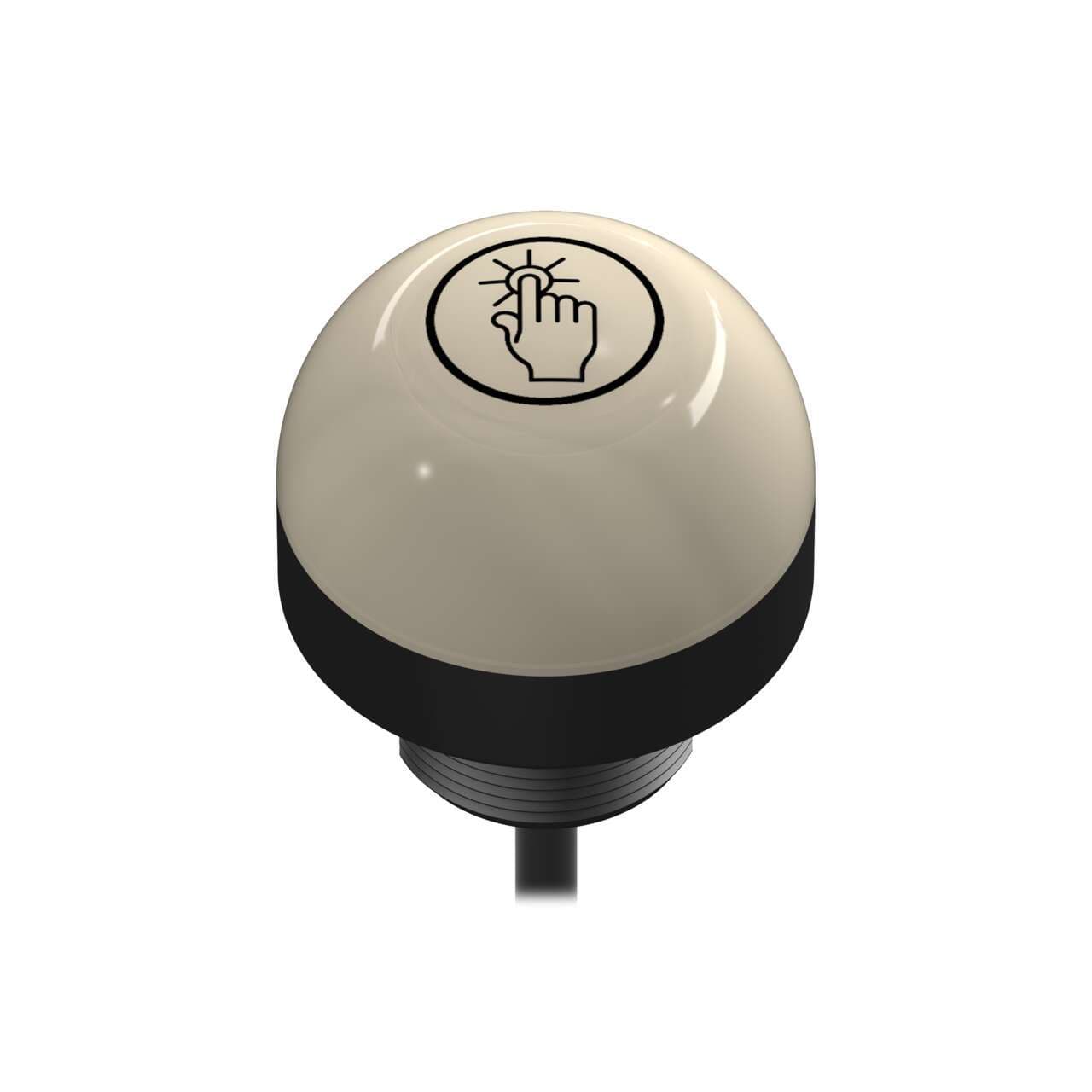

K50 Series EZ-LIGHT: 3-Input-Color Touch Sensor Gen 2; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Input: PNP (NO); Colors: Green Red Yellow; 150 mm (6 in) M12 PVC Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the K50APT2GRYF2QP Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    158.7572 g
  • Country Of Origin
    MX
  • Pro-Editor Compatible (Discrete)
    No
  • Modbus RTU
    No
  • IO Link
    No
  • Multi-Color Device
    Single Color On
  • Feature: Chemical Resistant
    No
  • Primary Housing Color
    Black
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 55.0
  • Min Op. Temperature (°C)
    -40
  • Max Op. Temperature (°C)
    50
  • Input Type
    PNP
  • Pick-to-Light Function
    F2
  • Product Size (mm)
    50
  • Wireless
    No
  • Feature: Washdown Rated
    Yes
  • Feature: Audible
    No
  • Primary Window Material
    Polycarbonate Diffused
  • Button Operation
    Momentary
  • Feature: Hazardous Area
    No
  • Storage Temp (°C)
    -40 to 70
  • Environmental Rating
    IP67; IP69
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • Max Output Response Time (ms)
    50
  • Supply Voltage
    12-30 V dc
  • Output Type
    PNP
  • Operation
    Normally Open
  • Number of Input Pins/Conductors
    8
  • Lumens Color 2
    13.0
  • Max Current Color (mA)
    75
  • Color 3 - Wavelength/Color Temp/Coordinates
    591 nm
  • Lumens Color 3
    24.0
  • Color Option 3
    Yellow
  • Color 2 - Wavelength/Color Temp/Coordinates
    625 nm
  • Color 1 - Wavelength/Color Temp/Coordinates
    525 nm
  • Color Option 2
    Red
  • Animation Option 1
    Solid On
  • Lumens Color 1
    29.0
  • Color Option 1
    Green
  • Connection
    Pigtail QD
  • Actuation
    Yes
  • Primary Housing Material
    Polycarbonate
  • Quick Disconnect Type
    M12 (Euro)
  • Color Technology
    Standard LED
  • Power Source
    DC
  • Power
    DC
  • Mounting Thread
    M30 x 1.5
  • Number of Colors / Segments
    3
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Housing Style
    Base Mount - Dome Window
  • Activation Function
    Capacitive Touch

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

K50APT2GRYF2QP Description

Banner Engineering K50APT2GRYF2QP, part of the EZ-LIGHT series, is a capacitive touch-sensitive pick-to-light device designed with Gen.2 LED illumination in a black housing. It features a dome window shape made from polycarbonate (PC) with a diffused window and PC base. This part is pre-wired with a 6" / 15cm pigtail that terminates with an 8-pin M12 Euro-style QD connector. It operates on a supply voltage of 12Vdc-30Vdc (24Vdc nom.) and can be mounted via surface or base pole with an M30 thread. The dome diameter is 50mm / 2", and it is designed to operate in ambient air temperatures ranging from -40°C to +50°C. It offers a degree of protection rated at IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. The operating mode is momentary, with a job light (G/R/Y; Green or Red or Yellow) that turns on when one of the three job inputs is active, and touch activates the output only with a Normally Open (NO) touch output. It has a current consumption of 75mA, three digital inputs (12-30Vdc; PNP) for JOB color control, and one digital output (12-30Vdc; PNP) for touch.

Related documents K50APT2GRYF2QP Specs

K50APT2GRYF2QP 189830.pdf
