K-FLX18-50TW12XQP Banner Light Bars

Name: K-FLX18-50TW12XQP
Brand: Banner

Banner K-FLX18-50TW12XQP Flex Arm Light 18 in; WL50 Touch; White: 5K; 1/2 in Base; No bracket; 4-pin M12 Pigtail QD

Part#:K-FLX18-50TW12XQP

Manufacturer:Banner

Alt. Part#:811490

Product Lifecycle:Active

Get a quick Quote!

Flex Arm Light 18 in; WL50 Touch; White: 5K; 1/2 in Base; No bracket; 4-pin M12 Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the K-FLX18-50TW12XQP Banner price in the box on the right side or send a quick quote.

Product Details

Weight
1065.9412 g
Country Of Origin
US

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

K-FLX18-50TW12XQP Description

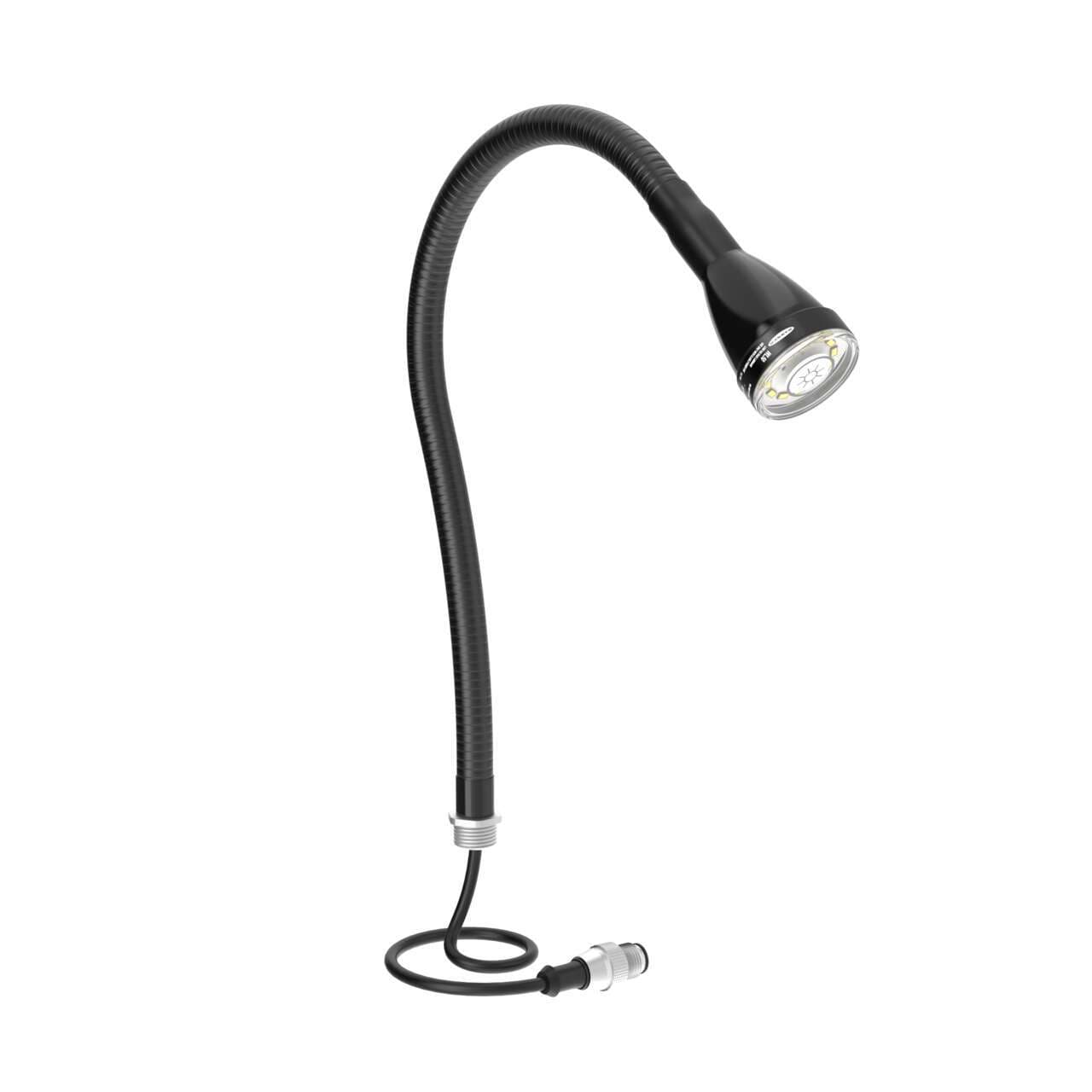

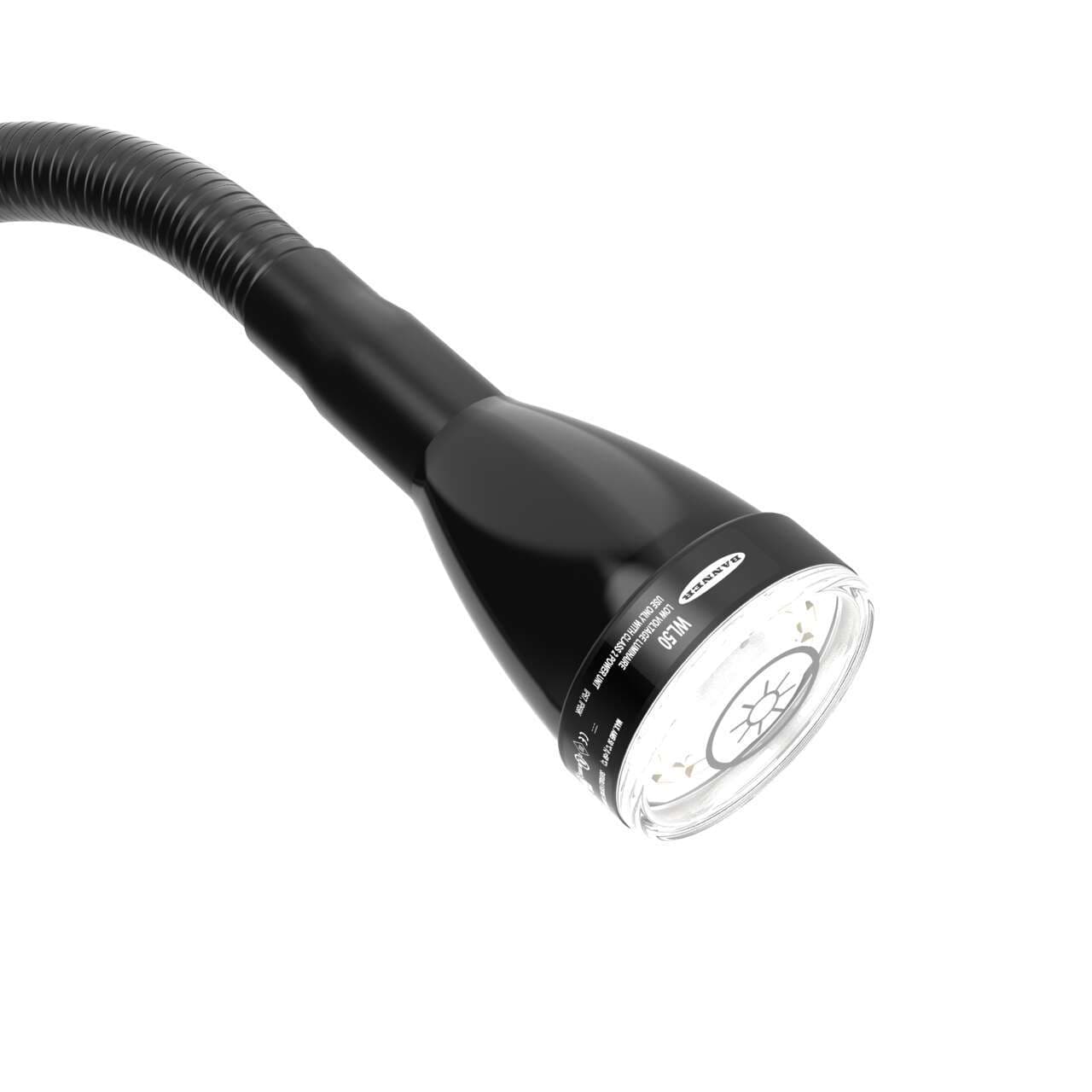

Banner Engineering K-FLX18-50TW12XQP is a capacitive touch-sensitive general purpose LED work/task light from the Flex arm light series. It features a design with an NPSM mount flexible arm and provides 1-color Daylight White (W) LED illumination. The housing is black, made of polycarbonate, and the flex arm is coated in vinyl. This round flat window-shaped light is pre-wired with an 11.8" / 30cm pigtail that terminates with a 4-pin M12 Euro-style QD connector. It operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal. The diameter of the work light is 50mm. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and offers a degree of protection rated at IP65, IP67, and IP69K. Additionally, it includes 1 x digital input (12Vdc / 24Vdc) for color control.
