IVU2PTBR25 Banner Barcode Readers

Name: IVU2PTBR25
Brand: Banner

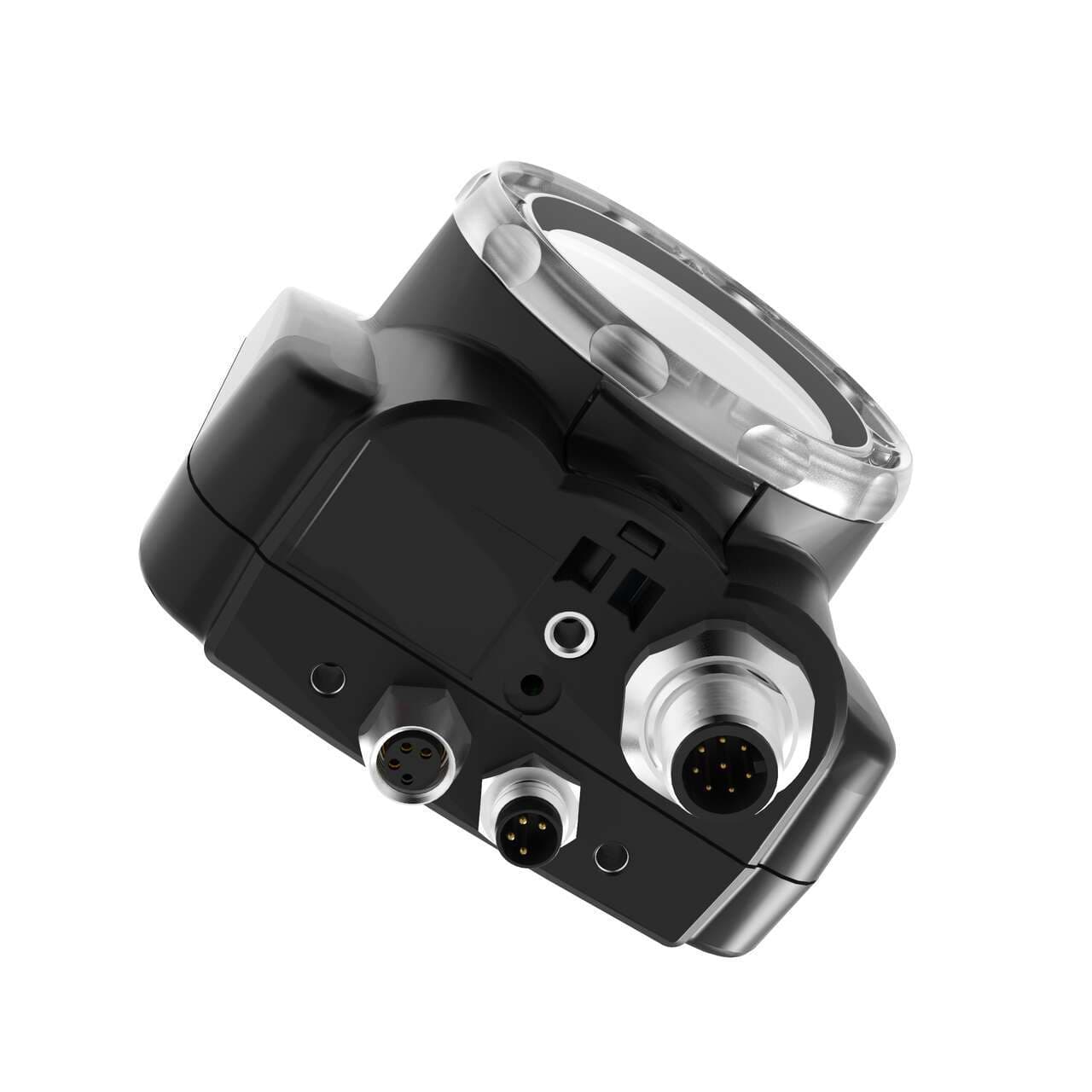

Banner IVU2PTBR25 iVu PLUS BCR Gen2 Sensor with Ethernet; Red Ring Light and 25 mm lens; Requires power cordset and bracket; Ethernet and USB cordset optional

Part#:IVU2PTBR25

Manufacturer:Banner

Alt. Part#:90744

Product Lifecycle:Active

Get a quick Quote!

iVu PLUS BCR Gen2 Sensor with Ethernet; Red Ring Light and 25 mm lens; Requires power cordset and bracket; Ethernet and USB cordset optional

About the manufacturer: Banner is one of the manufacturers that offers Barcode Readers that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the IVU2PTBR25 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
557.91816 g
Country Of Origin
CN
FTP
No
RS-422
No
PROFINET
Yes
Feature: PC Interface
Yes
Device Type
Imager BCR
Feature: Washdown Rated
Yes
Primary Housing Material
Thermoplastic
Light Color
Red
RS-232
Yes
Common Ethernet Protocol
No
Modbus/TCP
Yes
PCCC
Yes
Touchscreen Display
Integrated
EtherNet/IP
Yes
Feature: Touchscreen Interface
Yes
Imager Type
Grayscale
Camera Housing Size (HxWxL mm)
79 x 81 x 52
Code Type
1D, 2D

Image Resolution

752 x 480 pixels

Lens (mm)

IP Rating

IP67

USB

Primary brand

Banner Engineering

Sub-range name

iVu Plus TG and Color Gen2 Image Sensors

Communication protocol

Ethernet/IP Modbus TCP PROFINET RS-232

Display

Touchscreen display

Image sensor characteristics

752x480pixels 1/3" CMOS sensing; Monochrome

Mounting mode

C-mount

Net Height (mm)

79 mm

Functions

1D / 2D BCR barcode reader / image sensor (0.36Mpixel) kit PCCC

Ambient air temperature for operation

0...+45 °C

Refresh rate (fps)

60fps

Main function

Sensor (Vision)

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Color

Black housing

Digital outputs

1 x digital output (PNP/NPN transistor)

Order code / Manufacturer SKU

90744

Design

built-in touchscreen 25mm optical lns. red LED ring light illumination grayscale sensor

Connection type

Pre-equipped with 12-pin Euro-style M12 male connector (Supply) 4-pin M8 female connector (USB) 4-pin M8 male connector (Ethernet) 8-pin Euro-style M12 female connector (Remote display)

Degree of protection

IP67

Compliant with standard(s)

cULus CE

Net Depth (mm)

52 mm

Material

thermoplastic housing Acrylic window

Type of lens

25mm

Net Width (mm)

81 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IVU2PTBR25 Description

Banner Engineering IVU2PTBR25 is a 1D / 2D fixed-mount barcode reader and image sensor kit featuring a 0.36 Megapixel camera. It comes with a built-in touchscreen and a 25mm optical lens, complemented by a red LED ring light for illumination. This model has the capacity to store up to 30 inspections and supports PCCC. The housing is made of black thermoplastic with an acrylic window. It is pre-equipped with a 12-pin Euro-style M12 male connector for power supply, two 4-pin M8 connectors (one female and one male) for USB and Ethernet connections, and an 8-pin Euro-style M12 female connector for remote display purposes. The IVU2PTBR25 supports multiple communication protocols, including Ethernet/IP, Modbus TCP, PROFINET, and RS-232. It operates on a supply voltage range of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. The device is designed for C-mount installation, has a net height of 79 mm, a net width of 81 mm, and a net depth of 52 mm. It operates within an ambient air temperature range of 0 to +45 °C and offers a degree of protection rated at IP67. Additionally, it features one digital output (PNP/NPN transistor) and operates with a refresh rate of 60 frames per second.
