ITA210S Banner Fiber Optic Sensors
Part#:ITA210S
Alt. Part#:20689
Manufacturer:Banner
Category:Fiber Optic Sensors
Product Lifecycle:Active
Product description
FIBER ITA210S
Product Details
- Weight 272.1552 g
- Country Of Origin US
- Max Distance: DF-G2 (mm) No Data
- Max Distance: DF-G1 (mm) No Data
- Max Distance: DF-G3 (mm) No Data
- Fiber Sensing End Size - Mounting Area #5/16-24 thread
- Measured Max Distance (mm) No Data
- Tariff Fiber Meters (fbm) 10372.34
- Termination Type Glass Fiber Sensors
- Application: Liquid Level No
- Application: Vacuum Feed Through None
- Integrated Lens No
- Feature: Small Object Detection No
- Feature: Chemical Resistant No
- Max Temp ( °C) 249
- Termination Terminated
- Sensing End Segment 1 Thread
- Fiber Length (m) 3.048
- Sensing End Segment 2 Angle
- Minimum Bend Radius (mm) 25
- Retractile No
- Fiber Sensing End Size 4.8 mm
- Flex Relief No
- Core Diameter (mm) 3.2
- Sensing Mode (Detailed) Reflective
- Beam Exit Right Angle
- Fiber Sheathing Material (Jacket) Stainless Steel Monocoil
- Fiber Sensing End Tip Angle
- Quantity Included 1
- Sensing End Material (Specific) Stainless Steel
- Sensing Mode (General) Opposed
- Fiber Optic Type Glass
- Housing Style Round
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of ITA210S on Powermatic Associates is $295.00. Order now.
About the product

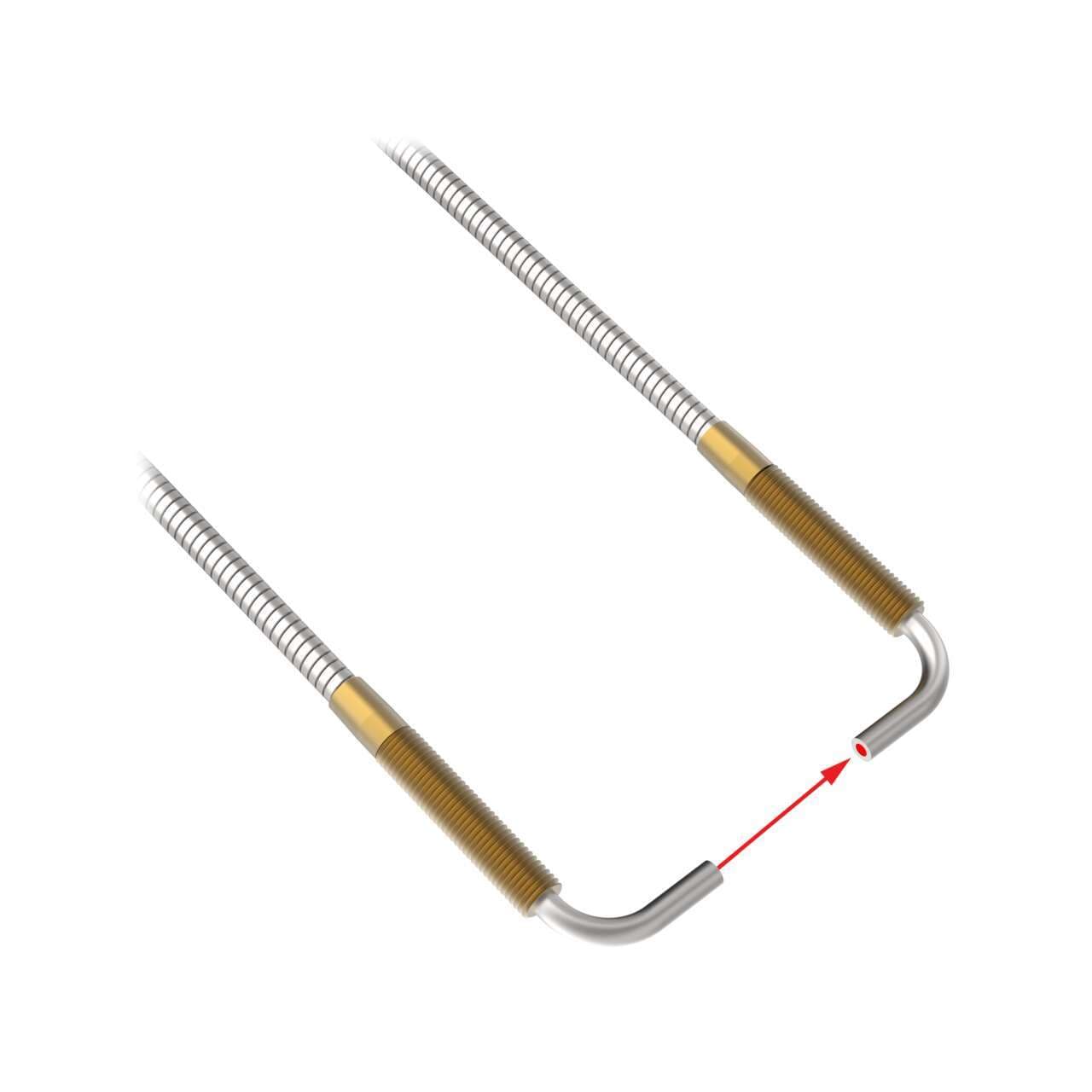

Banner Engineering ITA210S is a fiber sensor belonging to the Glass fiber series, designed with a diffuse-reflective system for individual fiber side/right-angled sensing. This sensor features a cylindrical (threaded) end tip made from stainless steel, with the sensing part composed of glass fiber encased in a stainless steel monocoil. It has a length of 10ft (3m) and a diameter of 3.2mm for the fiber core. The ITA210S is built to operate in ambient air temperatures up to +249°C.
