IT43ST5-VL Banner Fiber Optic Sensors

Name: IT43ST5-VL
Brand: Banner
Price: 89 USD
Availability: BackOrder

Part#:IT43ST5-VL

Alt. Part#:96027

Manufacturer:Banner

Category:Fiber Optic Sensors

Product Lifecycle:Active

Product description

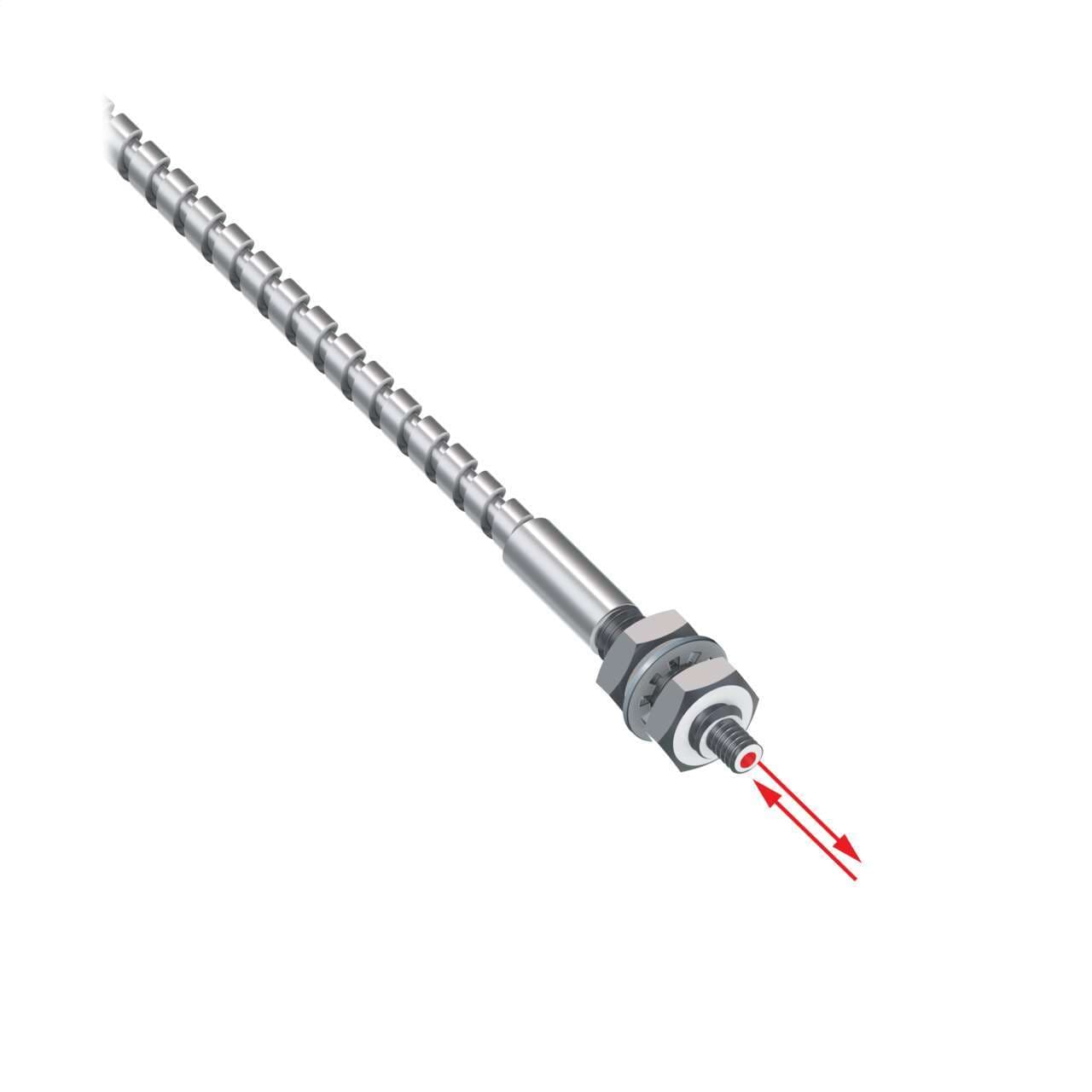

Glass Fiber; Opposed Mode 1 mm. dia. Bundle; M4 Threaded Tip With M2.5; Stainless Sheathing 1 m Long; Terminated For Plastic Fiber Sensors; Vantage Line

Product Details

Weight
19.4137376 g
Country Of Origin
US
Max Distance: DF-G1 (mm)
684
Max Distance: DF-G2 (mm)
1108
Max Distance: DF-G3 (mm)
5312
Feature: Extended Range
No
Application: Vacuum Feed Through
None
Termination Type
Plastic Fiber Sensors
Application: Liquid Level
No
Feature: Chemical Resistant
No
Termination
Terminated
Retractile
No
Sensing End Segment 1
Thread
Quantity Included
1
Measured Max Distance (mm)
684
Fiber Sensing End Size - Mounting Area
M4
Tariff Fiber Meters (fbm)
324
Feature: Small Object Detection
No
Integrated Lens
No
Max Temp ( °C)
249

Core Diameter (mm)

Minimum Bend Radius (mm)

Sensing End Segment 2

Thread

Flex Relief

Yes

Fiber Sensing End Size

M2.5

Fiber Length (m)

Fiber Sensing End Tip

Thread

Fiber Sheathing Material (Jacket)

Stainless Steel Monocoil

Beam Exit

In-line

Sensing End Material (Specific)

Stainless Steel

Sensing Mode (Detailed)

Reflective

Max Range: DF-G3 (mm)

>5m

Sensing Mode (General)

Opposed

Fiber Optic Type

Glass

Housing Style

Round

Functions

Fiber optic sensor

Material

Stainless steel sensing end Glass fiber stainless flexible tubing (fiber sheath)

Equivalent to

IT43ST5VL

Main function

Fiber sensor

Shape

Cylindrical (threaded) end tip

Diameter

1mm fiber core

Product series / family name

Fiber sensors

Length

3ft / 1m

Primary brand

Banner Engineering

Design

through-beam system / opposed mode Individual fiber In-line sensing

Ambient air temperature for operation

+249 °C

Order code / Manufacturer SKU

96027

Sub-range name

Plastic fiber series

Thread size

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of IT43ST5-VL on Powermatic Associates is $89.00. Order now.

About the product

Banner Engineering IT43ST5-VL is a fiber sensor belonging to the Plastic fiber series, designed for in-line sensing with a focus on water detection. This model features a through-beam system, also known as opposed mode, with a flexible fiber individual fiber configuration. The sensor has a cylindrical (threaded) end tip made of stainless steel, while the fiber core is encased in glass fiber with a stainless flexible tubing sheath for added durability. The fiber core itself measures 1mm in diameter, and the entire unit has a length of 3ft (approximately 1m). It is engineered to operate in ambient air temperatures up to +249°C.
