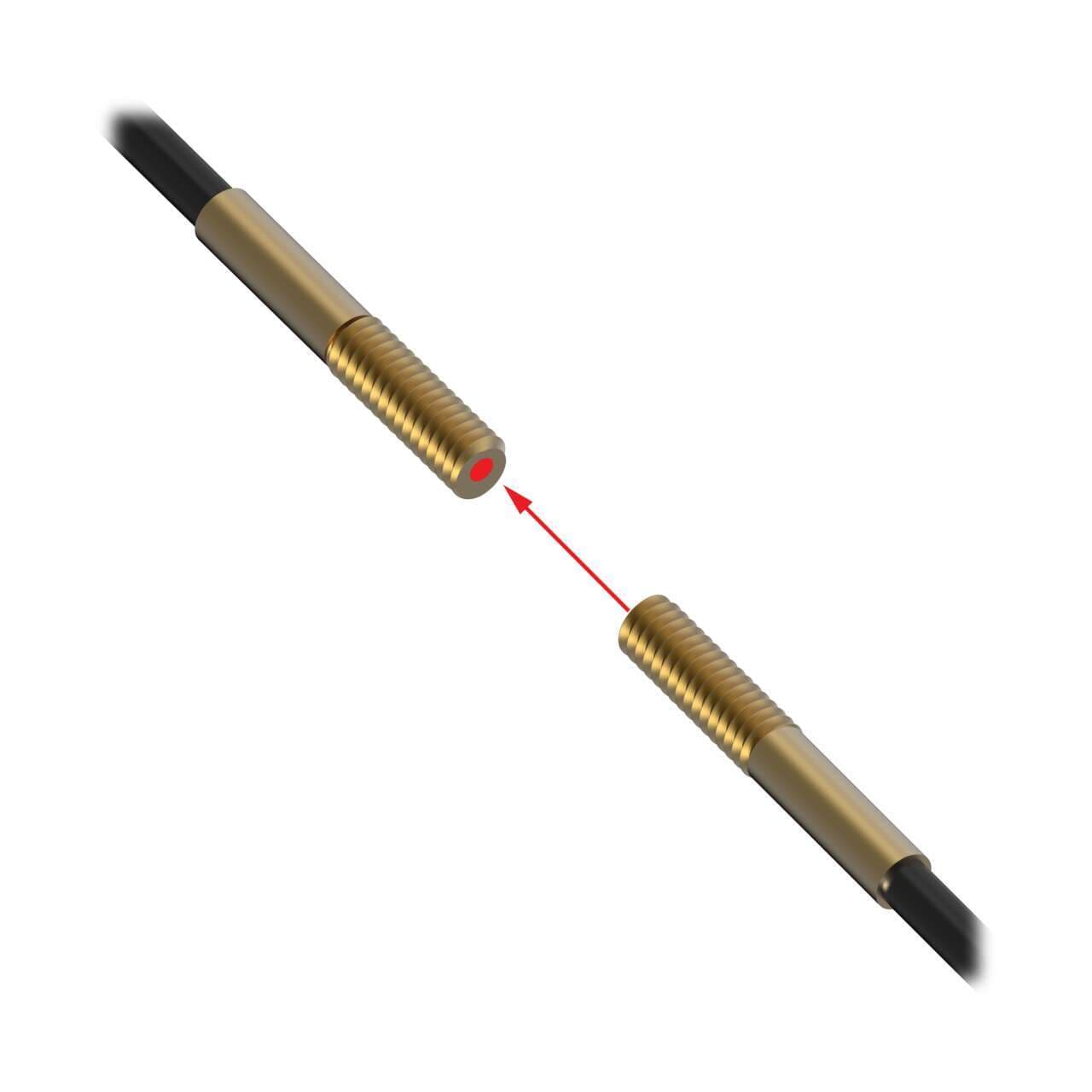

IMT.442P Banner Fiber Optic Sensors

Product Details

• Weight
  52.616672 g
• Country Of Origin
  US
• Max Distance: DF-G1 (mm)
  No Data
• Max Distance: DF-G2 (mm)
  No Data
• Fiber Sensing End Size - Mounting Area
  #8-32 thread
• Max Distance: DF-G3 (mm)
  No Data
• Feature: Small Object Detection
  No
• Feature: Extended Range
  No
• Feature: Chemical Resistant
  No
• Termination Type
  Glass Fiber Sensors
• Tariff Fiber Meters (fbm)
  85.26
• Application: Liquid Level
  No
• Application: Vacuum Feed Through
  None
• Measured Max Distance (mm)
  No Data
• Integrated Lens
  No
• Max Temp ( °C)
  105
• Minimum Bend Radius (mm)
  25
• Flex Relief
  No
• Termination
  Terminated
• Core Diameter (mm)
  0.7
Fiber Sensing End Size
#8-32 thread
Sensing End Segment 1
Ferrule
Retractile
No
Sensing End Segment 2
Thread
Fiber Length (m)
0.609
Fiber Sensing End Tip
Thread
Beam Exit
In-line
Sensing End Material (Specific)
Brass
Fiber Sheathing Material (Jacket)
PVC over Stainless Steel Monocoil
Sensing Mode (General)
Opposed
Fiber Optic Type
Glass
Quantity Included
1
Sensing Mode (Detailed)
Reflective
Housing Style
Round
Sub-range name
Glass fiber series
Diameter
0.7mm fiber core
Product series / family name
Fiber sensors
Shape
Cylindrical (threaded) end tip
Dimensions
8x32mm sensing area
Order code / Manufacturer SKU
21249
Main function
Fiber sensor
Functions
Fiber optic sensor
Length
2ft / 610mm
Material
Brass sensing end Glass fiber PVC over monocoil (fiber sheath)
Primary brand
Banner Engineering
Design
through-beam system / opposed mode Individual fiber
Ambient air temperature for operation
+105 °C
