Part#:IA1.58SMETA

Manufacturer:Banner

Alt. Part#:77716

Product Lifecycle:Active

Get a quick Quote!

FIBER IA1.58SMETA

About the manufacturer: Banner is one of the manufacturers that offers Fiber Optic Amplifiers that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the IA1.58SMETA Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    181.4368 g
  • Country Of Origin
    US
  • Max Distance: DF-G2 (mm)
    No Data
  • Max Distance: DF-G1 (mm)
    No Data
  • Max Distance: DF-G3 (mm)
    No Data
  • Fiber Sensing End Size - Mounting Area
    4.8 mm
  • Tariff Fiber Meters (fbm)
    4244.56
  • Application: Liquid Level
    No
  • Max Temp ( °C)
    249
  • Sensing End Segment 2
    Sideview
  • Fiber Optic Type
    Glass
  • Measured Max Distance (mm)
    No Data
  • Termination Type
    Glass Fiber Sensors
  • Application: Vacuum Feed Through
    None
  • Feature: Small Object Detection
    No
  • Feature: Chemical Resistant
    No
  • Integrated Lens
    No
  • Termination
    Terminated
  • Core Diameter (mm)
    2.3
  • Minimum Bend Radius (mm)
    25
  • Retractile
    No
  • Fiber Length (m)
    2.438
  • Flex Relief
    No
  • Fiber Sensing End Size
    4.8 mm
  • Sensing End Segment 1
    Probe
  • Quantity Included
    1
  • Fiber Sensing End Tip
    Sideview
  • Fiber Sheathing Material (Jacket)
    Stainless Steel Monocoil
  • Sensing Mode (General)
    Opposed
  • Housing Style
    Round
  • Sensing End Material (Specific)
    Stainless Steel
  • Beam Exit
    Right Angle
  • Sensing Mode (Detailed)
    Reflective

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IA1.58SMETA Description

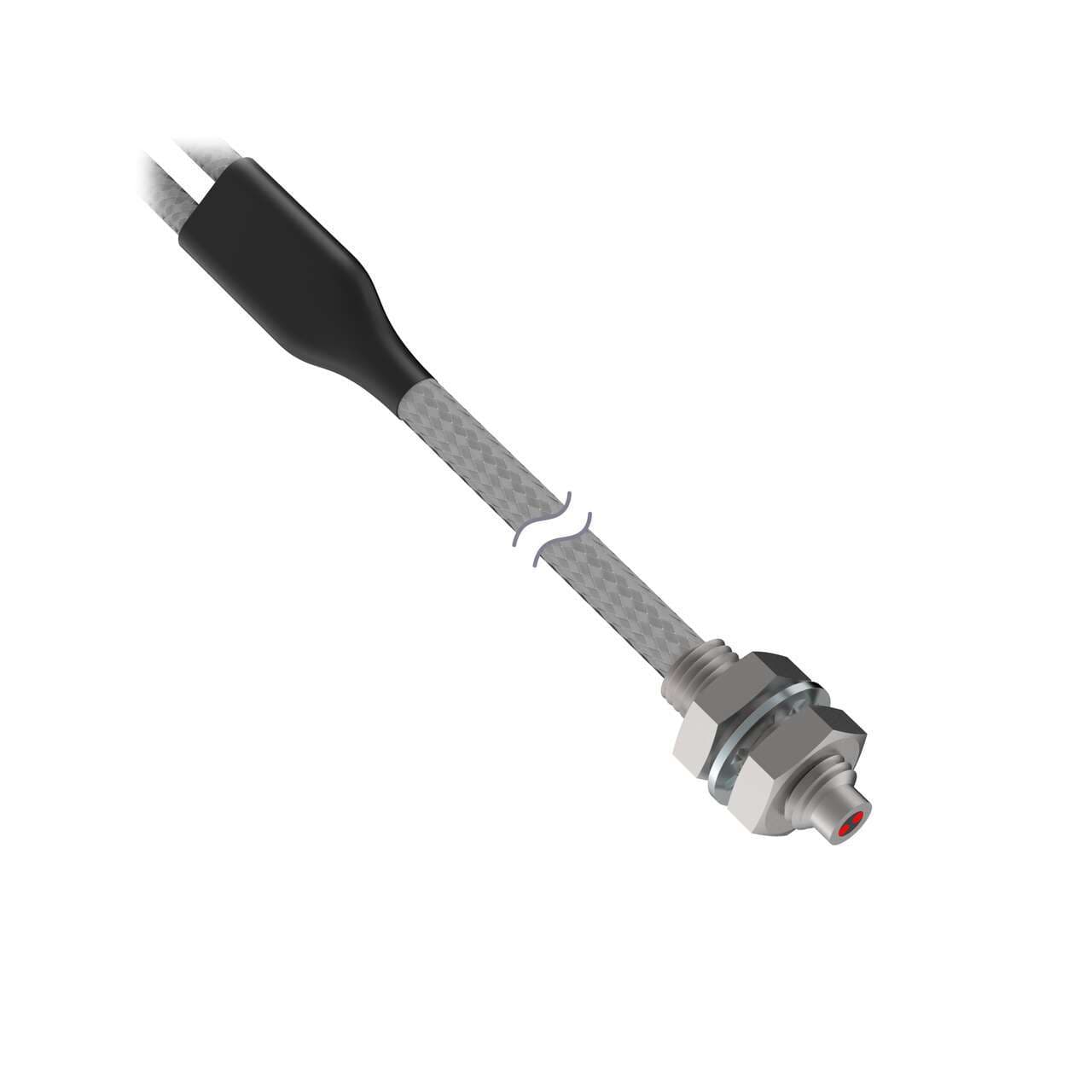

Banner Engineering IA1.58SMETA is a fiber sensor belonging to the Glass fiber series, designed with a diffuse-reflective system for individual fiber side / right-angled sensing. It features a cylindrical (smooth) probe tip made from stainless steel, with the sensing end and monocoil also constructed from stainless steel, while the fiber core is made of glass fiber. The sensor has a length of 8ft (2.44m) and a diameter of 2.3mm for the fiber core. It is capable of operating in ambient air temperatures up to +249°C.

Related documents IA1.58SMETA Specs

IA1.58SMETA IA1.5 SERIES SS EXTRA TIGHT ANGLE-1630954774032.stp
IA1.58SMETA IA1.5 SERIES SS EXTRA TIGHT ANGLE-1630954774034.pdf
