IA1.53SMETA Banner Fiber Optic Sensors

IA1.53SMETA on Powermatic Associates
Banner

Part#:IA1.53SMETA

Alt. Part#:20501

Manufacturer:Banner

Category:Fiber Optic Sensors

Product Lifecycle:Active

Product description

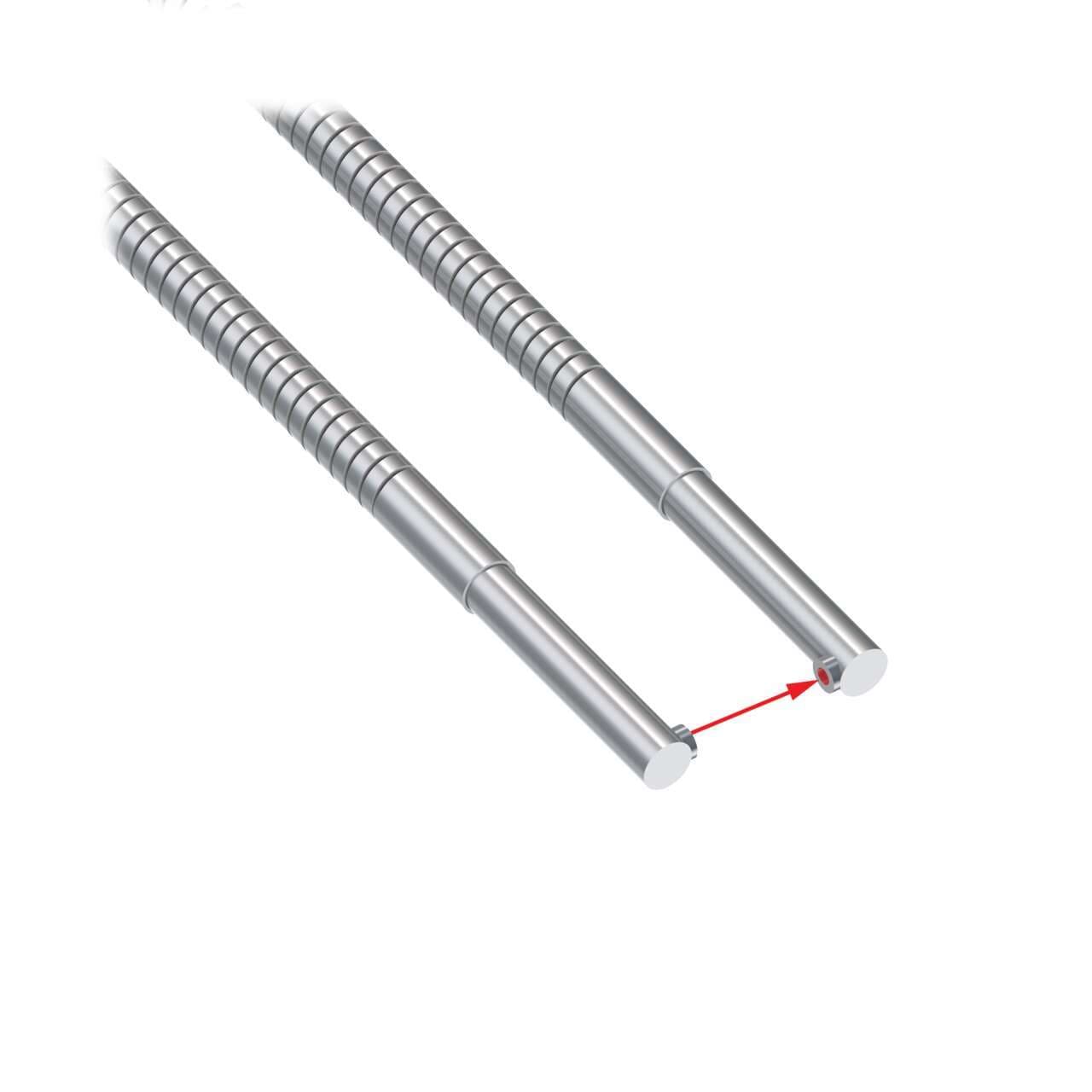

Glass Fiber Opposed Mode0.91 m long; 2.29 mm dia. Bundle; Stainless Steel Sheath; 4.75 mm Probe, Side Exit

Product Details

  • Weight
    76.657048 g
  • Country Of Origin
    US
  • Max Distance: DF-G1 (mm)
    No Data
  • Max Distance: DF-G3 (mm)
    No Data
  • Max Distance: DF-G2 (mm)
    No Data
  • Fiber Sensing End Size - Mounting Area
    4.8 mm
  • Measured Max Distance (mm)
    No Data
  • Tariff Fiber Meters (fbm)
    1597
  • Feature: Small Object Detection
    No
  • Application: Vacuum Feed Through
    None
  • Application: Liquid Level
    No
  • Termination Type
    Glass Fiber Sensors
  • Feature: Extended Range
    No
  • Feature: Chemical Resistant
    No
  • Integrated Lens
    No
  • Max Temp ( °C)
    249
  • Fiber Length (m)
    0.914
  • Flex Relief
    No
  • Termination
    Terminated
  • Sensing End Segment 2
    Sideview
  • Sensing End Segment 1
    Probe
  • Minimum Bend Radius (mm)
    25
  • Core Diameter (mm)
    2.3
  • Retractile
    No
  • Fiber Sensing End Size
    4.8 mm
  • Housing Style
    Round
  • Fiber Sheathing Material (Jacket)
    Stainless Steel Monocoil
  • Fiber Sensing End Tip
    Sideview
  • Sensing Mode (Detailed)
    Reflective
  • Sensing End Material (Specific)
    Stainless Steel
  • Beam Exit
    Right Angle
  • Sensing Mode (General)
    Opposed
  • Quantity Included
    1
  • Fiber Optic Type
    Glass
  • Primary brand
    Banner Engineering
  • Length
    3ft / 910mm
  • Ambient air temperature for operation
    +249 °C
  • Diameter
    5.33mm (end) 2.3mm fiber core
  • Main function
    Fiber sensor
  • Shape
    Cylindrical (smooth) probe tip
  • Order code / Manufacturer SKU
    20501
  • Sub-range name
    Glass fiber series
  • Material
    Stainless steel sensing end Glass fiber stainless steel (monocoil)
  • Product series / family name
    Fiber sensors
  • Functions
    Fiber optic sensor
  • Design
    through-beam system / opposed mode Individual fiber

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of IA1.53SMETA on Powermatic Associates is $166.00. Order now.

About the product

Banner Engineering IA1.53SMETA is a fiber sensor belonging to the Glass fiber series, designed for through-beam system applications with an opposed mode individual fiber side and right-angled sensing. This sensor features a cylindrical (smooth) probe tip made from stainless steel, with a glass fiber and stainless steel monocoil construction. It has a length of 3ft (910mm) and diameters of 5.33mm at the sensing end and 2.3mm for the fiber core. The IA1.53SMETA is capable of operating in ambient air temperatures up to +249°C.
