EA5R900XKQ Banner Measurement Sensors

Name: EA5R900XKQ
Brand: Banner

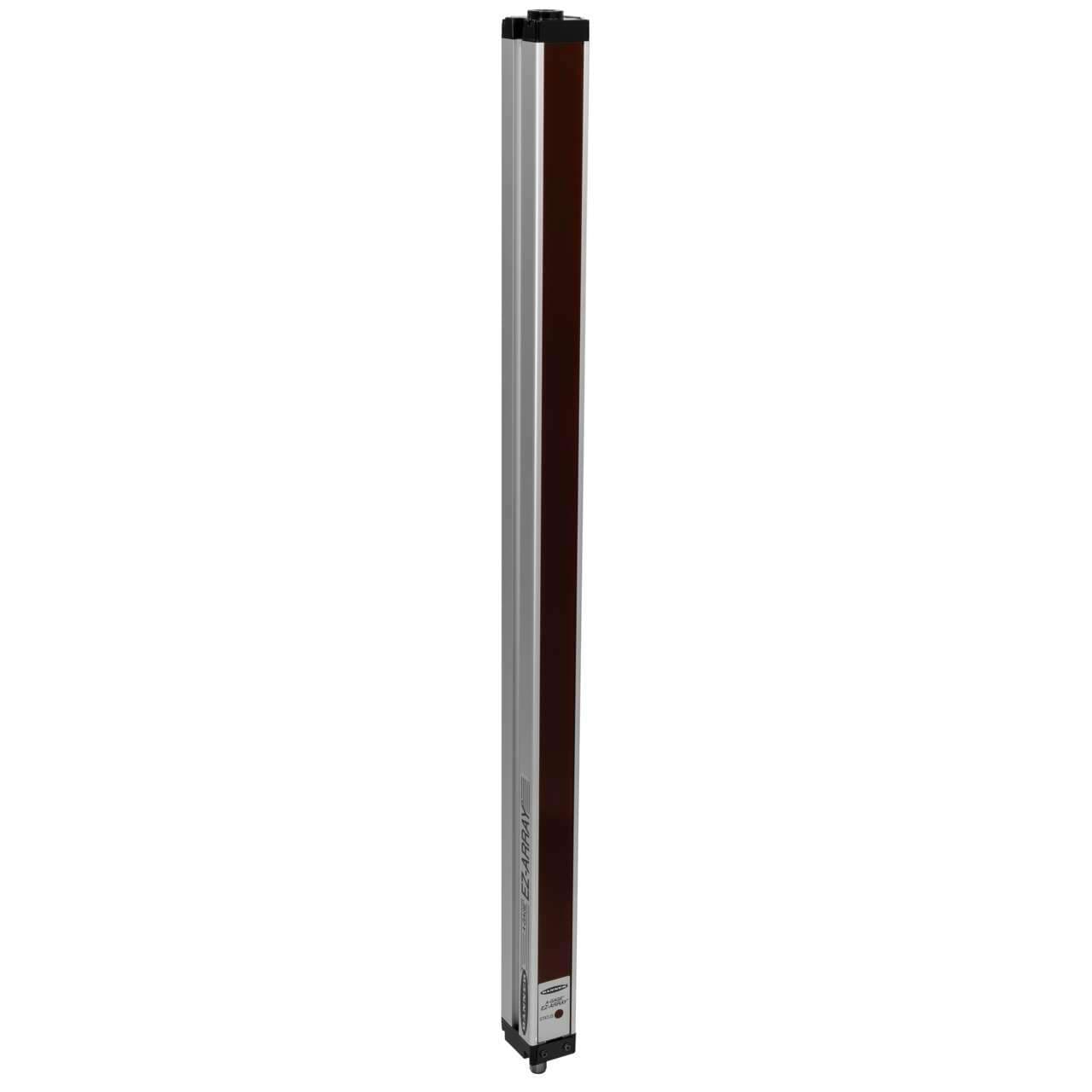

Banner EA5R900XKQ EA5R900XKQ EZ-ARRAY 5 mm Optical Spacing x 900 mm RECVR with IO-Link Integral 8-pin M12

Part#:EA5R900XKQ

Manufacturer:Banner

Alt. Part#:15158

Product Lifecycle:Active

Get a quick Quote!

EA5R900XKQ EZ-ARRAY 5 mm Optical Spacing x 900 mm RECVR with IO-Link Integral 8-pin M12

About the manufacturer: Banner is one of the manufacturers that offers Measurement Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the EA5R900XKQ Banner price in the box on the right side or send a quick quote.

Product Details

Weight
2998.24312 g
Country Of Origin
MX
Main function
Sensor (Edge)
Display
LCD 3 digits display
Communication protocol
IO-Link
Digital outputs
2 x digital outputs (PNP transistors)
Dimensions
900mm array length
Product series / family name
A-GAGE series
Connection type
Pre-equipped with 8-pin Euro-style M12 connector
Analog outputs
2 x analog outputs (0-10Vdc)
Detectable object size
5-10mm
Sub-range name
EZ-ARRAY
Distance
180 beams / 5mm beam spacing/pitch
Sensing distance
40cm...4m
Ambient air temperature for operation
-40...+70 °C
Material
Aluminium housing
Primary brand
Banner Engineering
Functions
Measuring light curtain array edge/profile sensor receiver green LED (power ON) red LED (failure)
Resolution
5mm
Compliant with standard(s)
CE

Supply voltage (DC)

12Vdc-30Vdc (24Vdc nom.)

Degree of protection

IP65

Order code / Manufacturer SKU

15158

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

EA5R900XKQ Description

Banner Engineering EA5R900XKQ is a sensor designed for edge detection, belonging to the EZ-ARRAY series, with a main function as a measuring light curtain array edge/profile sensor (receiver alone). It features an aluminium housing and operates within an ambient air temperature range of -40 to +70°C. This sensor offers 2 analog outputs (0-10Vdc) and 2 digital outputs (PNP transistor; complementary NO/NC), ensuring versatility in connectivity. It is protected to a degree of IP65, making it suitable for various industrial environments. The EA5R900XKQ has dimensions of 900mm in array length, can detect object sizes between 5-10mm, and boasts a resolution of 5mm. Its sensing distance ranges from 40cm to 4m, and it is equipped with 180 beams with a 5mm beam spacing/pitch for precise detection. The sensor is pre-equipped with an 8-pin Euro-style M12 connector for easy installation and operates on a supply voltage of 12Vdc-30Vdc (24Vdc nom.). It also supports the IO-Link communication protocol for enhanced data exchange and configurability.
