EA5R600NUXMODQ Banner Measurement Sensors

Name: EA5R600NUXMODQ
Brand: Banner

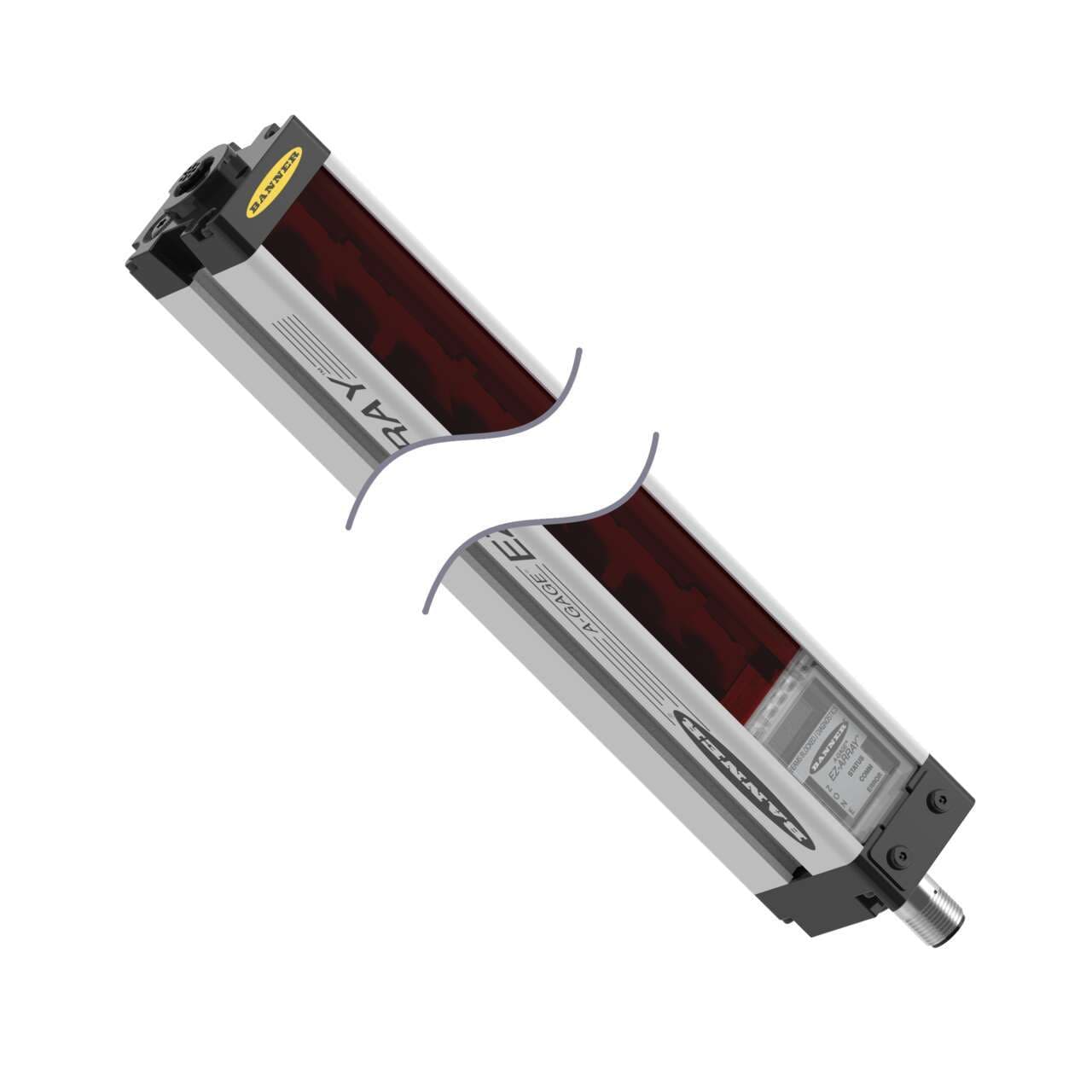

Banner EA5R600NUXMODQ EZ-ARRAY Receiver: 600 mm (23.6 in); Range: (matching emitter sold separately) 400 mm - 4 m; Input: 12-30 V dc; Outputs: 2 Solid-State NPN 2 Analog 0-10 V EIA-485; 8-pin M12 Integral QD

Part#:EA5R600NUXMODQ

Manufacturer:Banner

Alt. Part#:76199

Product Lifecycle:Active

Get a quick Quote!

EZ-ARRAY Receiver: 600 mm (23.6 in); Range: (matching emitter sold separately) 400 mm - 4 m; Input: 12-30 V dc; Outputs: 2 Solid-State NPN 2 Analog 0-10 V EIA-485; 8-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Measurement Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the EA5R600NUXMODQ Banner price in the box on the right side or send a quick quote.

Product Details

Weight
281.22704 g
Country Of Origin
MX
Power Supply
12-30V dc
Max Relative Humidity
95%
Emitter/Receiver Range (m)
0.4 - 4
Housing Length (mm)
678
Discrete Output
NPN
Array Length (mm)
600
Max Temp (°C)
70
Min Temp (°C)
-40
Number of Beams
120
Minimum Object Sensitivity (mm)
5-10
Analog Output
Voltage (0-10 V)
RS-485
Yes
Modbus RTU
Yes
RS-232
No
IO Link
No
Sensing Mode (Detailed)
Receiver
Device Type
Two-Piece
DeviceNet
No

Power

Beam Spacing

5 mm

Primary Housing Material

Aluminum

Supply voltage (DC)

12Vdc-30Vdc (24Vdc nom.)

Primary brand

Banner Engineering

Distance

120 beams / 5mm beam spacing/pitch

Main function

Sensor (Edge)

Analog outputs

2 x analog outputs (0-10Vdc)

Communication protocol

Modbus RTU RS-485

Degree of protection

IP65

Ambient air temperature for operation

-40...+70 °C

Sub-range name

EZ-ARRAY

Functions

Measuring light curtain array edge/profile sensor receiver green LED (power ON) red LED (failure)

Sensing distance

40cm...4m

Digital outputs

2 x digital outputs (NPN transistors)

Compliant with standard(s)

cULus CE

Display

LCD 3 digits display

Material

Aluminium housing

Detectable object size

5-10mm

Product series / family name

A-GAGE series

Connection type

Pre-equipped with 8-pin Euro-style M12 connector

Resolution

5mm

Dimensions

600mm array length

Order code / Manufacturer SKU

76199

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

EA5R600NUXMODQ Description

Banner Engineering EA5R600NUXMODQ is a sensor designed for edge detection with a robust aluminium housing. This sensor, part of the EZ-ARRAY series, functions as a measuring light curtain array edge/profile sensor and is specified as the receiver alone. It features a 600mm array length and is capable of detecting objects sized between 5-10mm with a resolution of 5mm. The sensing distance ranges from 40cm to 4m. It offers two analog outputs (0-10Vdc) and two digital outputs (NPN transistor; complementary NO/NC), accommodating various signaling needs. The EA5R600NUXMODQ operates within an ambient air temperature range of -40 to +70°C and is protected against ingress with a degree of protection rated at IP65, making it suitable for challenging environments. It is pre-equipped with an 8-pin Euro-style M12 connector for connectivity and supports a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal. Communication is facilitated through the Modbus RTU RS-485 protocol, and the sensor features 120 beams with a 5mm beam spacing/pitch, ensuring precise detection and measurement.
