EA5R450PUXMODQ Banner Measurement Sensors
Part#:EA5R450PUXMODQ
Alt. Part#:77540
Manufacturer:Banner
Category:Measurement Sensors
Product Lifecycle:Active
Product description

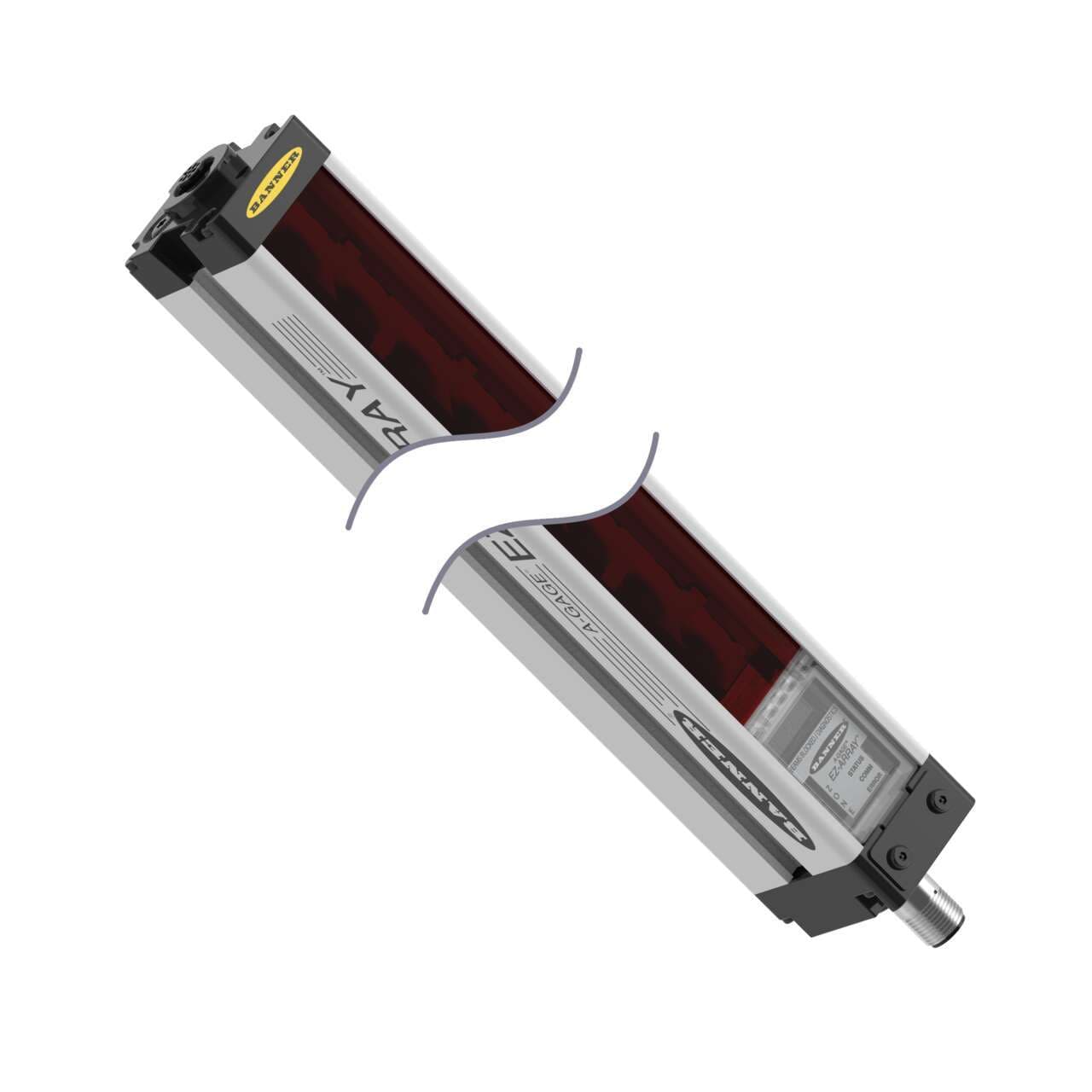

EZ-ARRAY Receiver: 450 mm (17.7 in); Range: (matching emitter sold separately) 400 mm - 4 m; Input: 12-30 V dc; Outputs: 2 Solid-State PNP 2 Analog 0-10 V EIA-485; 8-pin M12 Integral QD
Product Details
- Weight 281.22704 g
- Country Of Origin MX
- Emitter/Receiver Range (m) 0.4 - 4
- Max Relative Humidity 95%
- Power Supply 12-30V dc
- Discrete Output PNP
- Minimum Object Sensitivity (mm) 5-10
- Max Temp (°C) 70
- Array Length (mm) 450
- Housing Length (mm) 529
- Number of Beams 90
- Min Temp (°C) -40
- Analog Output Voltage (0-10 V)
- RS-485 Yes
- DeviceNet No
- RS-232 No
- Beam Spacing 5 mm
- Modbus RTU Yes
- IO Link No
- Primary Housing Material Aluminum
- Device Type Two-Piece
- Sensing Mode (Detailed) Receiver
- Power DC
- Primary brand Banner Engineering
- Supply voltage (DC) 12Vdc-30Vdc (24Vdc nom.)
- Functions Measuring light curtain array edge/profile sensor receiver green LED (power ON) red LED (failure)
- Degree of protection IP65
- Material Aluminium housing
- Main function Sensor (Edge)
- Sub-range name EZ-ARRAY
- Digital outputs 2 x digital outputs (PNP transistors)
- Dimensions 450mm array length
- Order code / Manufacturer SKU 77540
- Display LCD 3 digits display
- Connection type Pre-equipped with 8-pin Euro-style M12 connector
- Product series / family name A-GAGE series
- Sensing distance 40cm...4m
- Distance 90 beams / 5mm beam spacing/pitch
- Communication protocol Modbus RTU RS-485
- Resolution 5mm
- Analog outputs 2 x analog outputs (0-10Vdc)
- Compliant with standard(s) cULus CE
- Ambient air temperature for operation -40...+70 °C
- Detectable object size 5-10mm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EA5R450PUXMODQ on Powermatic Associates is $1,117.00. Order now.
About the product
Banner Engineering EA5R450PUXMODQ is a sensor designed for edge detection, belonging to the EZ-ARRAY series. This sensor features an aluminium housing and operates within an ambient air temperature range of -40 to +70°C. It is equipped with two analog outputs (0-10Vdc) and two digital outputs (PNP transistor; complementary NO/NC), ensuring versatile connectivity options. The device offers a degree of protection rated at IP65 and has dimensions with a 450mm array length. It is capable of detecting objects sized between 5-10mm, with a resolution of 5mm and a sensing distance ranging from 40cm to 4m. This measuring light curtain array edge/profile sensor (receiver alone) is rectangular in shape and comes pre-equipped with an 8-pin Euro-style M12 connector for easy installation. It requires a supply voltage of 12Vdc-30Vdc (24Vdc nom.) and supports the Modbus RTU RS-485 communication protocol. The sensor features 90 beams with a 5mm beam spacing/pitch, facilitating precise detection and measurement tasks.
