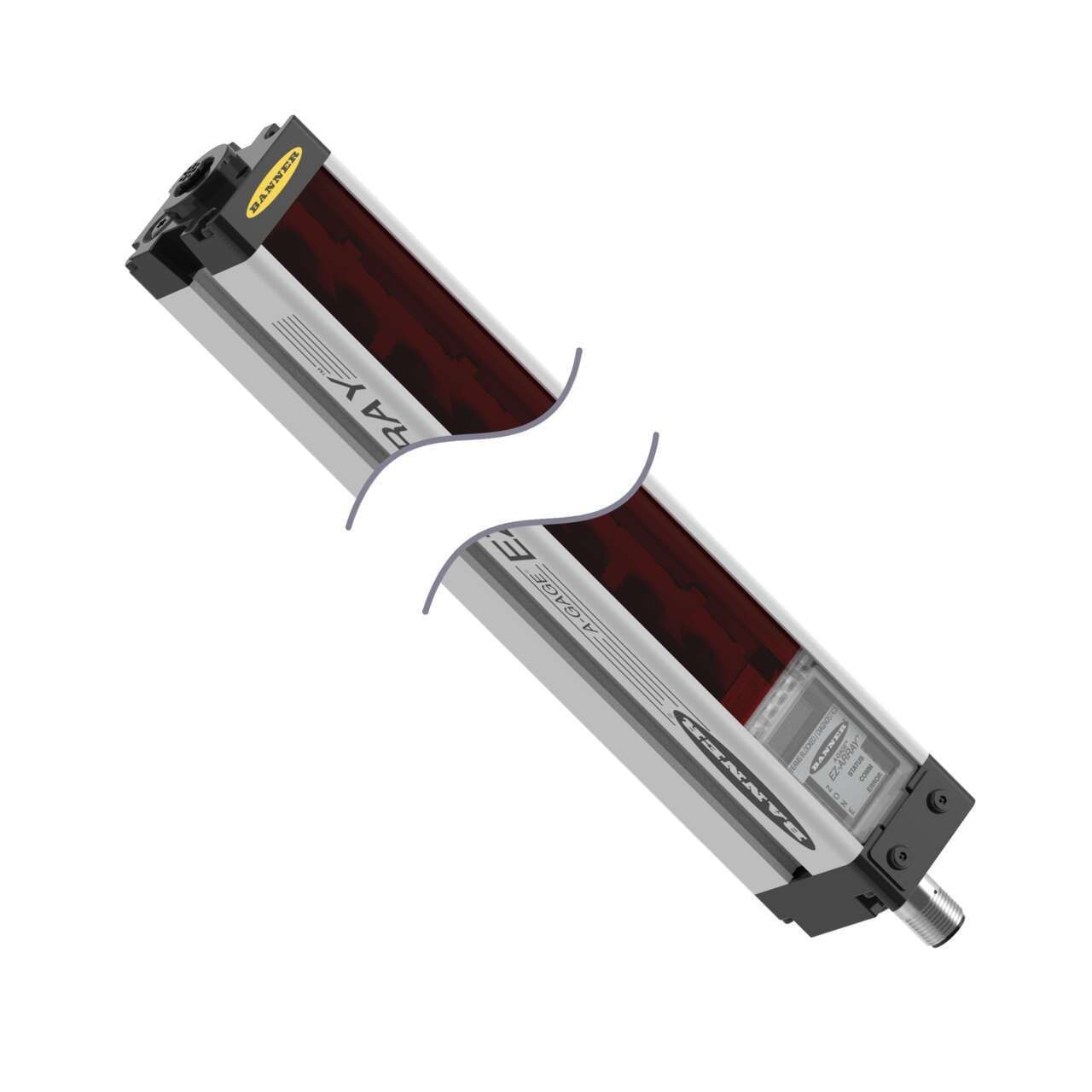

EA5R450PIXMODSRQ Banner Measurement Sensors
Part#:EA5R450PIXMODSRQ
Alt. Part#:82051
Manufacturer:Banner
Category:Measurement Sensors
Product Lifecycle:Active
Product description
EZ-ARRAY Receiver: 450 mm (17.7 in); Range: 30-1500 mm; Input:; Outputs: 2 Solid-State PNP 2 Analog 4-20 mA EIA-4; 8-pin M12 Integral QD
Product Details
- Weight 2140.95424 g
- Country Of Origin MX
- Emitter/Receiver Range (m) 0.3 - 1.5
- Discrete Output PNP
- Min Temp (°C) -40
- Power Supply 12-30V dc
- Housing Length (mm) 529
- Max Relative Humidity 95%
- Minimum Object Sensitivity (mm) 5-10
- Max Temp (°C) 70
- Array Length (mm) 450
- Analog Output Current (4-20 mA)
- Number of Beams 90
- RS-485 Yes
- RS-232 No
- IO Link No
- Modbus RTU Yes
- DeviceNet No
- Beam Spacing 5 mm
- Device Type Two-Piece
- Primary Housing Material Aluminum
- Power DC
- Sensing Mode (Detailed) Receiver
- Short Range Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EA5R450PIXMODSRQ on Powermatic Associates is $1,143.00. Order now.
About the product
Banner Engineering EA5R450PIXMODSRQ is an edge sensor with a rectangular shape, designed for short-range measuring within the EZ-ARRAY series. It features an aluminium housing and operates within an ambient air temperature range of -40 to +70°C. This sensor offers two analog outputs (4-20mA) and two digital outputs (PNP transistor; complementary NO/NC), ensuring versatile connectivity options. With a 450mm array length and a resolution of 5mm, it can detect objects sized between 5-10mm over a sensing distance of 30mm to 1.5m. The EA5R450PIXMODSRQ is equipped with a pre-equipped 8-pin Euro-style M12 connector, supports a supply voltage of 12Vdc-30Vdc (24Vdc nom.), and utilizes the Modbus RTU RS-485 communication protocol. It features 90 beams with a 5mm beam spacing/pitch and is protected to a degree of IP65, making it suitable for a variety of industrial applications.
