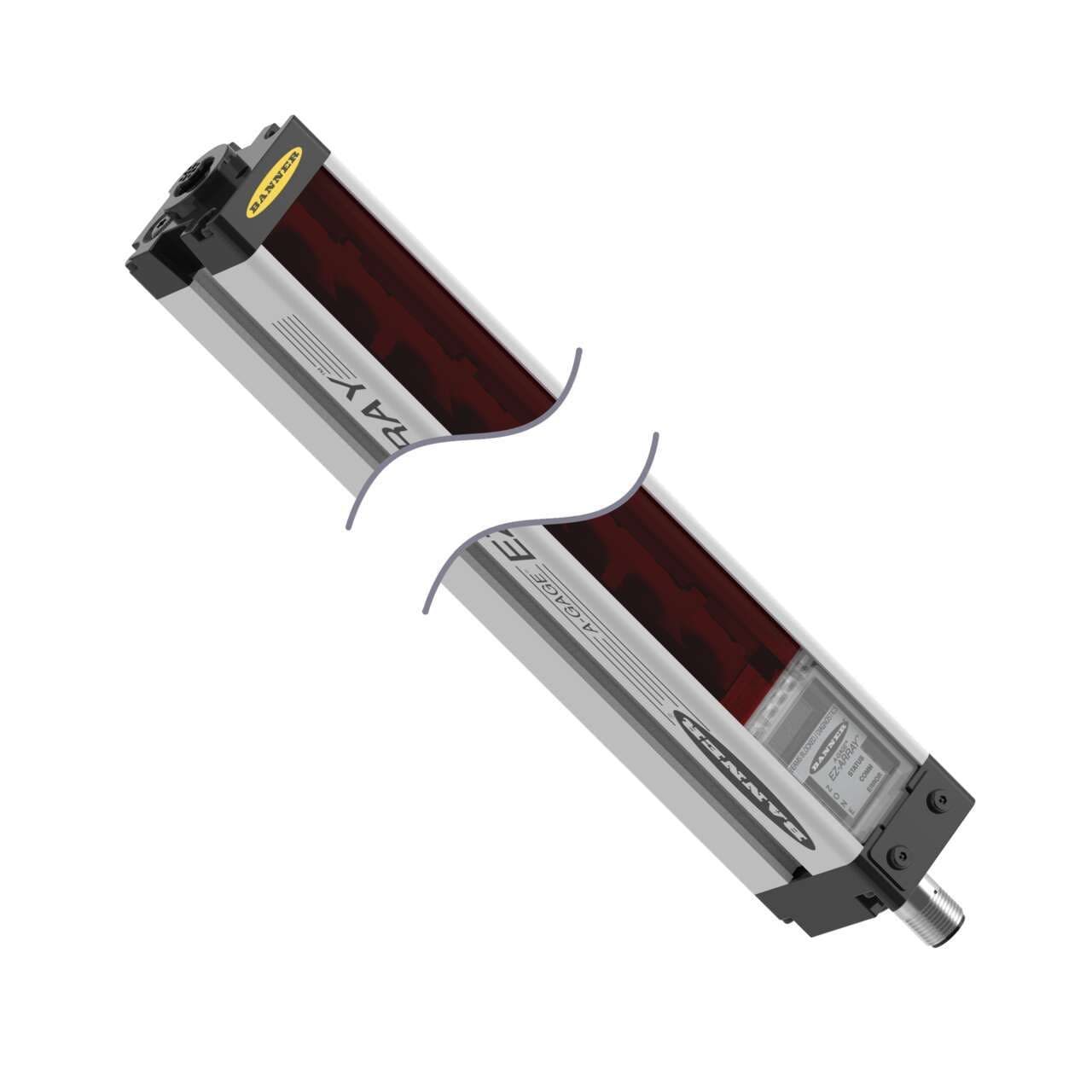

EA5R2100PUXMODQ Banner Measurement Sensors

Name: EA5R2100PUXMODQ
Brand: Banner
Price: 3093 USD
Availability: BackOrder

EA5R2100PUXMODQ on Powermatic Associates

Part#:EA5R2100PUXMODQ

Manufacturer:Banner

Alt. Part#:78941

Product Lifecycle:Active

Get a quick Quote!

EZ-ARRAY Receiver: 2100 mm (82.7 in); Range: (matching emitter sold separately) 400 mm - 4 m; Input: 15-30 V; Outputs: 2 Solid-State PNP 2 Analog 0-10 V EIA-485; 8-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Measurement Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the EA5R2100PUXMODQ Banner price in the box on the right side or send a quick quote.

Product Details

Weight
6078.1328 g
Country Of Origin
MX
Emitter/Receiver Range (m)
0.4 - 4
Max Relative Humidity
95%
Power Supply
12-30V dc
Discrete Output
PNP
Minimum Object Sensitivity (mm)
5-10
Number of Beams
420
Max Temp (°C)
70
Min Temp (°C)
-40
Housing Length (mm)
2178
Array Length (mm)
2100
Analog Output
Voltage (0-10 V)
RS-485
Yes
Modbus RTU
Yes
RS-232
No
DeviceNet
No
Beam Spacing
5 mm
Device Type
Two-Piece
Power
DC

Sensing Mode (Detailed)

Receiver

IO Link

Primary Housing Material

Aluminum

Product series / family name

A-GAGE series

Functions

Measuring light curtain array edge/profile sensor receiver green LED (power ON) red LED (failure)

Analog outputs

2 x analog outputs (0-10Vdc)

Dimensions

2100mm array length

Primary brand

Banner Engineering

Distance

420 beams / 5mm beam spacing/pitch

Sensing distance

40cm...4m

Connection type

Pre-equipped with 8-pin Euro-style M12 connector

Compliant with standard(s)

cULus CE

Main function

Sensor (Edge)

Display

LCD 3 digits display

Sub-range name

EZ-ARRAY

Resolution

5mm

Ambient air temperature for operation

-40...+70 °C

Supply voltage (DC)

12Vdc-30Vdc (24Vdc nom.)

Digital outputs

2 x digital outputs (PNP transistors)

Degree of protection

IP65

Detectable object size

5-10mm

Communication protocol

Modbus RTU RS-485

Order code / Manufacturer SKU

78941

Material

Aluminium housing

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

EA5R2100PUXMODQ Description

Banner Engineering EA5R2100PUXMODQ is a sensor designed for edge detection with a robust aluminium housing. This sensor, part of the EZ-ARRAY series, functions as a measuring light curtain array edge/profile sensor and is specified as the receiver alone. It operates within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP65, making it suitable for various industrial environments. The sensor features a 2100mm array length and is capable of detecting objects sized between 5-10mm with a resolution of 5mm. Its sensing distance spans from 40cm to 4m, and it includes 420 beams with a 5mm beam spacing/pitch. For outputs, it is equipped with 2 analog outputs (0-10Vdc) and 2 digital outputs (PNP transistor; complementary NO/NC), facilitating versatile connectivity options. The EA5R2100PUXMODQ supports a supply voltage range of 12Vdc-30Vdc (24Vdc nominal) and incorporates a pre-equipped 8-pin Euro-style M12 connector for easy installation. Communication with this sensor is enabled through the Modbus RTU RS-485 protocol, ensuring compatibility with a wide range of industrial control systems.
