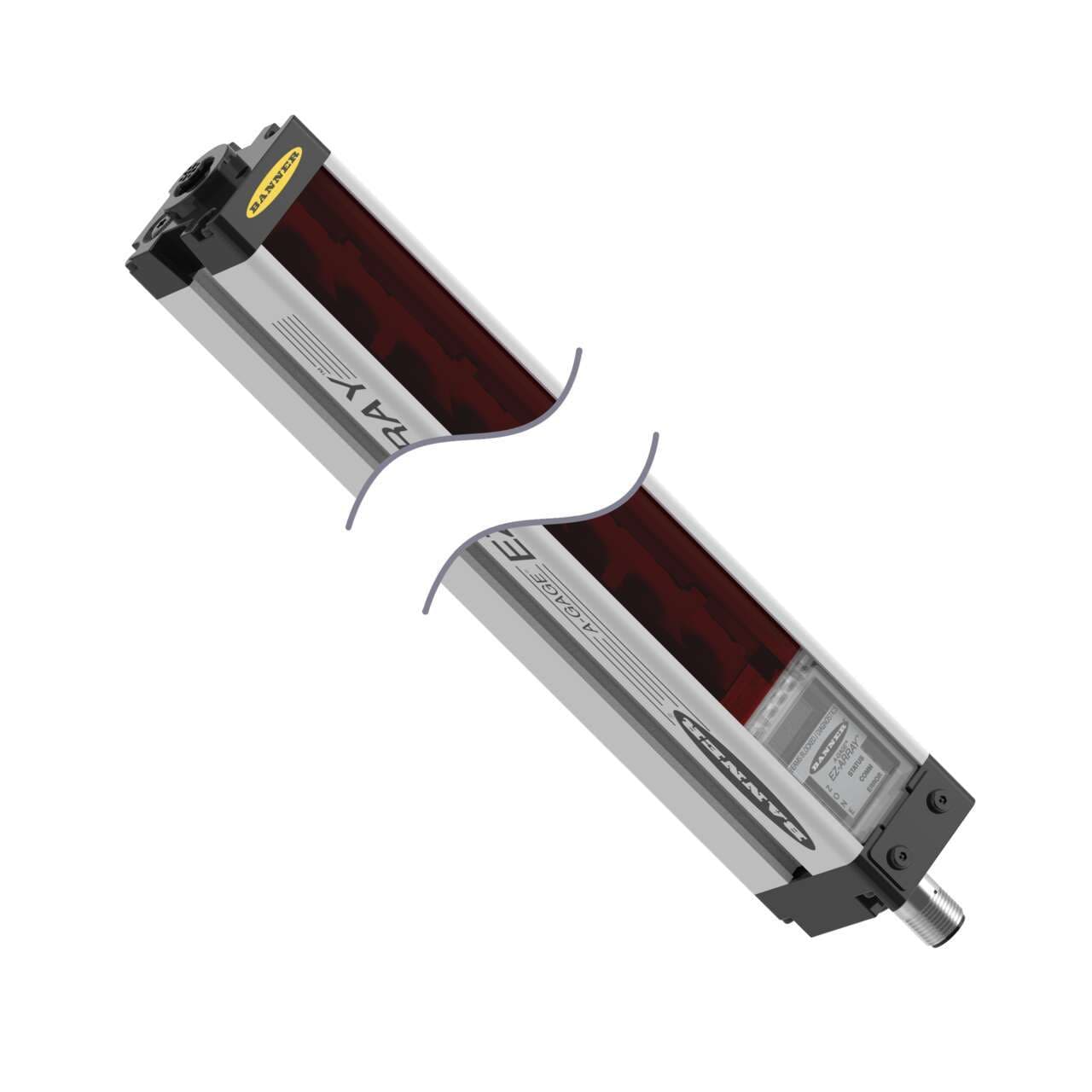

EA5R1800PIXMODSRLCQ Banner Measurement Sensors
Part#:EA5R1800PIXMODSRLCQ
Alt. Part#:94116
Manufacturer:Banner
Category:Measurement Sensors
Product Lifecycle:Active
Product description
EZ-ARRAY Short Range Receiver: 1800 mm; Range 30-1500 mm ;Threshold Low Contrast;Input 12-30 V dc; Output 2 PNP Discrete; Output 2 4-20 mA Analog; EIA-485; 8-pin M12 QD 5-pin M12 QD
Product Details
- Weight 5443.104 g
- Country Of Origin MX
- Power Supply 12-30V dc
- Max Temp (°C) 70
- Minimum Object Sensitivity (mm) 5-10
- Emitter/Receiver Range (m) 0.3 - 1.5
- Max Relative Humidity 95%
- Discrete Output PNP
- RS-232 No
- Housing Length (mm) 1878
- Analog Output Current (4-20 mA)
- Array Length (mm) 1800
- Modbus RTU Yes
- Number of Beams 360
- RS-485 Yes
- Min Temp (°C) -40
- DeviceNet No
- Primary Housing Material Aluminum
- IO Link No
- Beam Spacing 5 mm
- Device Type Two-Piece
- Sensing Mode (Detailed) Receiver
- Low Contrast Yes
- Power DC
- Short Range Yes
- Primary brand Banner Engineering
- Display LCD 3 digits display
- Distance 360 beams / 5mm beam spacing/pitch
- Communication protocol Modbus RTU RS-485
- Sub-range name EZ-ARRAY
- Connection type Pre-equipped with 8-pin Euro-style M12 connector
- Resolution 5mm
- Order code / Manufacturer SKU 94116
- Main function Sensor (Edge)
- Supply voltage (DC) 12Vdc-30Vdc (24Vdc nom.)
- Functions Short-range low-contrast measuring light curtain array edge/profile sensor receiver green LED (power ON) red LED (failure)
- Detectable object size 5-10mm
- Product series / family name A-GAGE series
- Sensing distance 30cm...1.5m
- Analog outputs 2 x analog outputs (4-20mA)
- Compliant with standard(s) CE
- Material Aluminium housing
- Digital outputs 2 x digital outputs (PNP transistors)
- Degree of protection IP65
- Ambient air temperature for operation -40...+70 °C
- Dimensions 1800mm array length
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EA5R1800PIXMODSRLCQ on Powermatic Associates is $2,773.00. Order now.
About the product
Banner Engineering EA5R1800PIXMODSRLCQ is a sensor designed for edge detection, belonging to the EZ-ARRAY series. It features an aluminium housing and operates within an ambient air temperature range of -40 to +70°C. This sensor offers two analog outputs (4-20mA) and two digital outputs (PNP transistor; complementary NO/NC), ensuring versatile connectivity options. With an IP65 degree of protection, it is built to withstand challenging environments. The sensor's dimensions include an 1800mm array length, capable of detecting objects sized between 5-10mm. It boasts a resolution of 5mm and a sensing distance ranging from 30mm to 1.5m. This model is specifically designed as a short-range low-contrast measuring light curtain array edge/profile sensor (receiver alone), featuring 360 beams with a 5mm beam spacing/pitch. It comes pre-equipped with an 8-pin Euro-style M12 connector for easy installation and operates on a supply voltage of 12Vdc-30Vdc (24Vdc nom.). Additionally, it supports the Modbus RTU RS-485 communication protocol for efficient data transmission.
