EA5R1800NIXMODQ Banner Measurement Sensors
Part#:EA5R1800NIXMODQ
Manufacturer:Banner
Alt. Part#:75420
Product Lifecycle:Active
Get a quick Quote!

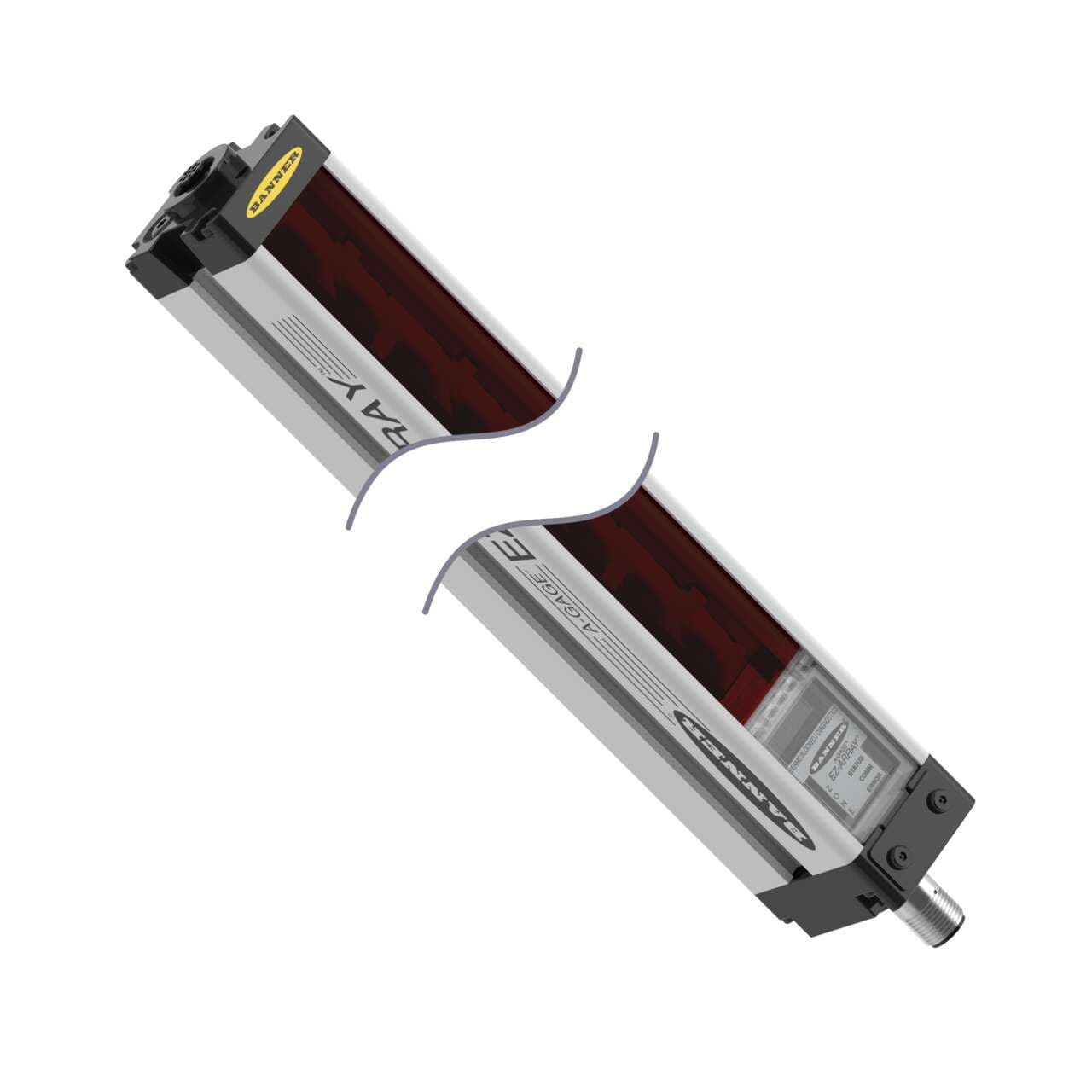

EZ-ARRAY Receiver: 1800 mm (70.9 in); Range: (matching emitter sold separately) 400 mm - 4 m; Input: 12-30 V dc; Outputs: 2 Solid-State NPN 2 Analog 4-20 mA EIA-485; 8-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Measurement Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the EA5R1800NIXMODQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 526.16672 g
- Country Of Origin MX
- Emitter/Receiver Range (m) 0.4 - 4
- Power Supply 12-30V dc
- Max Relative Humidity 95%
- Minimum Object Sensitivity (mm) 5-10
- Discrete Output NPN
- Max Temp (°C) 70
- Array Length (mm) 1800
- Analog Output Current (4-20 mA)
- Number of Beams 360
- Housing Length (mm) 1878
- Min Temp (°C) -40
- RS-485 Yes
- IO Link No
- Modbus RTU Yes
- RS-232 No
- DeviceNet No
- Primary Housing Material Aluminum
- Device Type Two-Piece
- Sensing Mode (Detailed) Receiver
- Power DC
- Beam Spacing 5 mm
- Sub-range name EZ-ARRAY
- Communication protocol Modbus RTU RS-485
- Compliant with standard(s) cULus CE
- Product series / family name A-GAGE series
- Display LCD 3 digits display
- Dimensions 1800mm array length
- Sensing distance 40cm...4m
- Material Aluminium housing
- Distance 360 beams / 5mm beam spacing/pitch
- Connection type Pre-equipped with 8-pin Euro-style M12 connector
- Ambient air temperature for operation -40...+70 °C
- Order code / Manufacturer SKU 75420
- Digital outputs 2 x digital outputs (NPN transistors)
- Primary brand Banner Engineering
- Analog outputs 2 x analog outputs (4-20mA)
- Main function Sensor (Edge)
- Supply voltage (DC) 12Vdc-30Vdc (24Vdc nom.)
- Resolution 5mm
- Functions Measuring light curtain array edge/profile sensor receiver green LED (power ON) red LED (failure)
- Degree of protection IP65
- Detectable object size 5-10mm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
EA5R1800NIXMODQ Description
Banner Engineering EA5R1800NIXMODQ is a sensor designed for edge detection with a robust aluminium housing. This sensor, part of the EZ-ARRAY series, functions as a measuring light curtain array edge/profile sensor and is specified as the receiver alone. It features an array length of 1800mm and is capable of detecting objects sized between 5-10mm with a resolution of 5mm. The sensing distance ranges from 40cm to 4m. For outputs, it is equipped with 2 analog outputs (4-20mA) and 2 digital outputs (NPN transistor; complementary NO/NC), supporting versatile application needs. The sensor operates within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP65, making it suitable for various environmental conditions. It is pre-equipped with an 8-pin Euro-style M12 connector for connectivity and supports a supply voltage of 12Vdc-30Vdc (24Vdc nom.). Communication is facilitated via Modbus RTU RS-485 protocol. The sensor's design includes 360 beams with a 5mm beam spacing/pitch, encapsulated in a rectangular shape.
