EA5R1200PUXMODQ Banner Measurement Sensors

Name: EA5R1200PUXMODQ
Brand: Banner

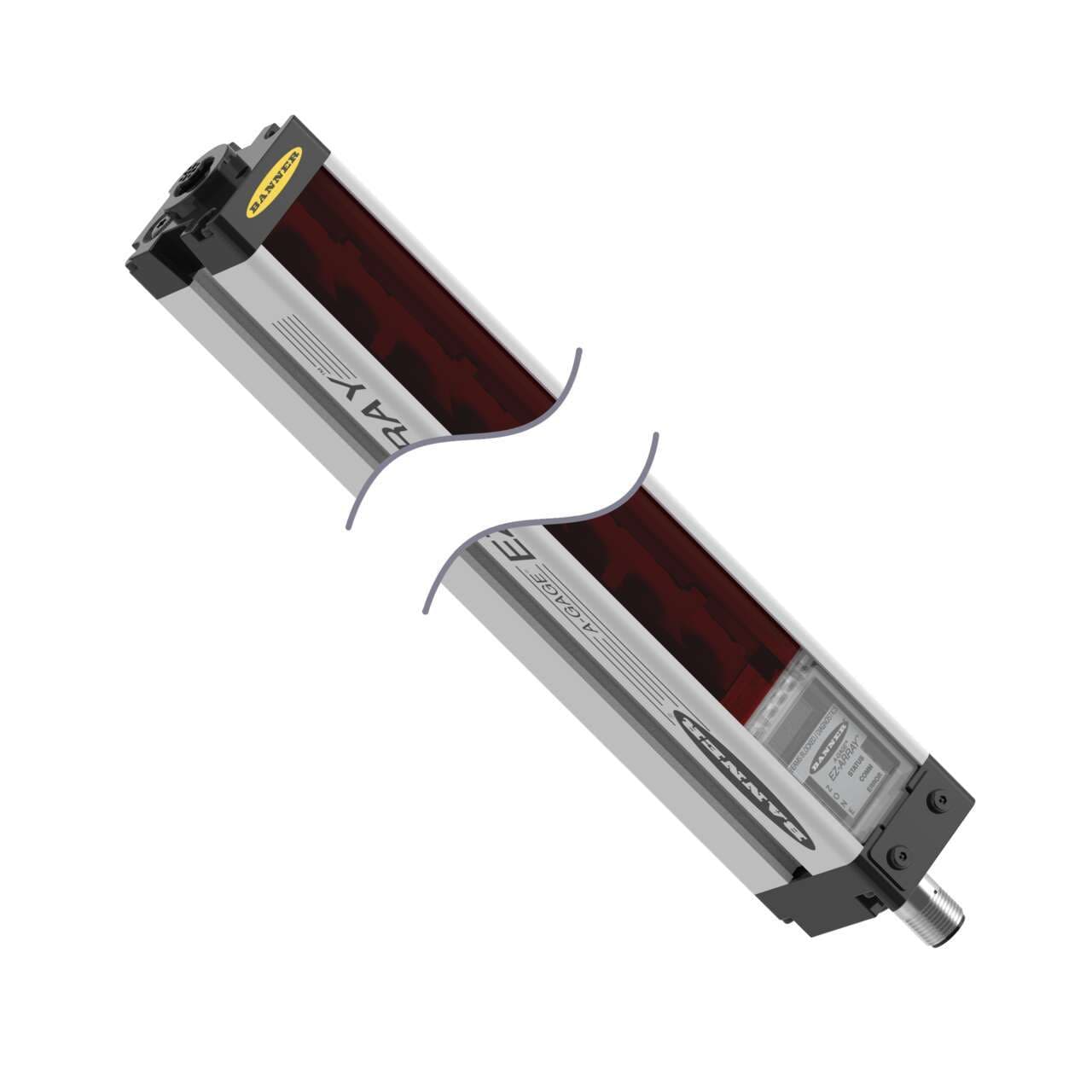

Banner EA5R1200PUXMODQ EZ-ARRAY Receiver: 1200 mm (47.2 in); Range: (matching emitter sold separately) 400 mm - 4 m; Input: 12-30 V dc; Outputs: 2 Solid-State PNP 2 Analog 0-10 V EIA-485; 8-pin M12 Integral QD

Part#:EA5R1200PUXMODQ

Manufacturer:Banner

Alt. Part#:77545

Product Lifecycle:Active

Get a quick Quote!

EZ-ARRAY Receiver: 1200 mm (47.2 in); Range: (matching emitter sold separately) 400 mm - 4 m; Input: 12-30 V dc; Outputs: 2 Solid-State PNP 2 Analog 0-10 V EIA-485; 8-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Measurement Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the EA5R1200PUXMODQ Banner price in the box on the right side or send a quick quote.

Product Details

Weight
526.16672 g
Country Of Origin
MX
Power Supply
12-30V dc
Max Relative Humidity
95%
Emitter/Receiver Range (m)
0.4 - 4
Minimum Object Sensitivity (mm)
5-10
Housing Length (mm)
1278
Number of Beams
240
Max Temp (°C)
70
Min Temp (°C)
-40
Discrete Output
PNP
Analog Output
Voltage (0-10 V)
Array Length (mm)
1200
RS-485
Yes
Primary Housing Material
Aluminum
Modbus RTU
Yes
Beam Spacing
5 mm
RS-232
No
Device Type
Two-Piece
IO Link
No

DeviceNet

Sensing Mode (Detailed)

Receiver

Power

Sub-range name

EZ-ARRAY

Communication protocol

Modbus RTU RS-485

Digital outputs

2 x digital outputs (PNP transistors)

Distance

240 beams / 5mm beam spacing/pitch

Order code / Manufacturer SKU

77545

Primary brand

Banner Engineering

Display

LCD 3 digits display

Sensing distance

40cm...4m

Degree of protection

IP65

Compliant with standard(s)

cULus CE

Main function

Sensor (Edge)

Functions

Measuring light curtain array edge/profile sensor receiver green LED (power ON) red LED (failure)

Analog outputs

2 x analog outputs (0-10Vdc)

Material

Aluminium housing

Detectable object size

5-10mm

Product series / family name

A-GAGE series

Ambient air temperature for operation

-40...+70 °C

Connection type

Pre-equipped with 8-pin Euro-style M12 connector

Supply voltage (DC)

12Vdc-30Vdc (24Vdc nom.)

Dimensions

1200mm array length

Resolution

5mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

EA5R1200PUXMODQ Description

Banner Engineering EA5R1200PUXMODQ is a sensor designed for edge detection with a robust aluminium housing. This sensor, part of the EZ-ARRAY series, functions as a measuring light curtain array edge/profile sensor and is specified as the receiver alone. It operates within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP65, making it suitable for various industrial environments. The sensor features a 1200mm array length and can detect objects sized between 5-10mm within a sensing distance of 40cm to 4m. It provides high resolution with 240 beams and a 5mm beam spacing/pitch. The EA5R1200PUXMODQ is equipped with 2 analog outputs (0-10Vdc) and 2 digital outputs (PNP transistor; complementary NO/NC) for versatile connectivity. It also includes a pre-equipped 8-pin Euro-style M12 connector for easy installation. The sensor operates on a supply voltage range of 12Vdc-30Vdc (24Vdc nom.) and supports Modbus RTU RS-485 communication protocol for efficient data transmission.
