DX80N9Q45TA Banner Proximity Sensors

DX80N9Q45TA on Powermatic Associates
Banner

Part#:DX80N9Q45TA

Manufacturer:Banner

Alt. Part#:809330

Product Lifecycle:Active

Get a quick Quote!

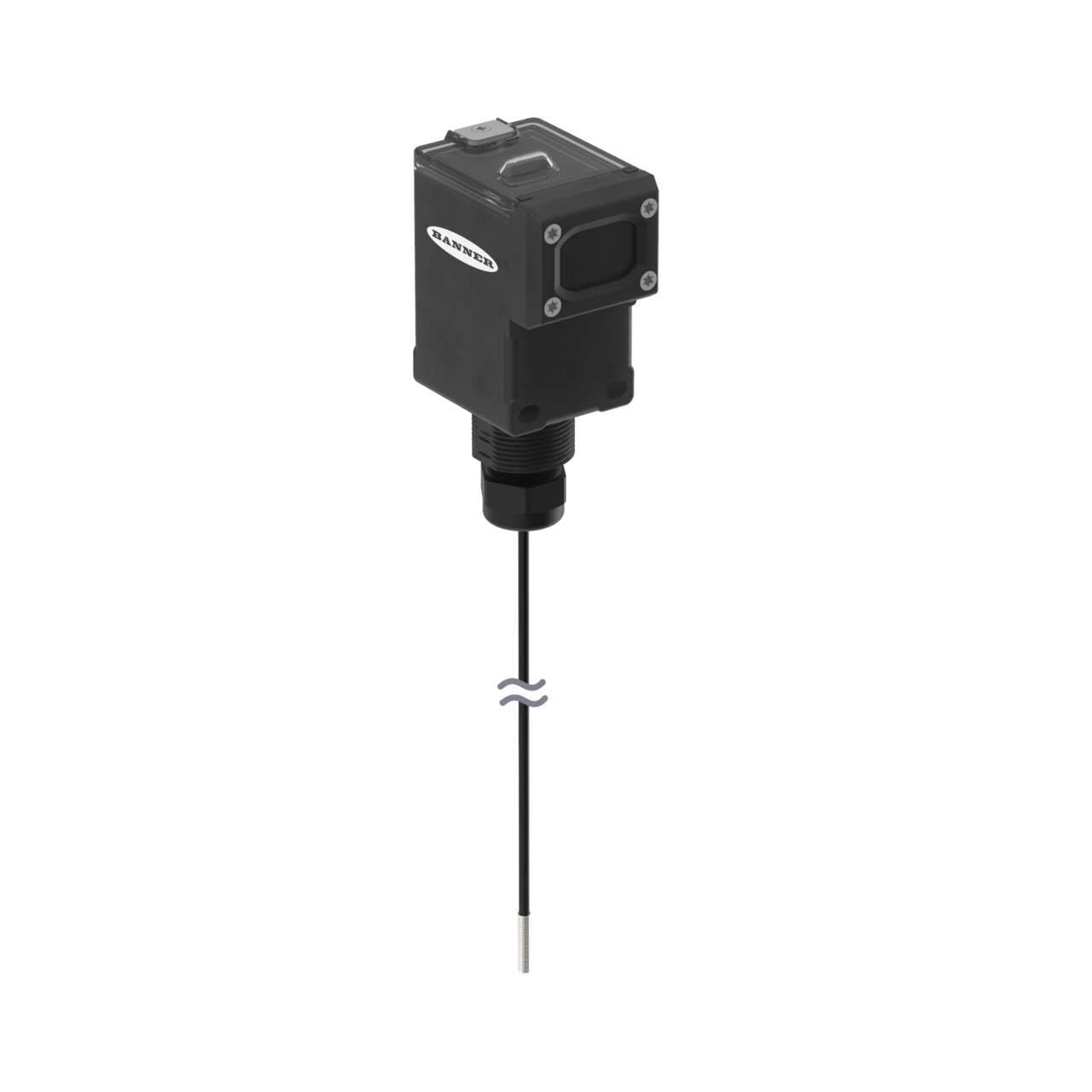

Wireless Q45 900 MHz; with Integrated Temperature; 1.8 m Thermistor Cable

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DX80N9Q45TA Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    340.194 g
  • Country Of Origin
    US
  • RS-485
    No
  • RS-232
    No
  • Wireless
    Yes
  • Wireless Radio Frequency
    900 MHz
  • PROFINET
    No
  • 1-wire Serial Interface
    No
  • Modbus/TCP
    No
  • Modbus RTU
    No
  • Relative Humidity
    90% at 50° C
  • Ships With Battery
    Yes
  • EtherNet/IP
    No
  • Application: Temperature Input
    Yes
  • Feature: Hazardous Area
    No
  • Tree Topology
    No
  • Star Topology
    Yes
  • Point-to-Point Topology
    Yes
  • Point-to-Multipoint Topology
    Yes
  • Environmental Rating (IP)
    IP67
  • Min Temp Operating Conditions
    -40
  • Max Temp Operating Conditions
    70
  • Environmental Rating (NEMA)
    NEMA 6P
  • Power Supply
    2 AA Batteries
  • Device Type
    Sensor and Node
  • Power
    Battery
  • Input/Output
    Thermistor
  • Housing Style
    Integrated Battery

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

DX80N9Q45TA Description

Banner Engineering DX80N9Q45TA is a Remote Terminal Unit (RTU) designed for predictive maintenance within the SureCross Q45 all-in-one series. It features a moulded reinforced thermoplastic polyester housing with an o-ring sealed transparent polycarbonate cover, a moulded acrylic lens, and stainless steel hardware, ensuring durability. This unit operates within an ambient air temperature range of -40 to +70°C and offers a high degree of protection with an IP67 NEMA 6P rating. It has dimensions of H118.5mm x W44.4mm x D62.7mm and comes in a rectangular shape with a black housing. The DX80N9Q45TA is equipped with a 1.8m thermistor probe capable of measuring temperatures from -20 to 105°C, and it utilizes FHSS (Frequency Hopping Spread Spectrum) technology for reliable communication. It features 2 x bi-color LEDs for visual position indication and operates on a 3.6Vdc internal battery. The light color is red/green, and it has a transmission frequency of 900 MHz with a maximum transmission distance of 3.2km at nominal emission power.

Related documents DX80N9Q45TA Specs

DX80N9Q45TA 217352.pdf
