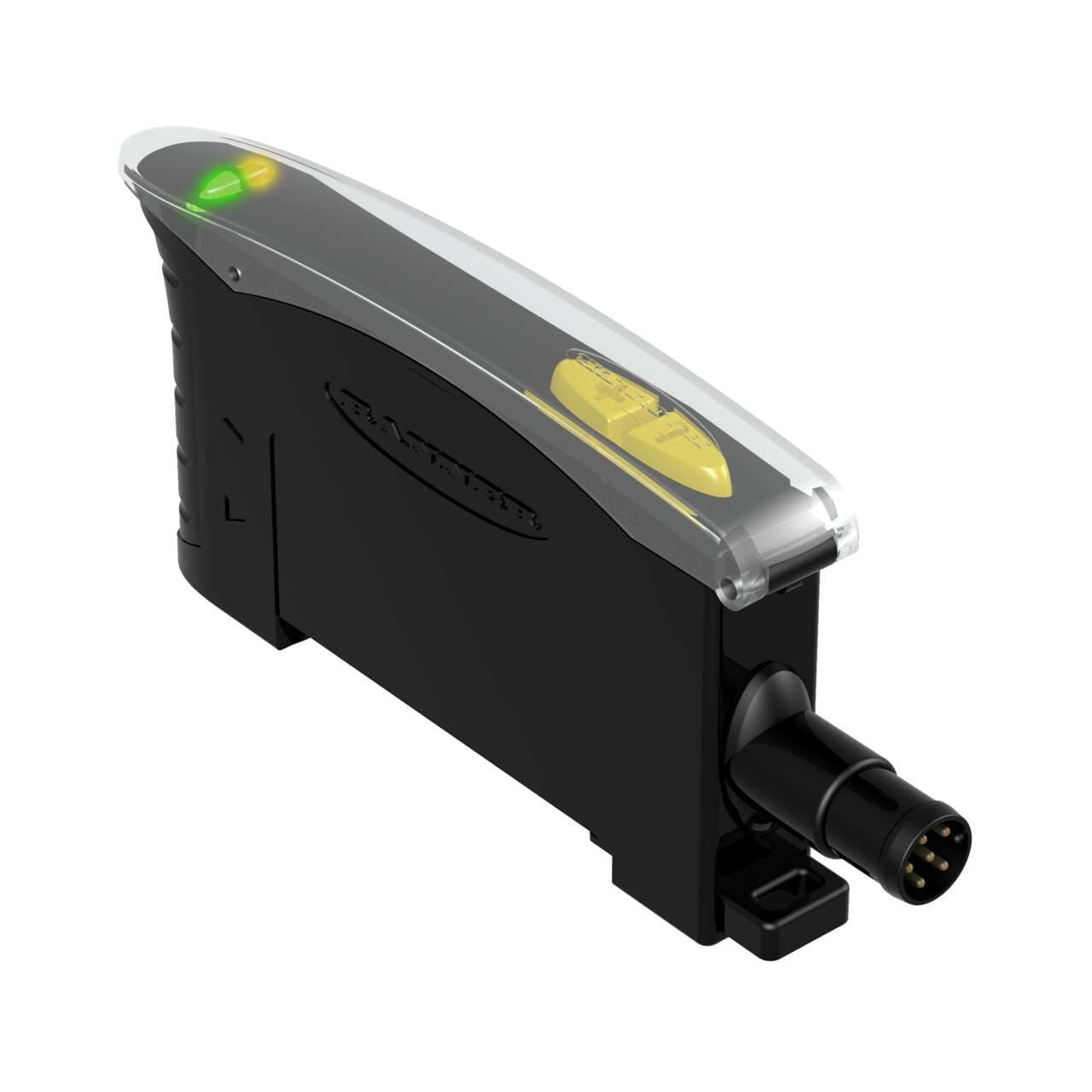

D10UPFPQ Banner Sensor Accessories
Part#:D10UPFPQ
Alt. Part#:63996
Manufacturer:Banner
Category:Sensor Accessories
Product Lifecycle:Active
Product description
D10 Expert: Red Beam Plastic Fiber; Range: Depends on Fiber; Input: 15-24 V dc; Output: PNP 0-10 V dc; M8 Integral QD
Product Details
- Weight 90.7184 g
- Country Of Origin CN
- Feature: Hazardous Area No
- Housing Material Thermoplastic
- IO Link No
- Feature: Timing (Hold/Delay) Yes
- Feature: Audible No
- Analog Output 0 to 10 V dc
- Special Feature: Bussable Power No
- Minimum response time (ms) .05
- Indicator Display Type Single Digital Display
- Delay at Power-up (ms) 1000
- Power Supply/Supply Voltage 15-24 V dc
- Adjustments Teach Button
- Intrinsically Safe No
- Min Op. Temperature (°C) -10
- Crosstalk Avoidance Yes
- Output Type (Specific) Analog & Discrete
- Special Feature: Remote Teach Yes
- Max Op. Relative Humidity (%) 90% @ 50°C
- IP Rating IP50
- Max Op. Temperature (°C) 55
- Number of Pins 6
- NEMA Rating NEMA 1
- Repeatability (µs) 25 to 100
- Color LED - Amplifiers Red
- Output PNP
- Fiber Type Plastic and Glass
- Connection Integral QD
- Quick Disconnect Type M8 (Pico)
- Input/Output Analog & Discrete
- Power DC
- Housing Style DIN Rail
- Primary Housing Material Thermoplastic
- Primary brand Banner Engineering
- Functions High-performance fiber optic sensor amplifier green LED (power ON) yellow LED (output state) TEACH mode
- Digital outputs 2 x digital outputs (PNP transistors)
- Analog outputs 1 x analog output (0-10Vdc)
- Sub-range name D10 Expert series
- Light Color Visible red
- Connection type Pre-equipped with 6-pin Pico-style M8 connector
- Material thermoplastic housing Polycarbonate cover
- Compliant with standard(s) cURus CE
- Product series / family name Fiber optic amplifiers
- Supply voltage (DC) 15Vdc-24Vdc
- Mounting mode DIN rail mounting
- Contents mounting bracket M3 hardware
- Net Depth (mm) 35.9 mm
- Display LED 4 digits display
- Shape Rectangular
- Ambient air temperature for operation -10...+55 °C
- Net Height (mm) 68.1 mm
- Main function Amplifier for sensor
- Wavelength 680 nm
- Degree of protection IP50 NEMA 1
- Technical compatibility with plastic fiber optic cable
- Net Width (mm) 10.5 mm
- Order code / Manufacturer SKU 63996
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of D10UPFPQ on Powermatic Associates is $379.00. Order now.
About the product
Banner Engineering D10UPFPQ is an amplifier for sensors, designed for DIN rail mounting. It features a thermoplastic housing with a polycarbonate cover, measuring 11 mm in width, 36 mm in depth, and 69 mm in height. This part operates within an ambient air temperature range of -10 to +55 °C and offers a degree of protection rated at IP50 NEMA 1. It is equipped with 1 x analog output (0-10Vdc) and 2 x digital outputs (PNP transistor), ensuring versatile connectivity options. The D10UPFPQ, part of the D10 Expert series, utilizes a visible red light with a wavelength of 680 nm and boasts a rapid response time of 50µs. Its design incorporates TEACH mode for simplified setup and is pre-equipped with a 6-pin Pico-style M8 connector for easy connection. The device requires a supply voltage of 15Vdc-24Vdc to operate.
