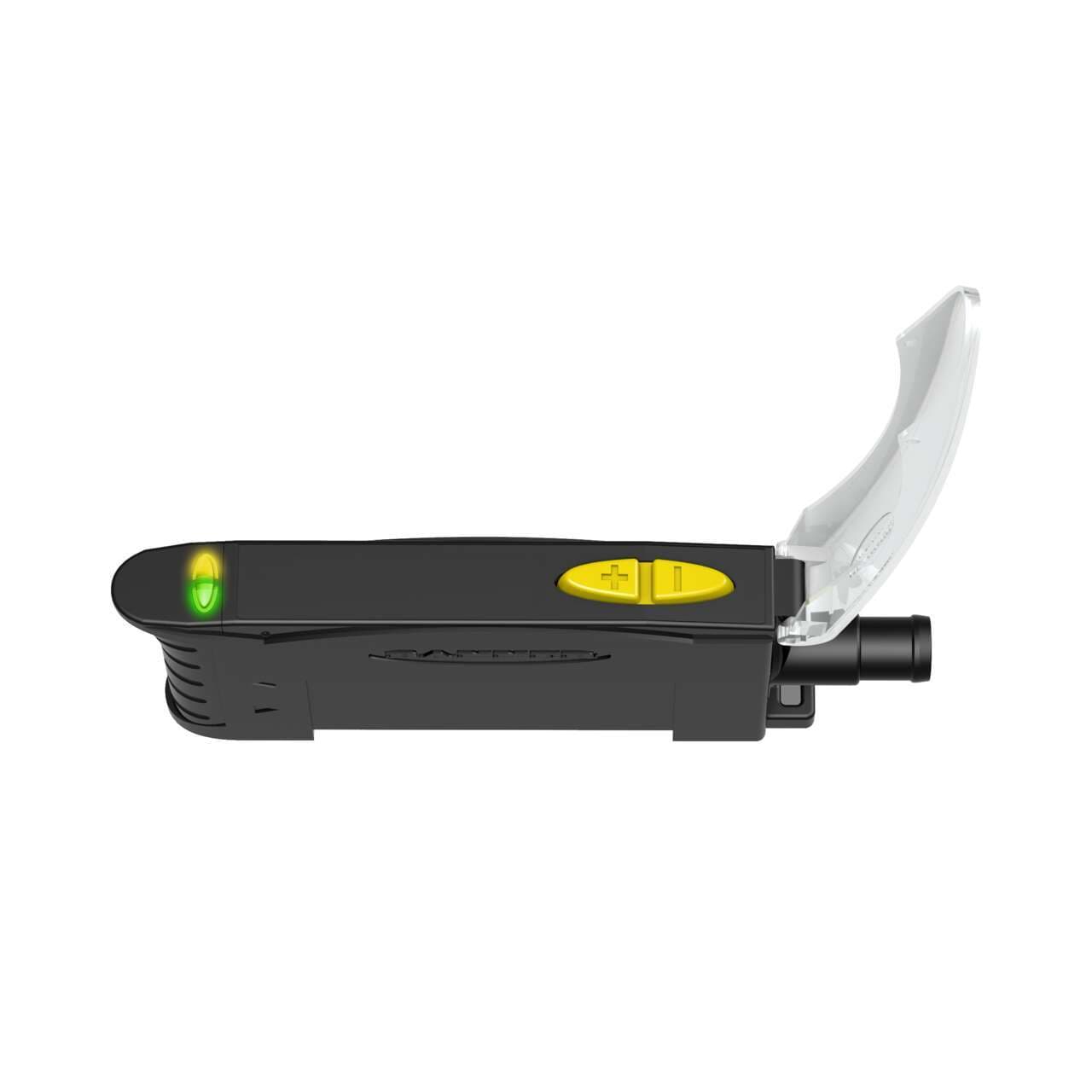

D10UNFPQ Banner Sensor Accessories
Part#:D10UNFPQ
Alt. Part#:63993
Manufacturer:Banner
Category:Sensor Accessories
Product Lifecycle:Active
Product description
D10 Expert: Red Beam Plastic Fiber; Range: Depends on Fiber; Input: 15-24 V dc; Output: NPN 0-10 V dc; M8 Integral QD
Product Details
- Weight 90.7184 g
- Country Of Origin CN
- Housing Material Thermoplastic
- IO Link No
- Feature: Audible No
- Feature: Timing (Hold/Delay) Yes
- Feature: Hazardous Area No
- Analog Output 0 to 10 V dc
- Special Feature: Bussable Power No
- Minimum response time (ms) .05
- Indicator Display Type Single Digital Display
- Delay at Power-up (ms) 1000
- Adjustments Teach Button
- Intrinsically Safe No
- Crosstalk Avoidance Yes
- Power Supply/Supply Voltage 15-24 V dc
- Min Op. Temperature (°C) -10
- Max Op. Relative Humidity (%) 90% @ 50°C
- Special Feature: Remote Teach Yes
- Output Type (Specific) Analog & Discrete
- Repeatability (µs) 25 to 100
- Number of Pins 6
- IP Rating IP50
- NEMA Rating NEMA 1
- Max Op. Temperature (°C) 55
- Quick Disconnect Type M8 (Pico)
- Fiber Type Plastic and Glass
- Power DC
- Primary Housing Material Thermoplastic
- Color LED - Amplifiers Red
- Input/Output Analog & Discrete
- Output NPN
- Connection Integral QD
- Housing Style DIN Rail
- Product series / family name Fiber optic amplifiers
- Light Color Visible red
- Primary brand Banner Engineering
- Functions High-performance fiber optic sensor amplifier green LED (power ON) yellow LED (output state) TEACH mode
- Mounting mode DIN rail mounting
- Material thermoplastic housing Polycarbonate cover
- Sub-range name D10 Expert series
- Shape Rectangular
- Digital outputs 2 x digital outputs (NPN transistors)
- Order code / Manufacturer SKU 63993
- Net Width (mm) 10.5 mm
- Main function Amplifier for sensor
- Supply voltage (DC) 15Vdc-24Vdc
- Connection type Pre-equipped with 6-pin Pico-style M8 connector
- Degree of protection IP50 NEMA 1
- Technical compatibility with plastic fiber optic cable
- Display LED 4 digits display
- Wavelength 680 nm
- Contents mounting bracket M3 hardware
- Net Height (mm) 68.1 mm
- Analog outputs 1 x analog output (0-10Vdc)
- Ambient air temperature for operation -10...+55 °C
- Net Depth (mm) 35.9 mm
- Compliant with standard(s) cURus CE
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of D10UNFPQ on Powermatic Associates is $379.00. Order now.
About the product
Banner Engineering D10UNFPQ is an amplifier for sensor applications, designed for DIN rail mounting. It features a net width of 11 mm and is constructed with a thermoplastic housing and a polycarbonate (PC) cover. This part operates within an ambient air temperature range of -10 to +55 °C and offers one analog output (0-10Vdc) alongside two digital outputs (NPN transistor). It provides a degree of protection rated at IP50 NEMA 1 and emits visible red light with a wavelength of 680 nm. The D10UNFPQ, part of the D10 Expert series, boasts a rapid response time of 50µs / 0.00005 s and is designed with TEACH mode for high-performance fiber optic sensor amplification. It comes pre-equipped with a 6-pin Pico-style M8 connector for connectivity and requires a supply voltage of 15Vdc-24Vdc. The unit's shape is rectangular, with net dimensions of 36 mm in depth and 69 mm in height.
