CSB-M1250M1250-T Banner Splitters

CSB-M1250M1250-T on Powermatic Associates
Banner

Part#:CSB-M1250M1250-T

Manufacturer:Banner

Category:Splitters

Alt. Part#:807397

Product Lifecycle:Active

Get a quick Quote!

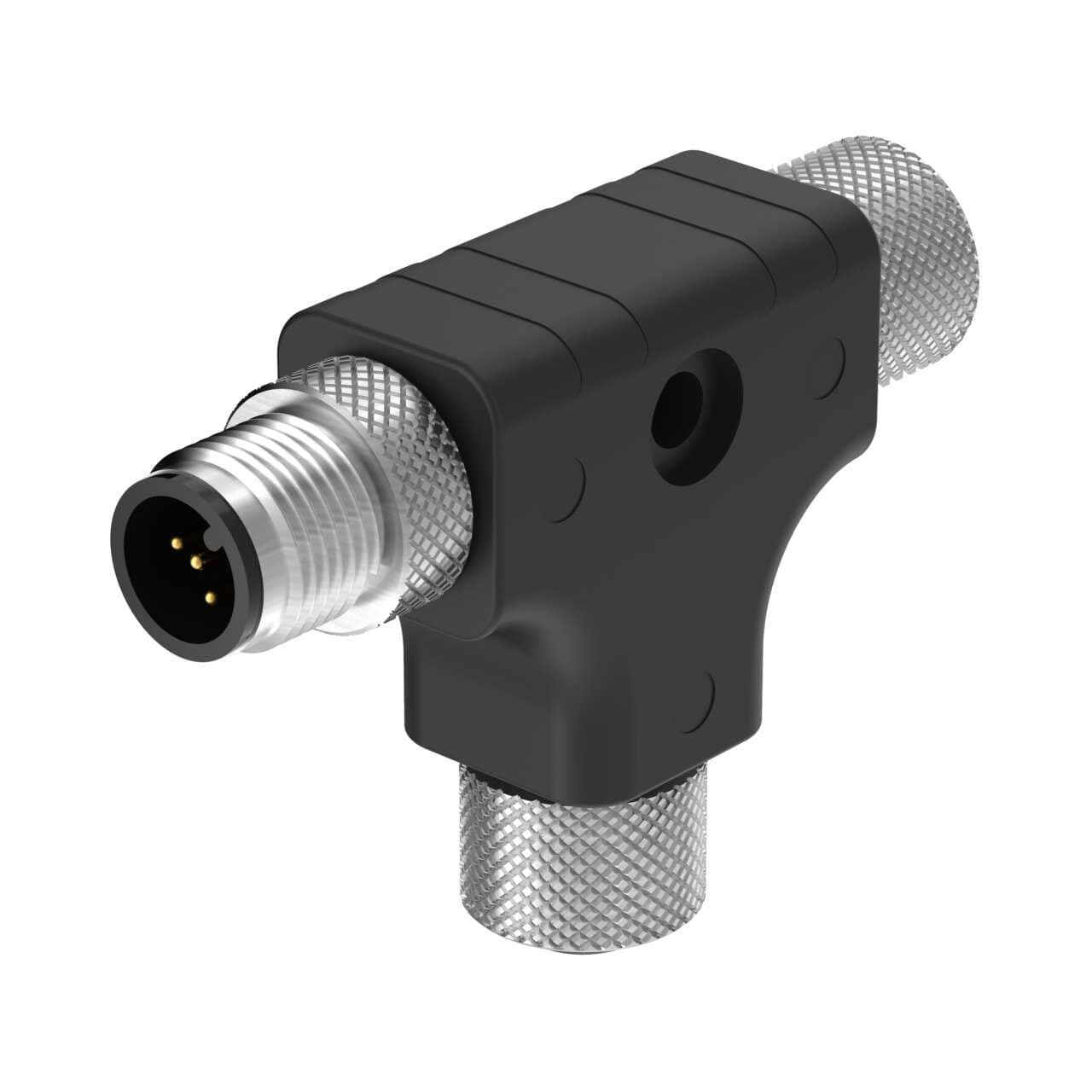

M12 T Splitter - Passive; 5-pin Female Trunk Straight; 5-pin Female T Branch (1); 5-pin Male T Branch(1); Black TPU Splitter Junction

About the manufacturer: Banner is one of the manufacturers that offers Splitters that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the CSB-M1250M1250-T Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    36.28736 g
  • Country Of Origin
    TW
  • Oil/Grease Resistant
    No
  • Splitter Function
    Parallel
  • Splitter Branches: AWG
    22, 22
  • Feature: Hazardous Area
    No
  • Splitter Branches: Number of Conductors
    5, 5
  • Splitter Branches: Orientation
    Straight, Straight
  • Splitter Branches: Coupling Method
    M12 Single Key, M12 Single Key
  • Primary AWG
    22
  • Primary Gender
    Male
  • Primary Orientation
    Straight
  • Primary Coupling Method
    M12 Single Key
  • Primary Connector Type
    EURO
  • IP Rating
    IP67
  • Voltage Rating (V)
    250 V ac/300 V dc
  • Minimum Temp. (°C)
    -40
  • Outside Cable Diameter (mm)
    N/A
  • Coupling Material/Color
    Nickel Plated Brass
  • Number of Connectors
    3
  • Trunk Length (m)
    No Trunk
  • Connector Body Material/Color
    PUR Black
  • Splitter Branches Length (m)
    0, 0
  • Splitter Branches: Connector Type
    M12F, M12F
  • Primary Number of Conductors
    5
  • Maximum Temp. (°C)
    105
  • Current Rating (A)
    4.0
  • Shield/No Shield
    No Shield
  • Number of Contacts
    15

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

CSB-M1250M1250-T Description

Banner Engineering CSB-M1250M1250-T is a T-shaped splitter connector designed for splitting connections within automation systems. It features a 5-pin Euro-style M12 female connector on the trunk in a straight orientation, accompanied by another 5-pin Euro-style M12 female connector and a 5-pin Euro-style M12 male connector on the T branch, facilitating versatile connection configurations.

Manufacturer warranty

$35.00

Request a quote, and we will send availability within minutes.

Select Qty:

$35.00

$35.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
