BTETA1.58SM600 Banner Fiber Optic Sensors
Part#:BTETA1.58SM600
Alt. Part#:93883
Manufacturer:Banner
Category:Fiber Optic Sensors
Product Lifecycle:Active
Product description

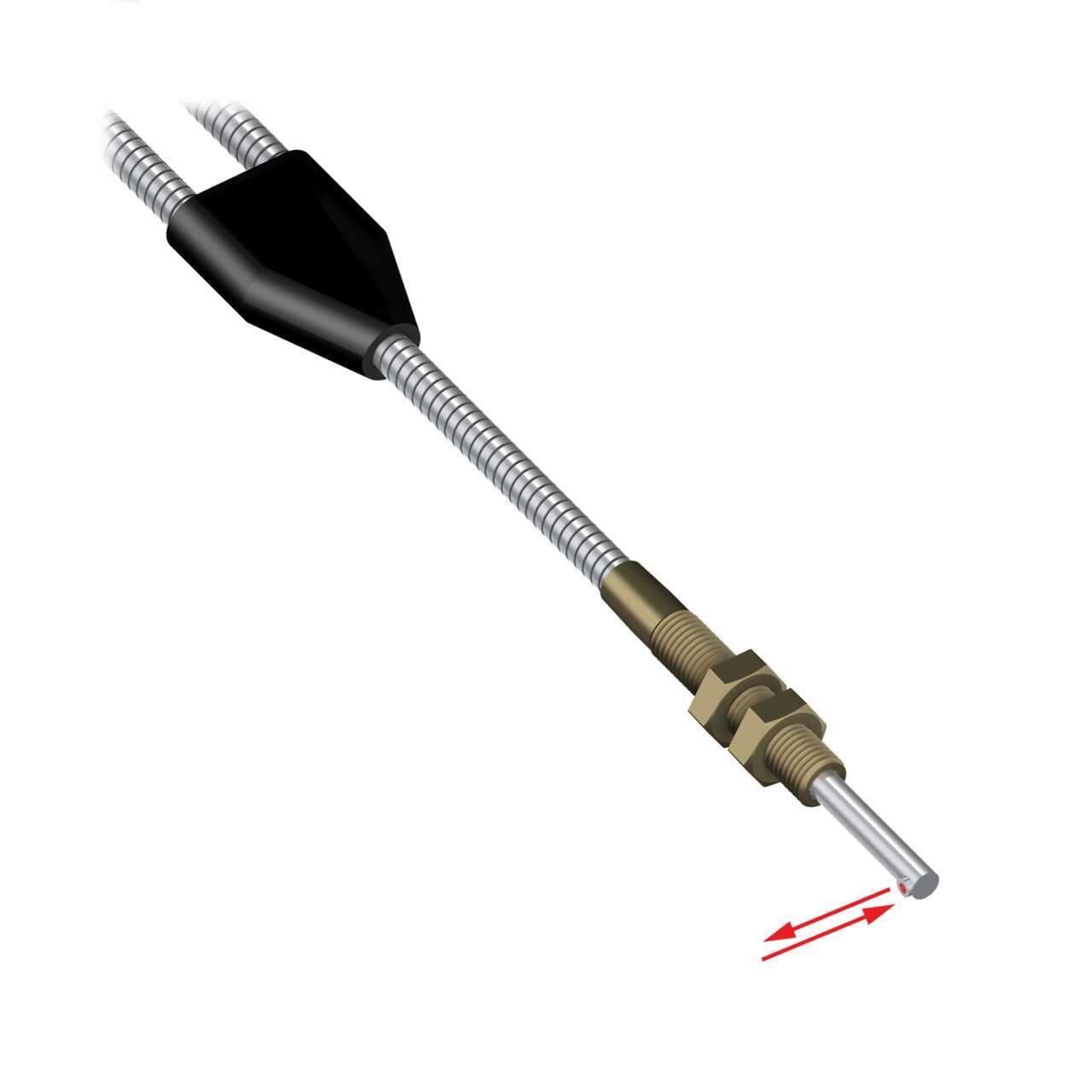

Glass Fiber; Bifurcated 0.09 in Bundle; Tight Right-Angle Tip; Stainless Sheathing 96 in; Max.Operating temp. at tip 600F
Product Details
- Weight 127.00576 g
- Country Of Origin US
- Max Distance: DF-G1 (mm) No Data
- Fiber Sensing End Size - Mounting Area #5/16-24 thread
- Tariff Fiber Meters (fbm) 4279.4
- Termination Type Glass Fiber Sensors
- Feature: Chemical Resistant No
- Application: Vacuum Feed Through None
- Retractile No
- Core Diameter (mm) 2.3
- Fiber Sheathing Material (Jacket) Stainless Steel Monocoil
- Max Distance: DF-G2 (mm) No Data
- Max Distance: DF-G3 (mm) No Data
- Measured Max Distance (mm) No Data
- Application: Liquid Level No
- Feature: Small Object Detection No
- Max Temp ( °C) 315
- Integrated Lens No
- Termination Terminated
- Minimum Bend Radius (mm) 25
- Sensing End Segment 3 Sideview
- Flex Relief No
- Sensing End Segment 2 Probe
- Fiber Sensing End Size 5.3 mm
- Sensing End Segment 1 Thread
- Fiber Length (m) 2.438
- Fiber Sensing End Tip Sideview
- Fiber Optic Type Glass
- Sensing End Material (Specific) Stainless Steel
- Sensing Mode (General) Diffuse
- Beam Exit Right Angle
- Quantity Included 1
- Sensing Mode (Detailed) Reflective
- Housing Style Round
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BTETA1.58SM600 on Powermatic Associates is $323.00. Order now.
About the product
Banner Engineering BTETA1.58SM600 is a fiber sensor belonging to the Glass fiber series, designed with a diffuse-reflective system and bifurcated fiber side/right-angled sensing. It features a brass sensing end, glass fiber, and a stainless steel monocoil construction. The sensor has a 2.3mm fiber core diameter and comes in a cylindrical (threaded) end tip shape. It has a length of 8ft / 2.44m and is capable of operating in ambient air temperatures up to +315°C.
