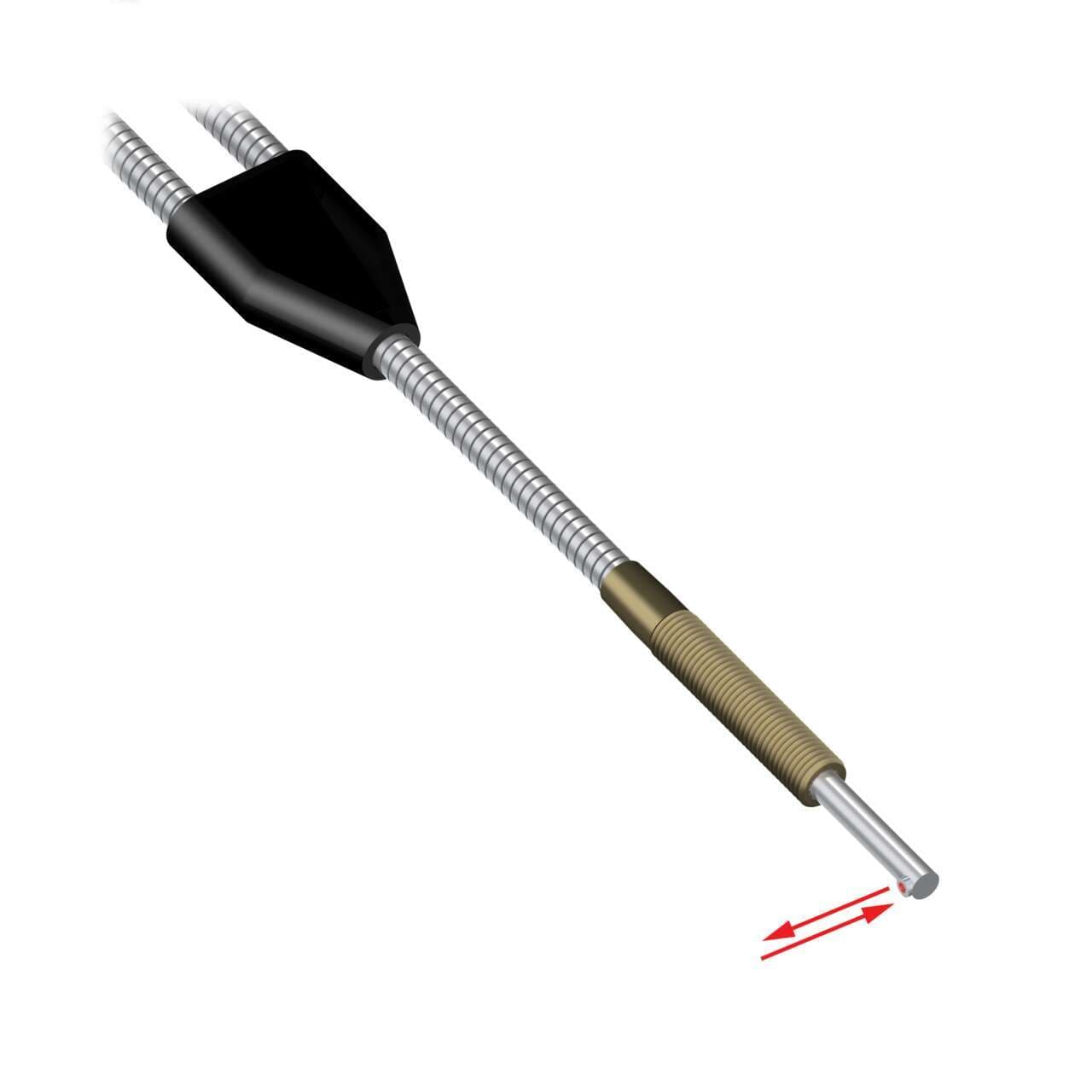

BTETA1.53S Banner Fiber Optic Sensors

Product Details

• Weight
  123.377024 g
• Country Of Origin
  US
• Fiber Sensing End Size - Mounting Area
  #5/16-24 thread
• Tariff Fiber Meters (fbm)
  4814
• Max Distance: DF-G3 (mm)
  No Data
• Max Distance: DF-G1 (mm)
  No Data
• Max Distance: DF-G2 (mm)
  No Data
• Termination Type
  Glass Fiber Sensors
• Measured Max Distance (mm)
  No Data
• Application: Vacuum Feed Through
  None
• Application: Liquid Level
  No
• Feature: Small Object Detection
  No
• Feature: Extended Range
  No
• Feature: Chemical Resistant
  No
• Integrated Lens
  No
• Max Temp ( °C)
  249
• Termination
  Terminated
• Flex Relief
  No
• Core Diameter (mm)
  2.3
• Retractile
  No
Sensing End Segment 2
Probe
Minimum Bend Radius (mm)
25
Fiber Length (m)
2.74
Sensing End Segment 3
Sideview
Sensing End Segment 1
Thread
Fiber Sensing End Size
5.3 mm
Fiber Sheathing Material (Jacket)
Stainless Steel Monocoil
Sensing Mode (Detailed)
Reflective
Fiber Sensing End Tip
Sideview
Beam Exit
Right Angle
Fiber Optic Type
Glass
Quantity Included
1
Sensing Mode (General)
Diffuse
Sensing End Material (Specific)
Stainless Steel
Housing Style
Round
Primary brand
Banner Engineering
Design
diffuse mode Bifurcated fiber
Product series / family name
Fiber sensors
Sub-range name
Glass fiber series
Thread size
5/16"
Order code / Manufacturer SKU
21496
Main function
Fiber sensor
Functions
Fiber optic sensor
Length
3ft / 910mm
Diameter
25.4mm probe 2.3mm fiber core
Shape
Cylindrical (threaded) end tip
Material
Brass sensing end Glass fiber stainless flexible tubing (fiber sheath)
Ambient air temperature for operation
+249 °C
