BAT66ST5TA-VL Banner Fiber Optic Sensors

Name: BAT66ST5TA-VL
Brand: Banner
Price: 224 USD
Availability: BackOrder

Part#:BAT66ST5TA-VL

Alt. Part#:96010

Manufacturer:Banner

Category:Fiber Optic Sensors

Product Lifecycle:Active

Product description

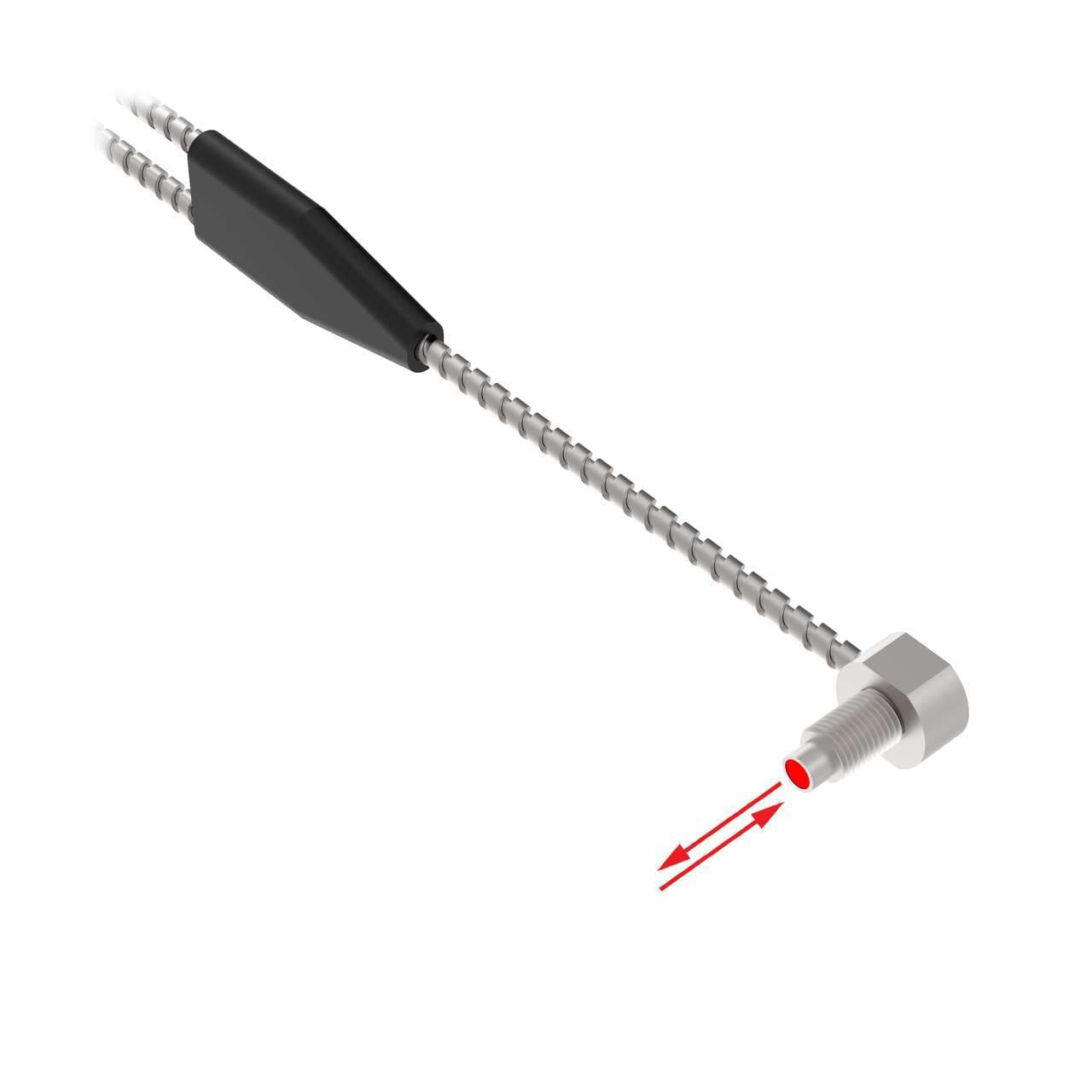

Glass Fiber; Bifurcated 0.06 in Bundle; M6 Threaded Right-Angle Tip; Stainless Sheathing 2 m Long; Terminated For Plastic Fiber Sensors; Vantage Line

Product Details

Weight
90.7184 g
Country Of Origin
US
Application: Liquid Level
No
Max Distance: DF-G1 (mm)
200
Max Distance: DF-G2 (mm)
324
Max Distance: DF-G3 (mm)
1553
Measured Max Distance (mm)
200
Termination Type
Plastic Fiber Sensors
Fiber Sensing End Size - Mounting Area
M6
Tariff Fiber Meters (fbm)
1524
Integrated Lens
No
Application: Vacuum Feed Through
None
Max Temp ( °C)
249
Feature: Extended Range
No
Feature: Chemical Resistant
No
Feature: Small Object Detection
No
Minimum Bend Radius (mm)
25
Termination
Terminated
Flex Relief
Yes
Core Diameter (mm)
1.5

Retractile

Fiber Length (m)

Sensing End Segment 1

Sideview

Sensing End Segment 2

Thread

Fiber Sensing End Size

4.0 mm

Sensing End Segment 3

Ferrule

Fiber Optic Type

Glass

Fiber Sensing End Tip

Ferrule

Fiber Sheathing Material (Jacket)

Stainless Steel Monocoil

Beam Exit

Right Angle

Max Range: DF-G3 (mm)

>1m - <=3m

Quantity Included

Sensing Mode (Detailed)

Reflective

Housing Style

Round

Sensing Mode (General)

Diffuse

Sensing End Material (Specific)

Stainless Steel

Product series / family name

Fiber sensors

Sub-range name

Glass fiber series

Material

Stainless steel sensing end Glass fiber stainless flexible tubing (fiber sheath)

Main function

Fiber sensor

Shape

Cylindrical (threaded) end tip

Design

diffuse-reflective system Bifurcated fiber

Thread size

Equivalent to

BAT66ST5TAVL

Primary brand

Banner Engineering

Functions

Fiber optic sensor

Diameter

1.5mm fiber core

Ambient air temperature for operation

+249 °C

Length

6ft / 2m

Order code / Manufacturer SKU

96010

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BAT66ST5TA-VL on Powermatic Associates is $224.00. Order now.

About the product

Banner Engineering BAT66ST5TA-VL is a fiber sensor belonging to the Glass fiber series, designed with a diffuse-reflective system. It features a flexible, bifurcated fiber with side / right-angled sensing for versatile installation options. The sensing end is made of stainless steel, while the fiber itself is encased in stainless flexible tubing for durability. With a 1.5mm fiber core diameter, this sensor has a cylindrical (threaded) end tip and a total length of 6ft / 2m. It is capable of operating in ambient air temperatures up to +249°C.

BAT66ST5TA-VL Related Documents

BAT6 SERIES GLASS FIBER TIGHT ANGLE M6 THREAD VL-1630954961259.stp BAT6 SERIES GLASS FIBER TIGHT ANGLE M6 THREAD VL-1630954961273.pdf
